Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

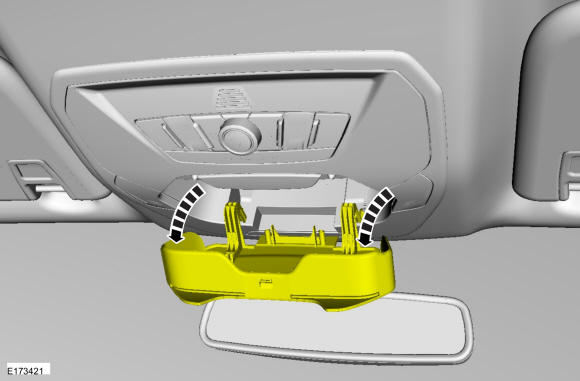

Open the sun glasses bin.

Courtesy of FORD MOTOR COMPANY
NOTE: Sun glasses bin shown removed for clarity.

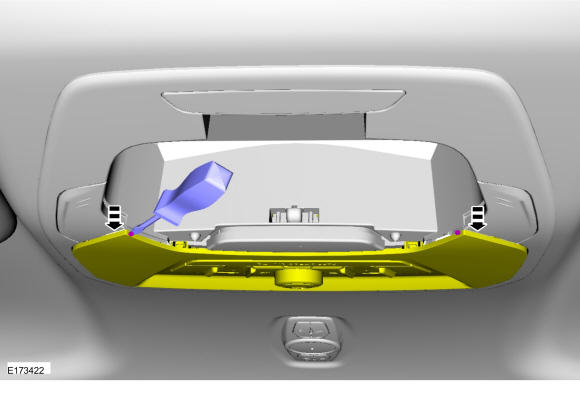

Using a screwdriver, pry both corners of the switch bezel down. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

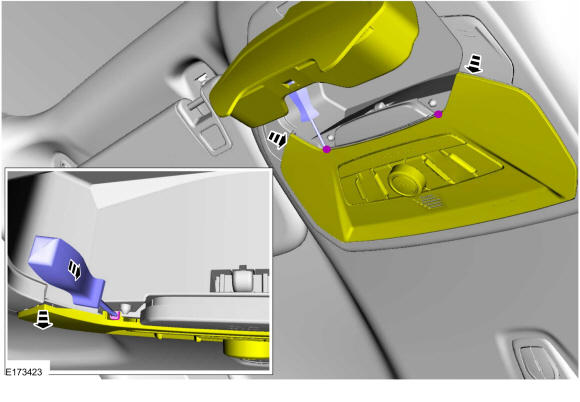

Using a screwdriver, push inward on both sides on the switch panel inner tabs to release the switch panel. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

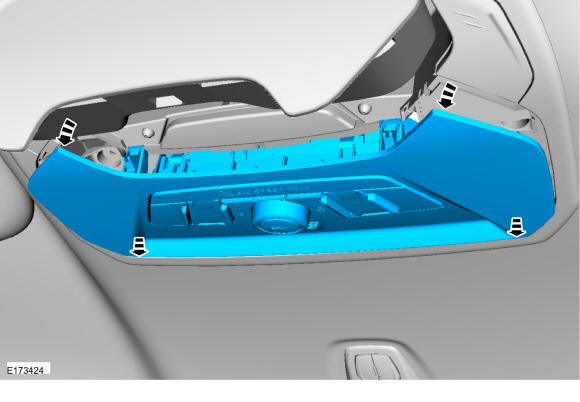

Remove the switch panel.

Courtesy of FORD MOTOR COMPANY

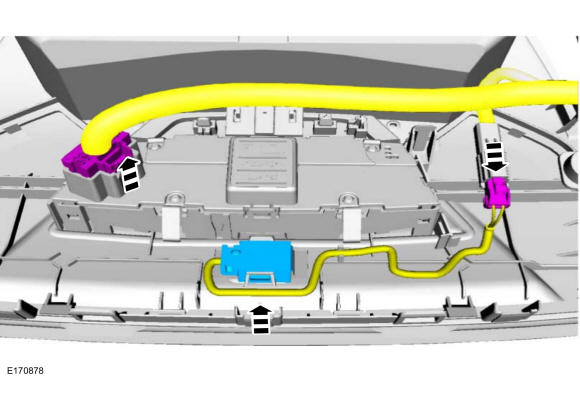

Disconnect the electrical connectors and remove the microphone.

Courtesy of FORD MOTOR COMPANY

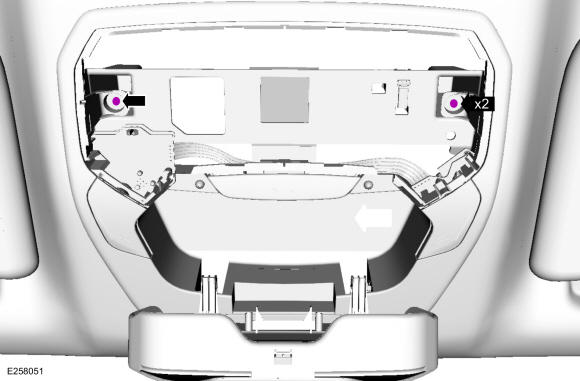

If equipped. Remove the torx screws.

Courtesy of FORD MOTOR COMPANY

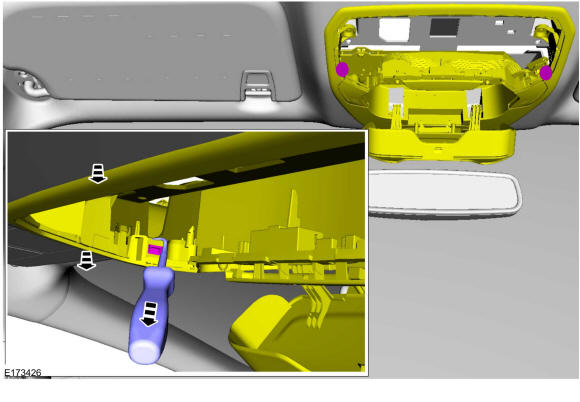

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

Courtesy of FORD MOTOR COMPANY

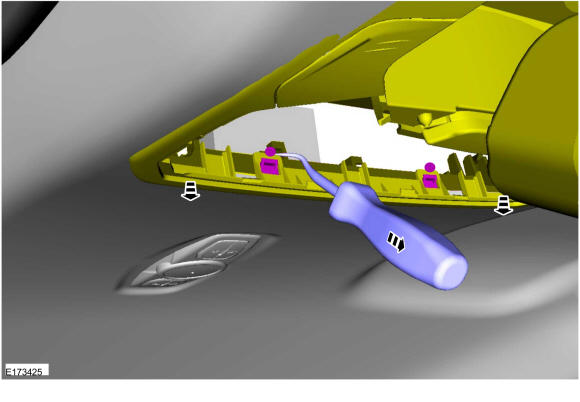

Using a suitable tool release the side snap tabs on both sides.

Courtesy of FORD MOTOR COMPANY

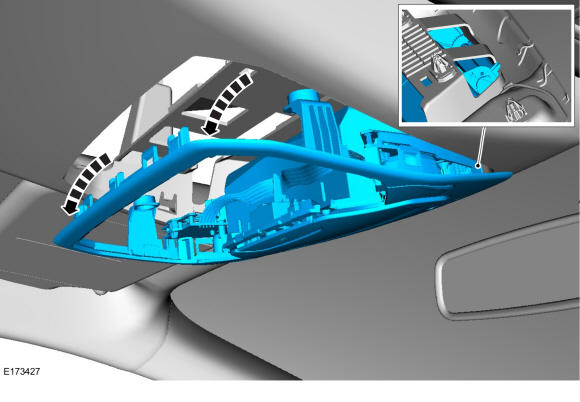

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.

Courtesy of FORD MOTOR COMPANY

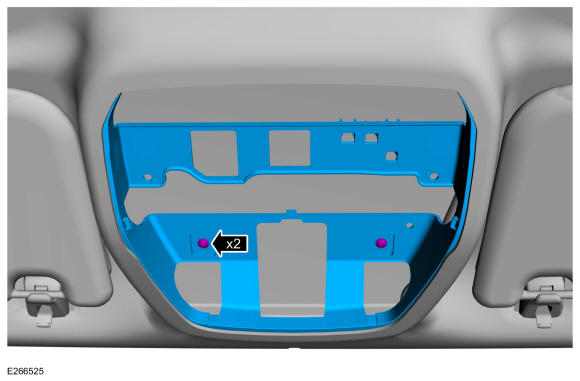

Remove the screws and the overhead console bracket.

Courtesy of FORD MOTOR COMPANY
