Instrument Panel: Removal

All vehicles

NOTE: Removal steps in this procedure may contain installation details.
  1. multimedia:A supplement to the article is available.
  2. WARNING: WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  3. Evacuate and recover the A/C refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
  4. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

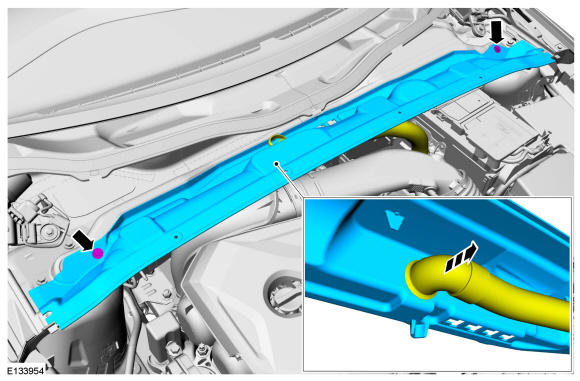

  5. Remove the screws and the cowl panel.

    • NOTE: If equipped.

      Disconnect the hose.

    GFD358790Courtesy of FORD MOTOR COMPANY

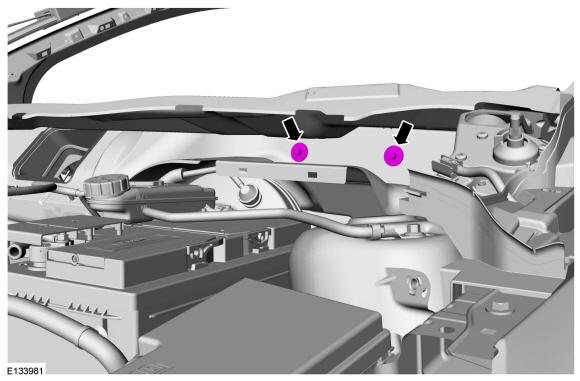

  6. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD358791Courtesy of FORD MOTOR COMPANY

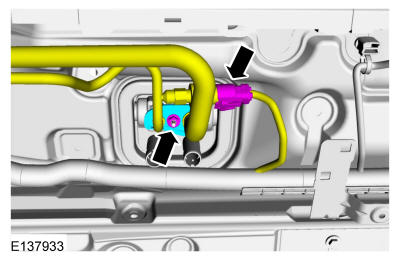

  7. NOTE: Make sure all openings are sealed.

    Remove the evaporator pipe nut and position the flange and pipe aside.

    • NOTE: If equipped.

      Disconnect the electrical connector.

      Torque: 71 lb.in (8 Nm)

    GFD358800Courtesy of FORD MOTOR COMPANY

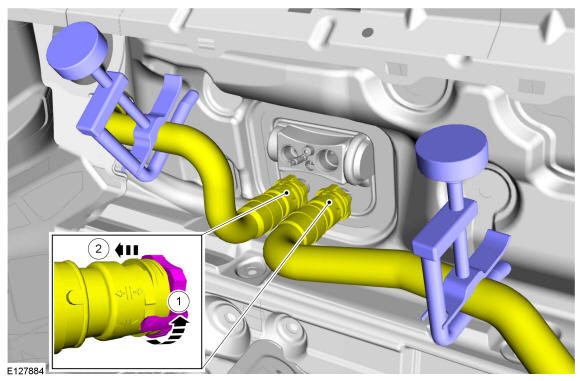

  8. NOTE: Make sure all openings are sealed.

    Clamp and disconnect the heater hoses. Use the General Equipment: Hose Clamp(s)

    GFD358801Courtesy of FORD MOTOR COMPANY
  9. Remove both front doors. Refer to: Front Door .
  10. Remove the floor console. Refer to: Floor Console - Vehicles Without: Center Armrest . Refer to: Floor Console - Vehicles With: Center Armrest .
  11. WARNING: WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    Turn the ignition off, wait at least one minute.

  12. Remove the automatic transmission selector lever or the manual transmission gearshift lever. Refer to: Selector Lever Assembly .

    13. Manual transmission only

  13. Remove the manual transmission gear shift lever bracket.

    Torque: 80 lb.in (9 Nm)

    GFD358802Courtesy of FORD MOTOR COMPANY

    14. All vehicles

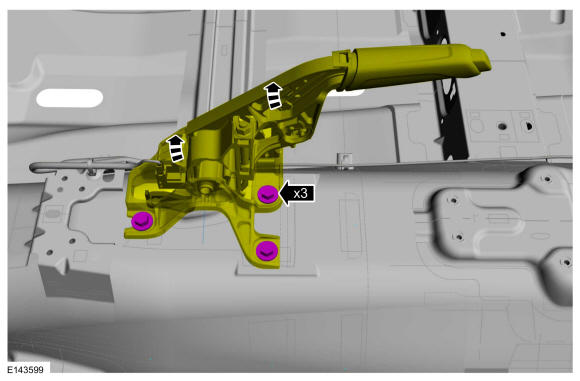

  14. Remove the bolts and position the parking brake control aside.

    Torque: 26 lb.ft (35 Nm)

    GFD358803Courtesy of FORD MOTOR COMPANY
  15. On both sides, Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .

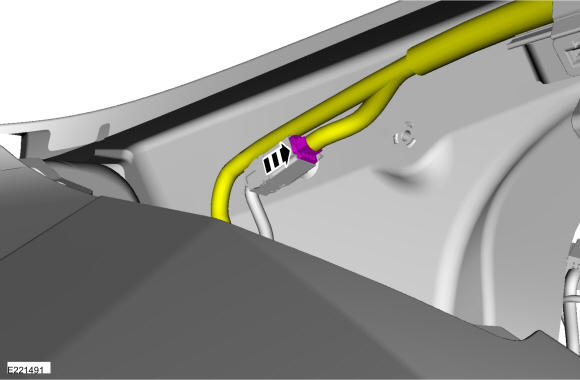

  16. Disconnect the electrical connector at the RH A-pillar.
    GFD358804Courtesy of FORD MOTOR COMPANY
  17. Position the front door weatherstrip aside, release the clips and remove the RH instrument panel finish panel.
    GFD358443Courtesy of FORD MOTOR COMPANY
  18. Remove the retainers and the RH insulation panel.
    GFD358442Courtesy of FORD MOTOR COMPANY

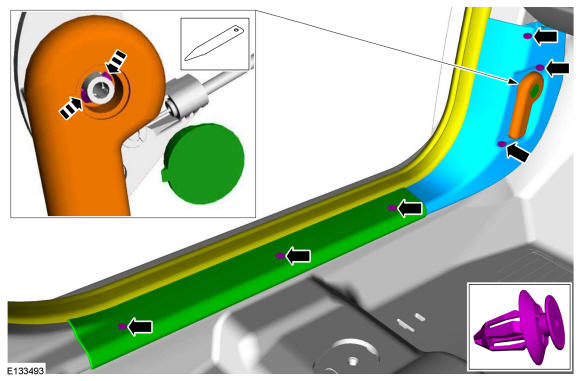

    • Position the weatherstrip aside.

    • Release the clips and remove the LH front door scuff plate panel.

    • Remove the hood latch release handle access cover, release the clips and remove the hood latch release handle.

    • Release the clips and remove the lower LH cowl trim panel.

    GFD358805Courtesy of FORD MOTOR COMPANY

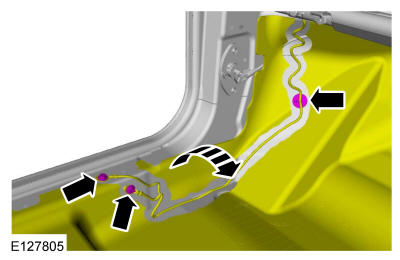

    • Position the LH front carpet aside.

    • Detach the retainer, remove the bolts and position the wiring harness aside.

    GFD358806Courtesy of FORD MOTOR COMPANY

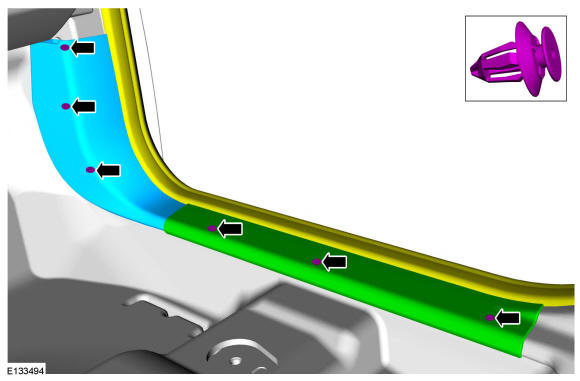

    • Position the weatherstrip aside.

    • Release the clips and remove the RH front door scuff plate panel.

    • Release the clips and remove the lower RH cowl trim panel.

    GFD358807Courtesy of FORD MOTOR COMPANY

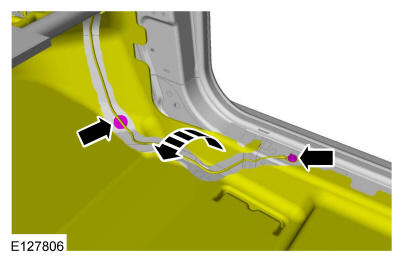

    • Position aside the RH front carpet.

    • Detach the retainer, remove the bolt and position the wiring harness aside.

    GFD358808Courtesy of FORD MOTOR COMPANY

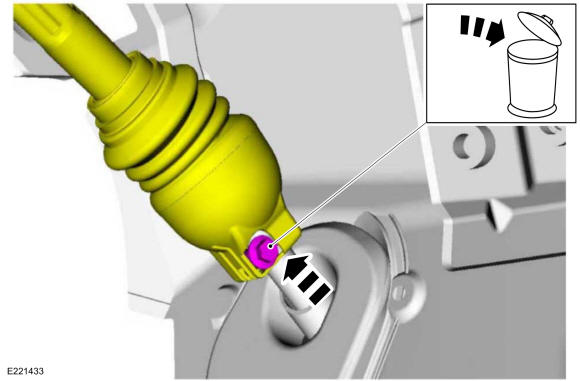

  23. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. REFER to Clockspring .

    Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    Torque: 21 lb.ft (28 Nm)

    GFD358809Courtesy of FORD MOTOR COMPANY

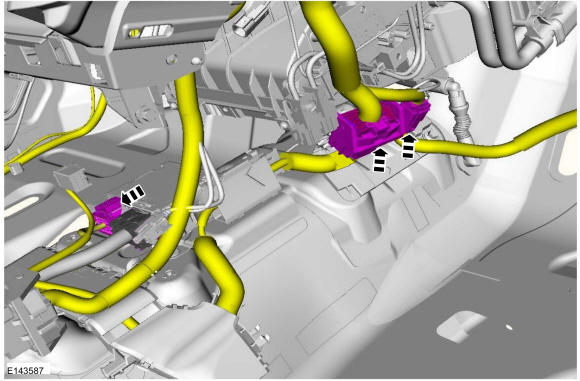

  24. Disconnect the electrical connectors.
    GFD358810Courtesy of FORD MOTOR COMPANY

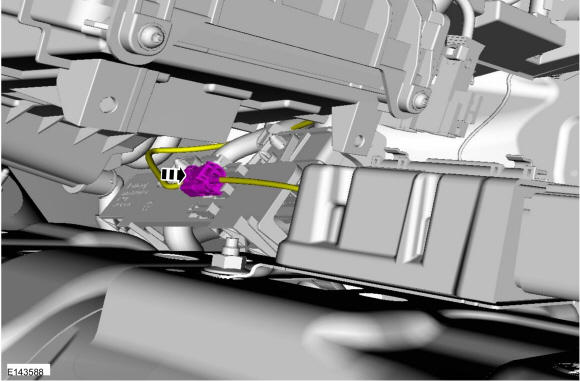

  25. NOTE: Base audio shown, Premium and Sony® sound similar.

    Disconnect the electrical connector.

    GFD358811Courtesy of FORD MOTOR COMPANY

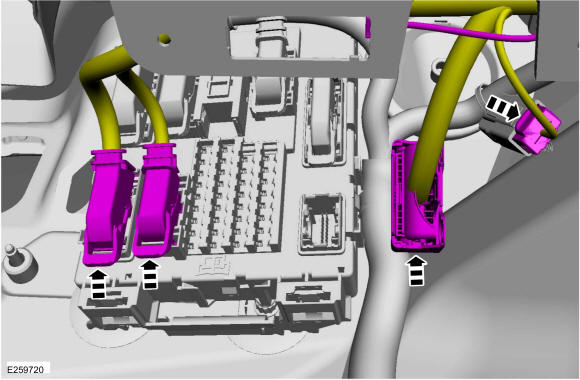

  26. Disconnect the BCM electrical connectors.
    GFD358812Courtesy of FORD MOTOR COMPANY

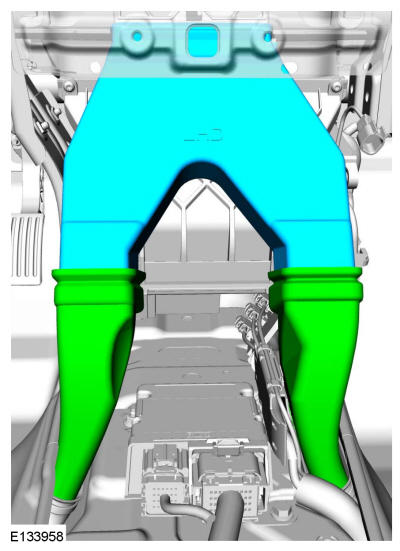

  27. Remove the HVAC ducts.
    GFD358793Courtesy of FORD MOTOR COMPANY

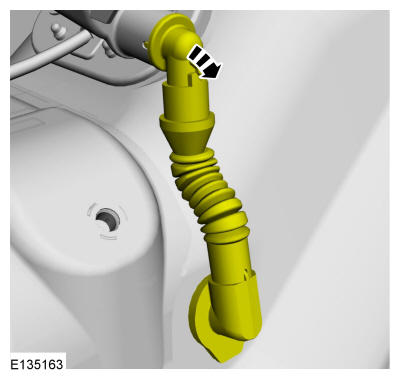

  28. Detach and position the HVAC drain tube aside.
    GFD358813Courtesy of FORD MOTOR COMPANY

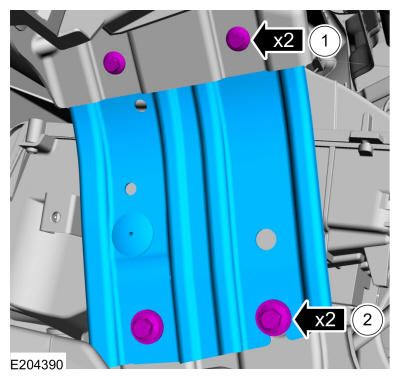

    1. Remove the bolts.

      Torque: 89 lb.in (10 Nm)

    2. Remove the bolts and the instrument panel center brace.

      Torque: 18 lb.ft (25 Nm)

    GFD358814Courtesy of FORD MOTOR COMPANY

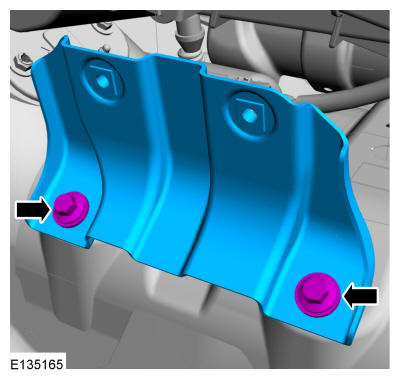

  30. Remove the bolts and the instrument panel lower brace.

    Torque: 18 lb.ft (25 Nm)

    GFD358815Courtesy of FORD MOTOR COMPANY

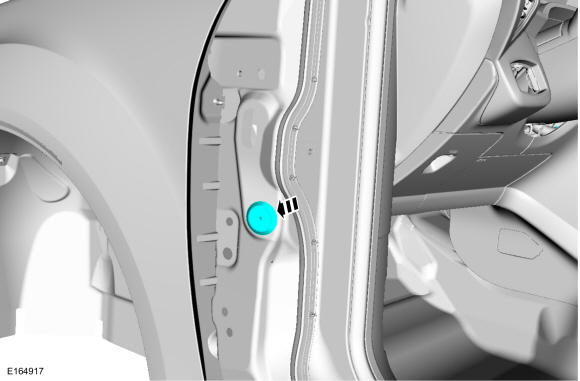

  31. NOTE: LH side shown, RH side similar.

    Remove the in-vehicle cross beam to cowl bolt cover.

    GFD358816Courtesy of FORD MOTOR COMPANY

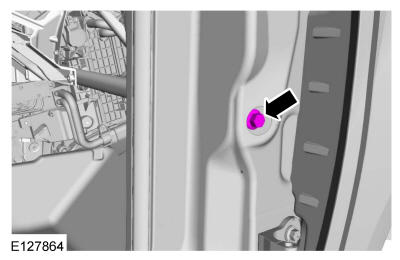

  32. NOTE: RH side shown, LH side similar.

    On both sides. Remove the A-pillar to in-vehicle cross beam support bolt.

    Torque: 30 lb.ft (40 Nm)

    GFD358792Courtesy of FORD MOTOR COMPANY

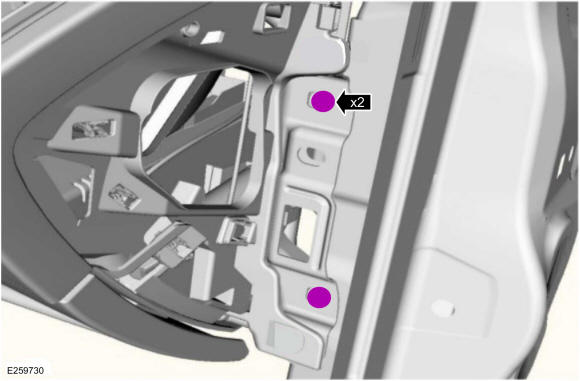

  33. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out the following steps.
    NOTE: RH side shown, LH side similar.
    NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

    Remove the instrument panel support bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD358817Courtesy of FORD MOTOR COMPANY
  34. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel from the vehicle.

  35. Rotate the instrument panel face down and remove through the LH front door opening.
