In-Vehicle Crossbeam: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Remove the cowl panel grille. Refer to: Cowl Panel Grille .
Disconnect the hose, remove the screws and the cowl panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .
Remove both front doors. Refer to: Front Door .
On both sides. Remove the A-pillar to in-vehicle crossbeam support bolt.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the HVAC ducts.

Courtesy of FORD MOTOR COMPANY

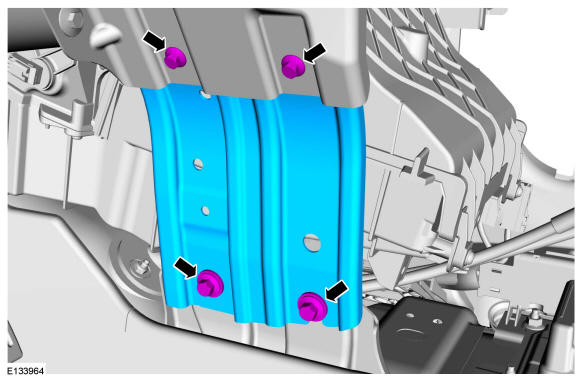

Remove the bolts and the instrument panel center brace.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

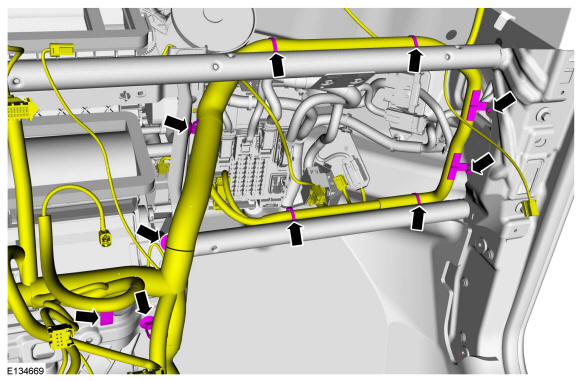

Detach the wiring harness retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

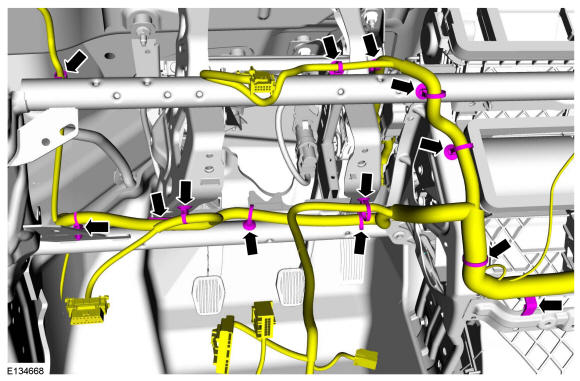

Detach the wiring harness retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

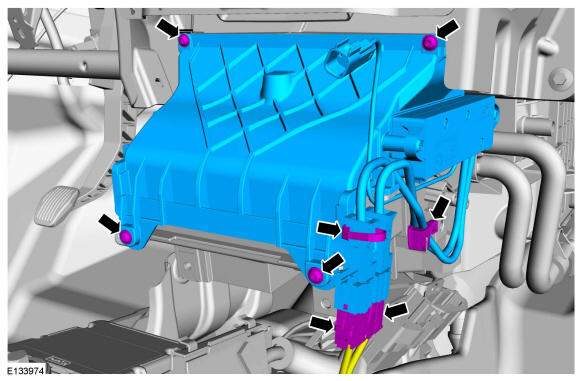

- Disconnect the electric connectors and detach the wiring harness retainers.
- Remove the screws and the air plenum bezel.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

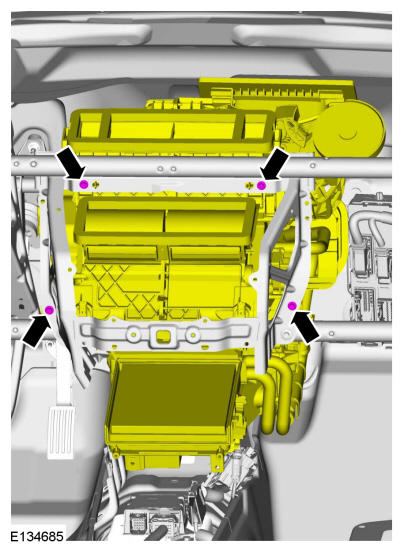

Remove the climate control housing bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damaging the in-vehicle cross beam, an assistant is required when carrying out the following steps.

NOTE: Remove the bolts from one side completely and support the in-vehicle cross beam before removing the bolts from the opposite side

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the in-vehicle cross beam or damage to the components may occur.

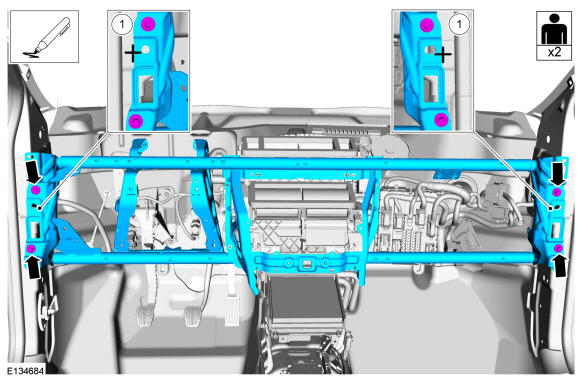

With the help of an assistant. Remove the bolts and the in-vehicle crossbeam from the vehicle.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
