Auxiliary Power Point: Removal

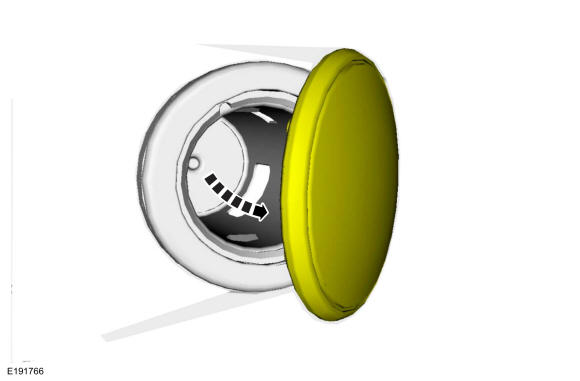

  1. Open the power point cover.
    GFD358779Courtesy of FORD MOTOR COMPANY

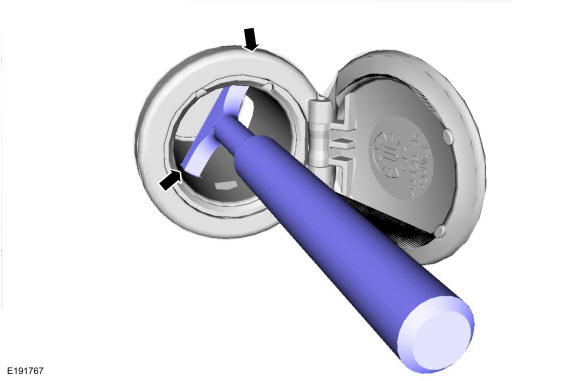

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD358780Courtesy of FORD MOTOR COMPANY

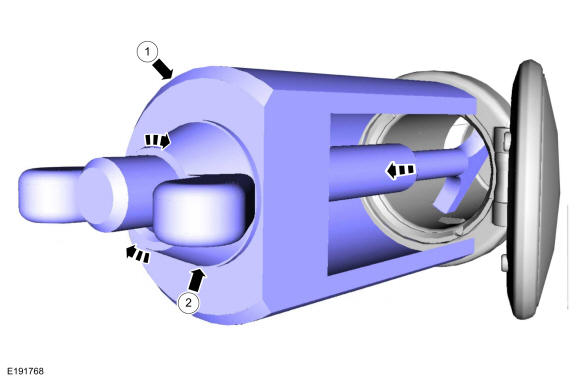

    • Install the receiver cup.

    • Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.

    GFD358781Courtesy of FORD MOTOR COMPANY
  4. Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD358782Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD358783Courtesy of FORD MOTOR COMPANY
