Fuel Tank Draining
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM |
|
|---|---|
Draining
-
NOTE: Do not remove the hose clamp at the filler neck hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

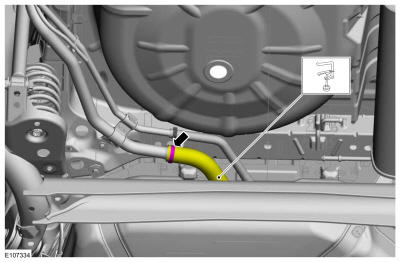

Release the clamp and position the fuel tank filler pipe hose aside. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

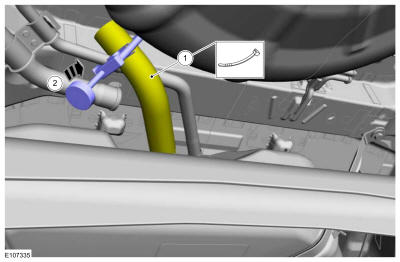

- Secure the fuel tank filler pipe hose above the fuel level.
- Insert a fuel drain tube into the fuel tank filler pipe hose, attach the Fuel Storage Tanker and drain as much fuel as possible from the fuel tank. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
