Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
- Disconnect the crankcase breather tube.
 Courtesy of FORD MOTOR COMPANY
|
- Disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
The O-ring seals are to be reused unless damaged.
NOTE:
Note the position of the components before removal.

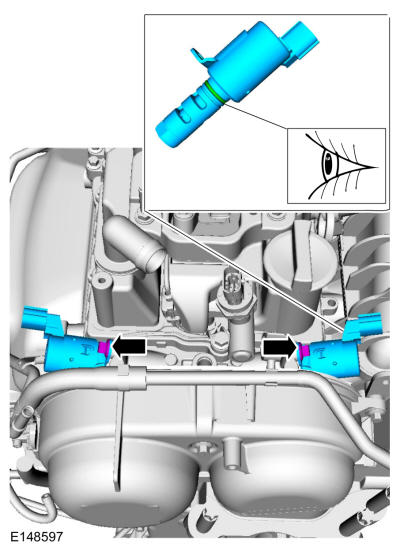

Remove the bolts and the VCT oil control solenoids.
 Courtesy of FORD MOTOR COMPANY
|
