Variable Camshaft Timing (VCT) Oil Control Solenoid: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that the components are installed to the position noted before removal.

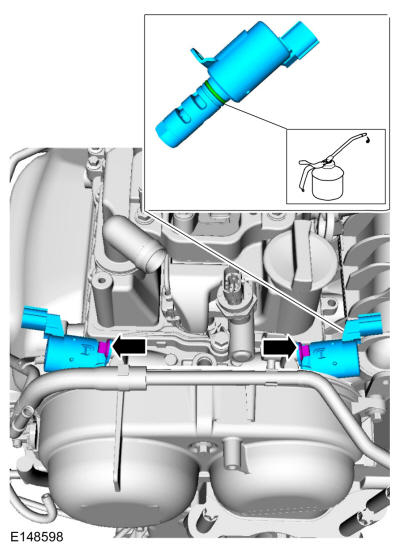

- Lubricate the o ring with clean engine oil.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Install the VCT oil control solenoids and tighten the bolts.
Torque: 71 lb.in (8 Nm)
- Lubricate the o ring with clean engine oil.

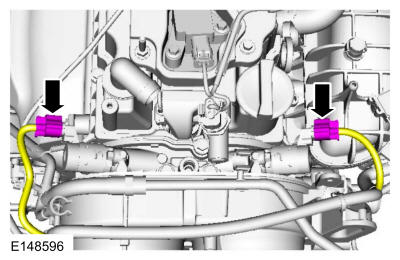

- Connect the electrical connectors.

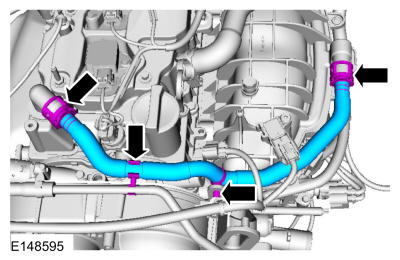

- Connect the crankcase breather tube.

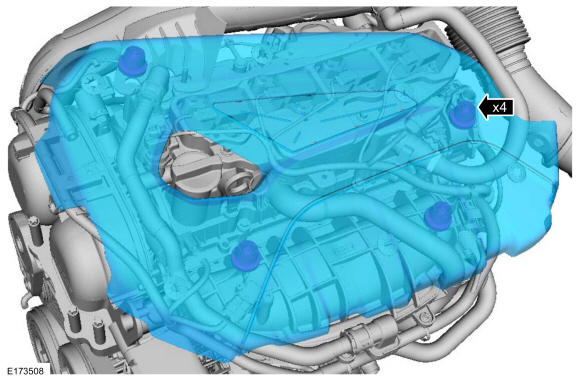

- Install the engine appearance cover.
