Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

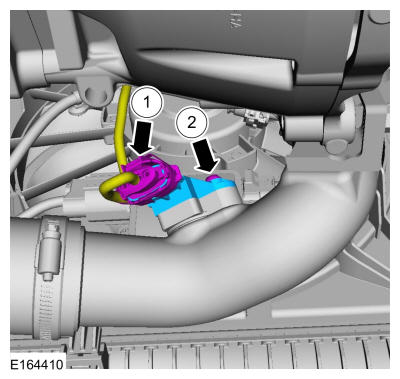

- Disconnect the electrical connector.
- Remove the retainer and the turbocharger boost pressure sensor.
Torque: 53 lb.in (6 Nm)
