Rear Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

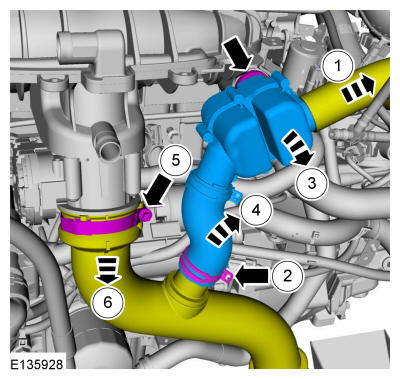

- Release the hose clamp and disconnect the hose from the crankcase vent oil separator.

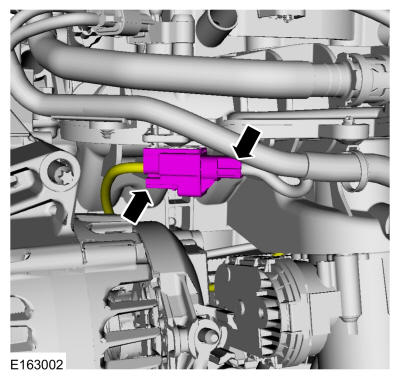

- Disconnect the KS electrical connector.
-
NOTE: Note the position of the component before removal. The KS must be installed in the 10 o'clock position.

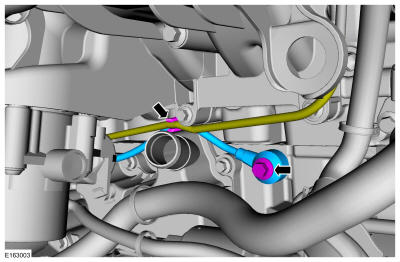

Remove the bolt and the KS.
Torque: 159 lb.in (18 Nm)
