Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

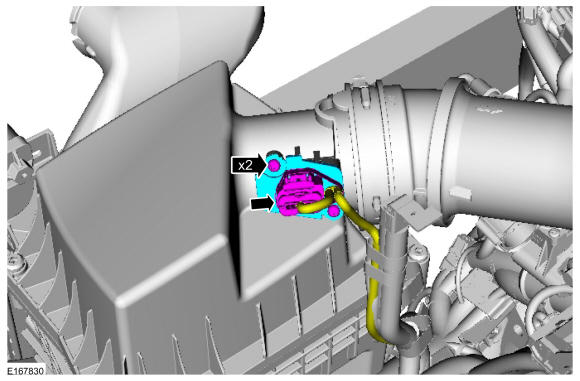

  1. Disconnect the electrical connector, remove the retainers and the IAT sensor.

    Torque: 44 lb.in (5 Nm)

GFD301067Courtesy of FORD MOTOR COMPANY
