Fuel Rail Pressure (FRP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

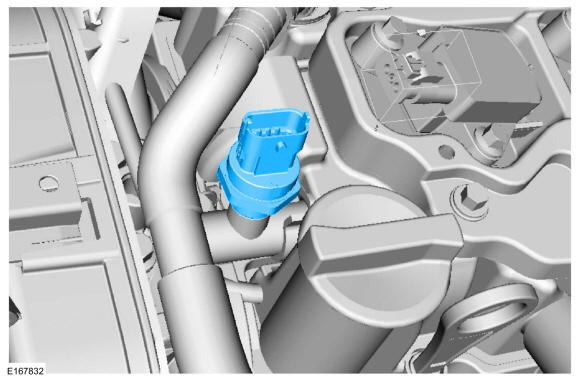

    • Install and tighten the FRP sensor.

      Torque: 24 lb.ft (32.5 Nm)

    GFD301066Courtesy of FORD MOTOR COMPANY

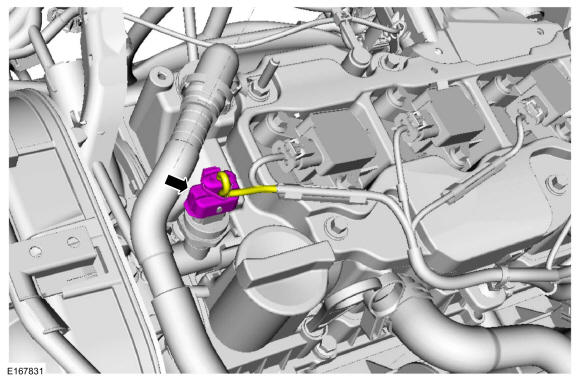

  2. Connect the FRP sensor electrical connector.
    GFD301065Courtesy of FORD MOTOR COMPANY
  3. Install engine appearance cover.
    GFD300978Courtesy of FORD MOTOR COMPANY
  4. Refer to: Battery Disconnect and Connect .
