Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

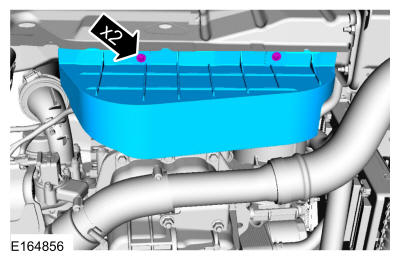

- Remove the retainers and the heat shield.

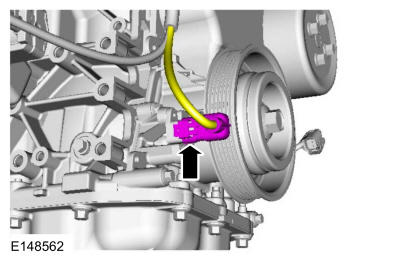

- Disconnect the CKP sensor electrical connector.
-

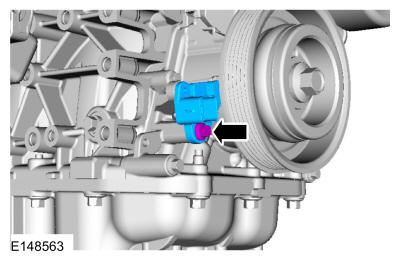

- Remove the bolt.
Torque: 71 lb.in (8 Nm)
- Remove the CKP sensor.
- Remove the bolt.
