Camshaft Position (CMP) Sensor RH: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

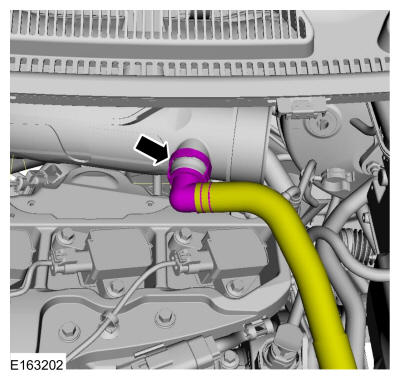

- Disconnect the quick release coupling from the air cleaner outlet pipe.

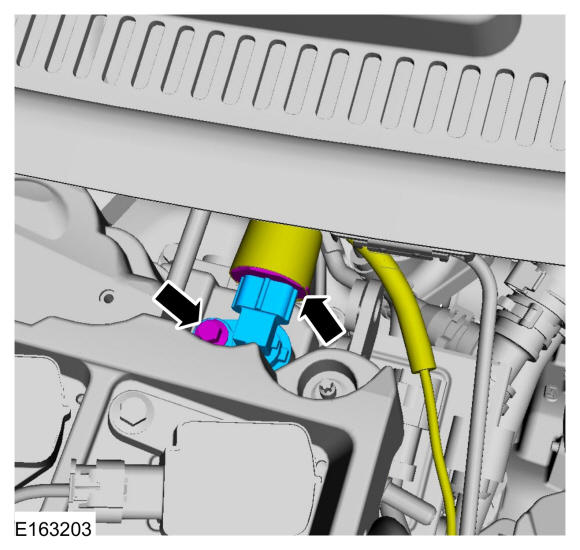

- Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor RH.
Torque: 80 lb.in (9 Nm)
