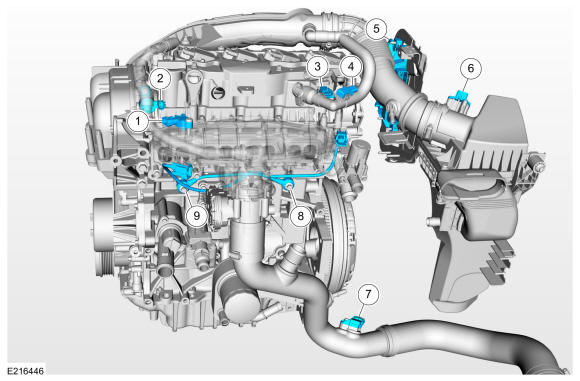

Electronic Engine Controls - LH Side of Engine
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
MAP sensor |
| 2 |
VCT oil control solenoid |
| 3 |
CMP sensor - LH |
| 4 |
Crankcase Pressure sensor |
| 5 |
PCM |
| 6 |
MAF sensor |
| 7 |
Turbocharger boost pressure and charge air temperature sensor |
| 8 |
Rear KS |
| 9 |
Front KS |
