Muffler and Tailpipe: Installation

WARNING: This page is about a different variant/trim than selected.

Install the rear muffler and tailpipe section and attach the 2 isolators.
NOTE: If the rear muffler and tailpipe section is being serviced, the rear muffler service part is sized to overlap the front muffler and tailpipe section (shown). If the front muffler and tailpipe section is being serviced, install the service sleeve and clamp.

NOTE: The 1.6L Duratec muffler and tailpipe assembly shown, 1.6L Ecoboost similar.

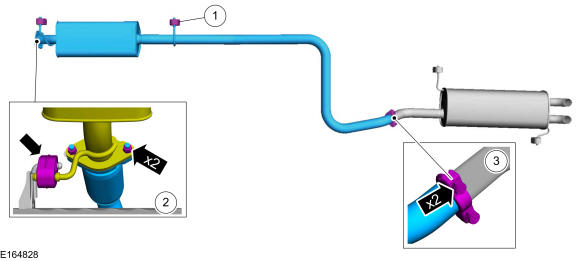

1. Attach the front muffler and tailpipe assembly isolators.
2. Install a new gasket and 2 new catalytic converter-to-muffler and tailpipe assembly nuts.
  Torque: 35 lb.ft (48 Nm)
3. Install the service clamp.
  Torque: 33 lb.ft (45 Nm)
Courtesy of FORD MOTOR COMPANY

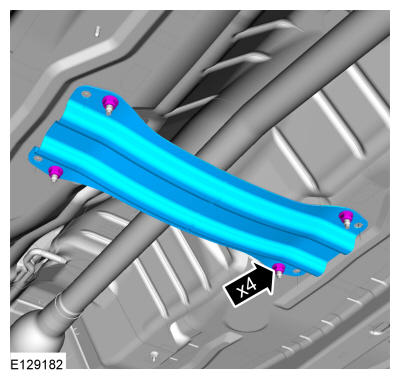

If equipped. Install the 4 nuts and the brace.
Torque: 30 lb.ft (40 Nm)

GFD302060

Courtesy of FORD MOTOR COMPANY
