Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

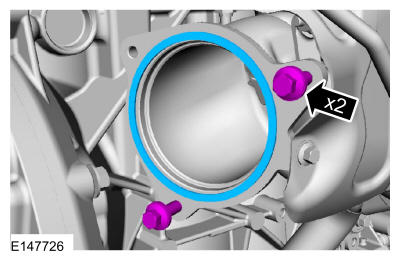

Install a new gasket and loosely install the 2 bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to tighten the catalytic converter manifold fasteners in this sequence will cause the converter to develop an exhaust leak.

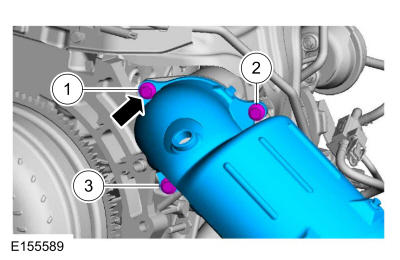

NOTE: Tighten the catalytic converter bolts in this sequence.
1. Position the catalytic converter on the 2 bolts and install the upper bolt.
  Torque: 18 lb.ft (25 Nm)
2. Tighten the RH catalytic converter bolt.
  Torque: 18 lb.ft (25 Nm)
3. Tighten the LH catalytic converter bolt.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
