Removal And Installation: Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the generator. Refer to: Generator - 1.6L EcoBoost (132kW/180PS) - Sigma .

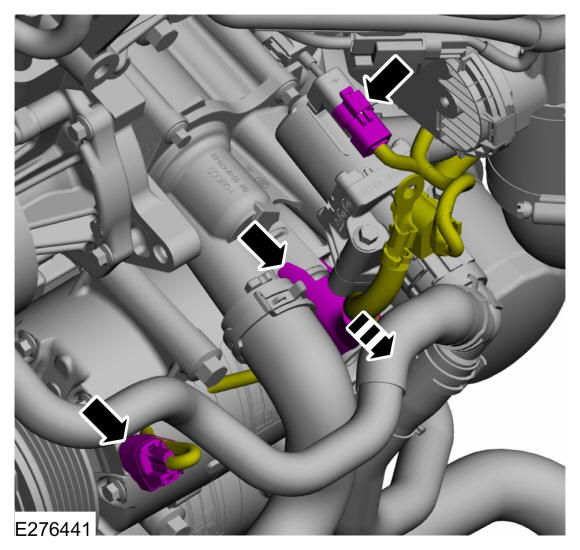

Disconnect the electrical connectors, detach the harness retainer and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

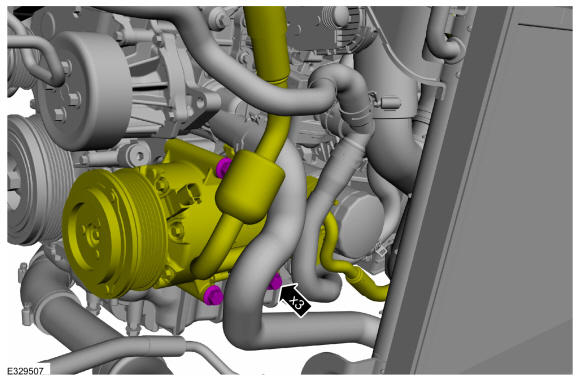

Remove the bolts and position aside the A/C compressor.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

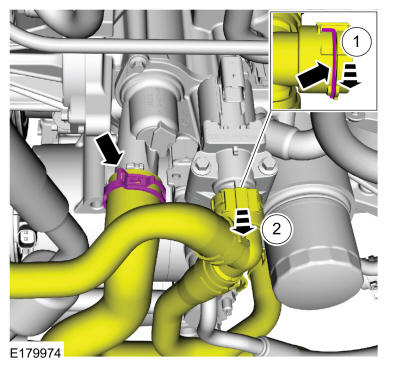

1. Release the clip.
2. Disconnect the coolant outlet hose.
- Release the clamp and disconnect the radiator hose.
Courtesy of FORD MOTOR COMPANY

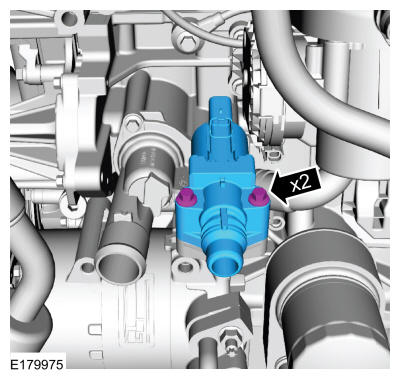

Remove the bolts and the coolant shutoff solenoid valve.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

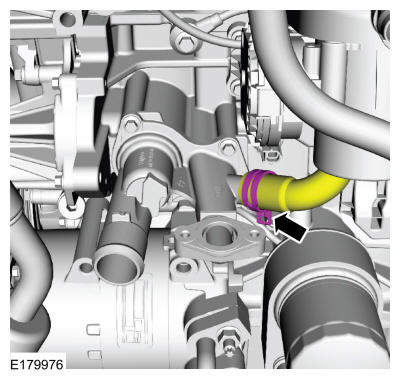

Release the clamp and disconnect coolant bypass hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

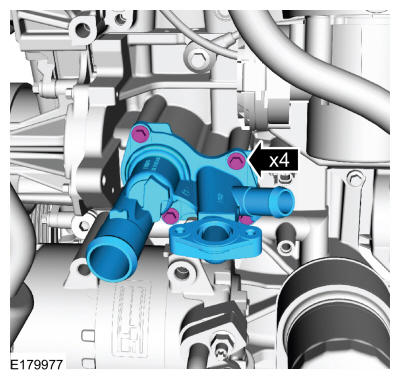

Remove the bolts and the thermostat housing.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
