Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

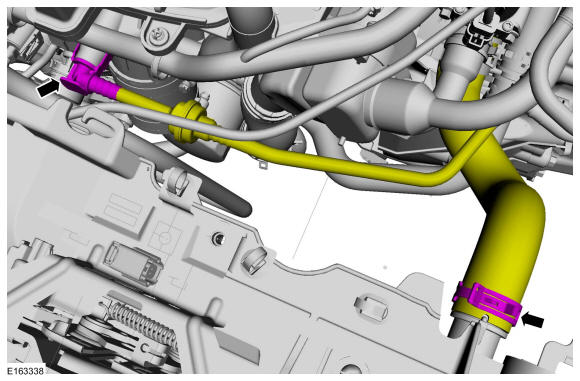

- Depress the tab and disconnect the vent tube. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: The component must be removed by hand, the use of tools is prohibited.

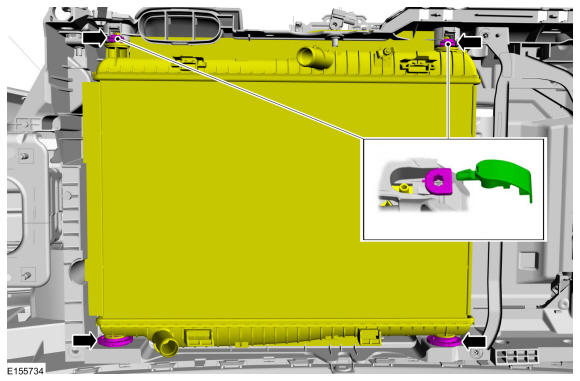

Release the tabs and remove the radiator support brackets.

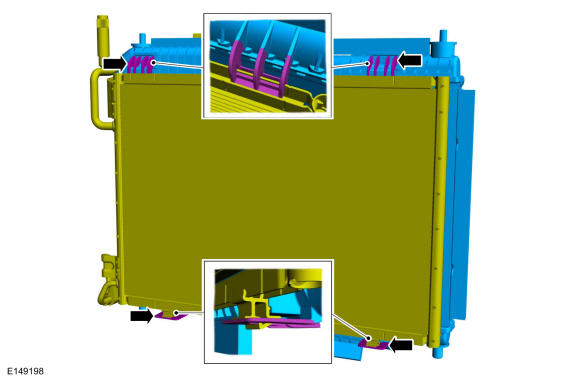

- Unclip the lower tabs and lift the radiator upward while pressing down on the A/C condenser. Remove the radiator.
