Heater Hoses: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to: Battery Tray - 1.6L Ecoboost (132kW/180PS) - SIGMA .
  2. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

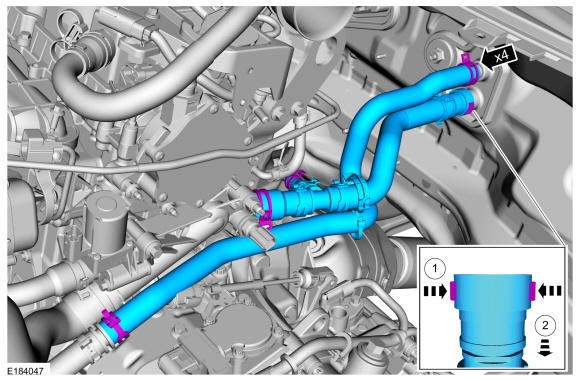

  3. Release the hose clamps and remove the heater hoses. Use the General Equipment: Hose Clamp Remover/Installer
GFD300844Courtesy of FORD MOTOR COMPANY
