Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the air cleaner. Refer to: Air Cleaner .

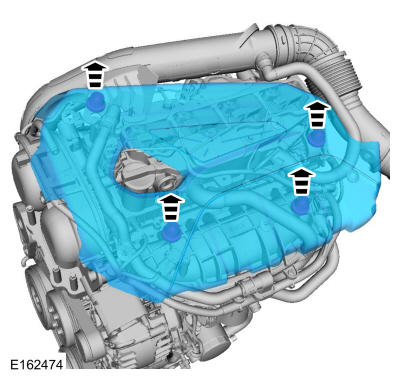

  2. Remove the engine appearance cover.
    GFD300829Courtesy of FORD MOTOR COMPANY

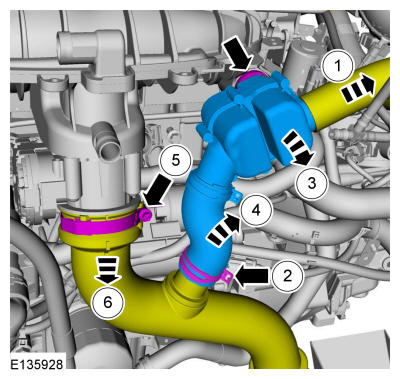

    1. Disconnect the resonator tube.
    2. Release the clamp.
    3. Detach the grommet.
    4. Remove the resonator assembly.
    5. Loosen the clamp.

      Torque: 44 lb.in (5 Nm)

    6. Position aside the CAC outlet pipe.
    GFD300830Courtesy of FORD MOTOR COMPANY

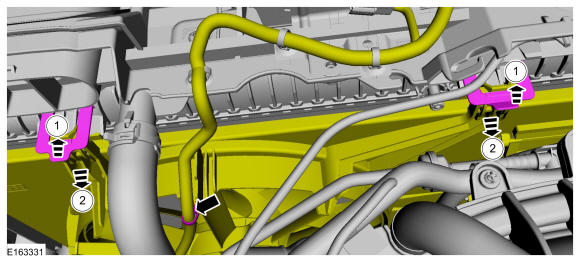

    1. Detach the wiring harness retainer and release the tabs.
    2. Position aside the cooling fan motor and shroud assembly.
    GFD300836Courtesy of FORD MOTOR COMPANY
  5. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

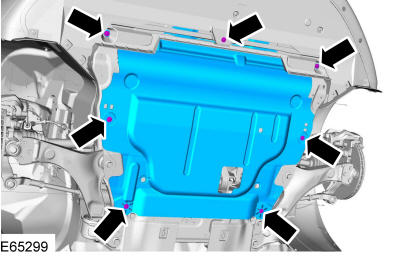

  6. Remove the retainers and the underbody shield.
    GFD300837Courtesy of FORD MOTOR COMPANY

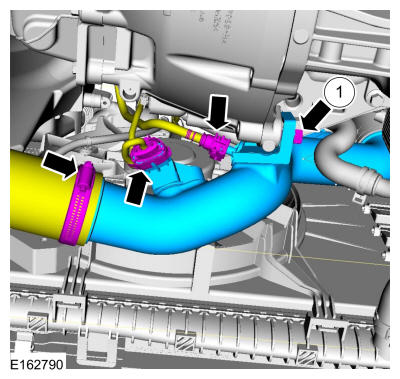

    • Disconnect the electrical connector and the vent tube.

    • Loosen the clamp and remove the CAC inlet pipe.

    GFD300832Courtesy of FORD MOTOR COMPANY

    1. Remove the bolt.

      Torque: 133 lb.in (15 Nm)

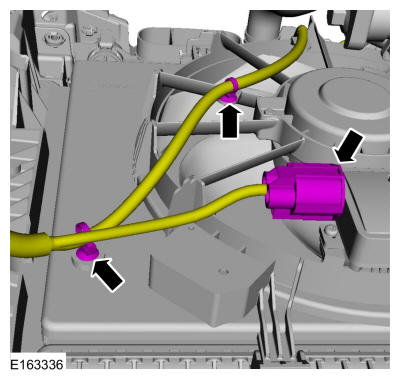

  8. Detach the wiring harness retainers and disconnect the electrical connector.
    GFD300838Courtesy of FORD MOTOR COMPANY

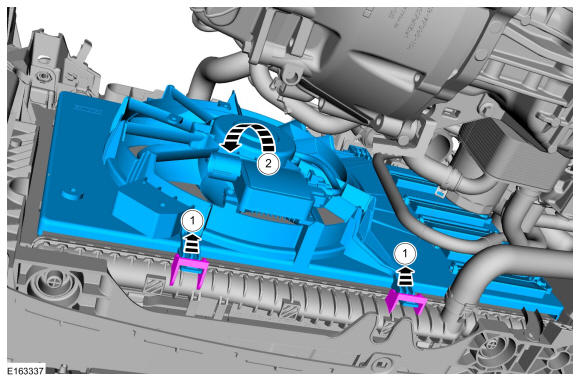

    1. Release the tabs.
    2. Remove the cooling fan motor and shroud.
GFD300839Courtesy of FORD MOTOR COMPANY
