Coolant Shutoff Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the resonator tube.
2. Release the clamp.
3. Detach the grommet.
4. Loosen the clamp and remove the resonator assembly.
5. Loosen the clamp.
6. Position aside the CAC outlet pipe.
Courtesy of FORD MOTOR COMPANY
Refer to: Jacking and Lifting - Overview .

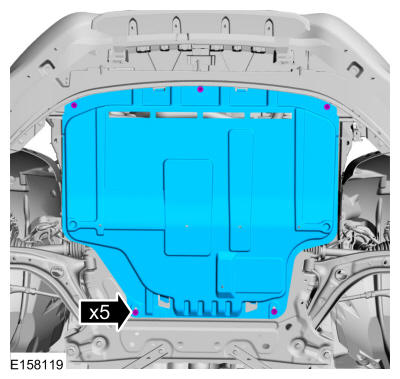

If equipped. Remove the underbody splash shield fasteners and the underbody splash shield.

Courtesy of FORD MOTOR COMPANY
- Disconnect the electrical connector and the vent tube.
- Loosen the clamp and remove the CAC inlet pipe.
Courtesy of FORD MOTOR COMPANY
1. Remove the bolt.
  Torque: 133 lb.in (15 Nm)

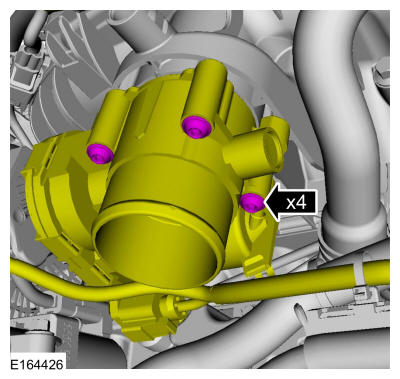

Remove the bolts and position aside the throttle body.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

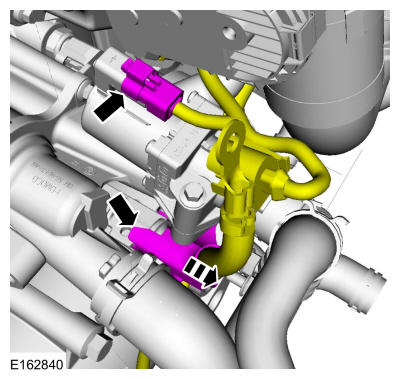

Disconnect the coolant shutoff solenoid valve electrical connector, detach the retainer and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

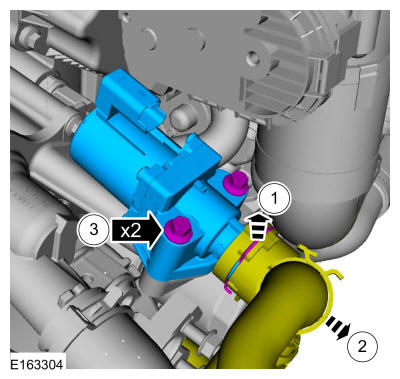

1. Release the clip.
2. Disconnect the coolant hose.
3. Remove the bolts and the coolant shutoff solenoid valve.
  Torque: 89 lb.in (10 Nm)
