Coolant Pump: Installation

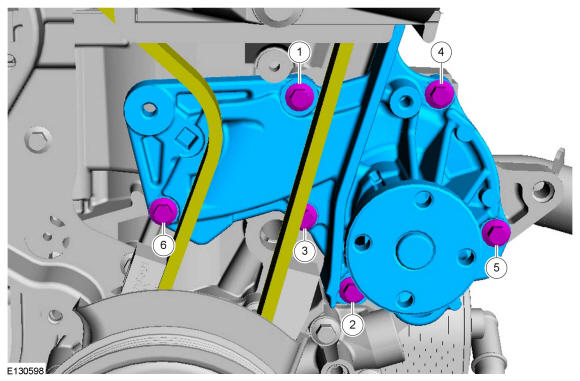

Install the coolant pump and tighten the bolts in the sequence order.

Torque: 89 lb.in (10 Nm)

Fig 1: Coolant Pump Tightening Sequence

Courtesy of FORD MOTOR COMPANY

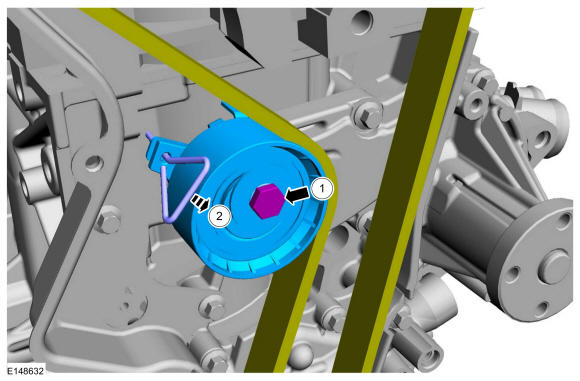

1. Install the timing belt tensioner and tighten the bolt.

   Torque: 18 lb.ft (25 Nm)

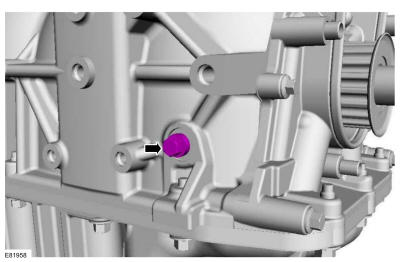

2. Remove the holding pin.

Courtesy of FORD MOTOR COMPANY

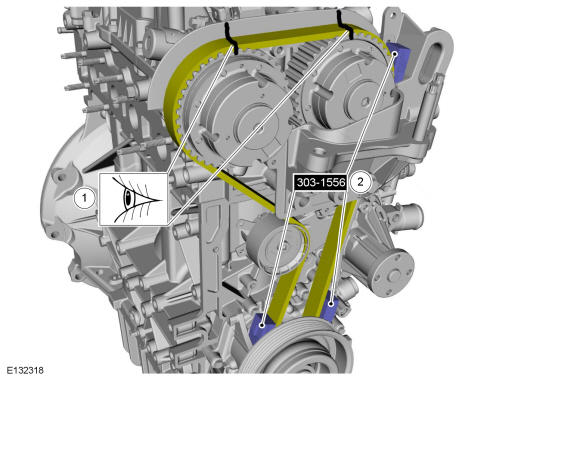

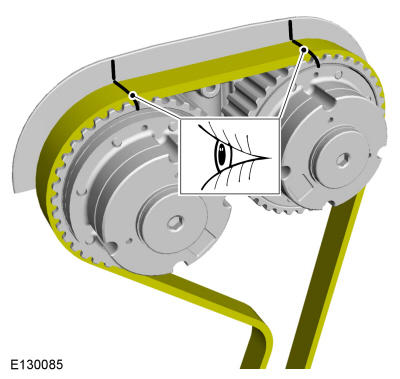

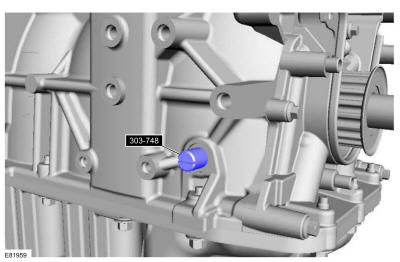

1. NOTE: Make sure that the components are installed to the position noted before removal.
2. Remove Special Service Tool: 303-1556 Locking Tool, Timing Belt.

Courtesy of FORD MOTOR COMPANY

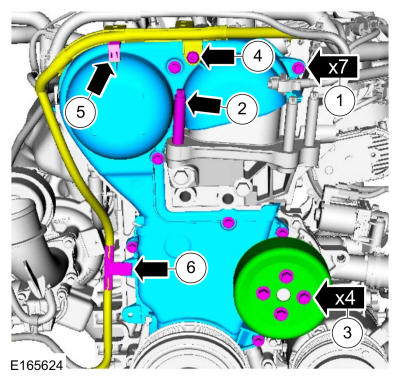

1. Install the timing cover and tighten the bolts.

   Torque: 89 lb.in (10 Nm)

2. Finger tight. Install the engine mount stud.
3. Finger tight. Install the coolant pump pulley and the bolts.
4. Install and tighten the wiring harness bracket bolt.

   Torque: 71 lb.in (8 Nm)

5. Attach the wiring harness retainer.
6. Attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

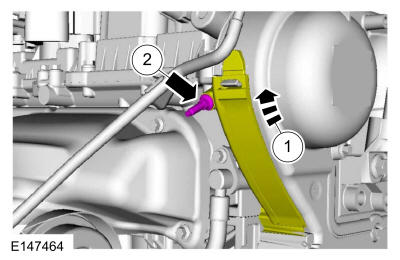

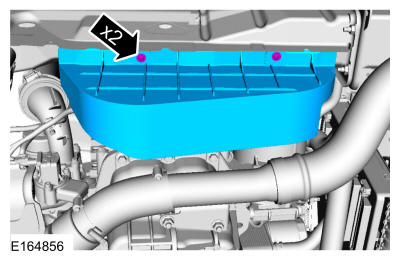

1. Close the cover.
2. Install and tighten the timing cover stud bolt.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

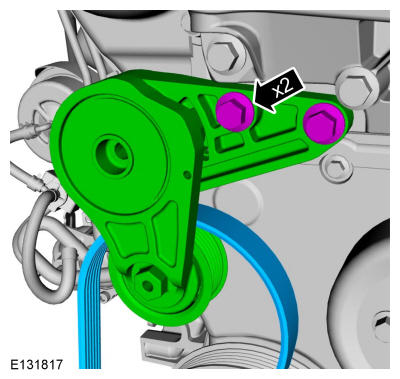

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

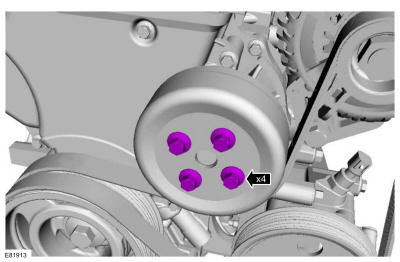

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

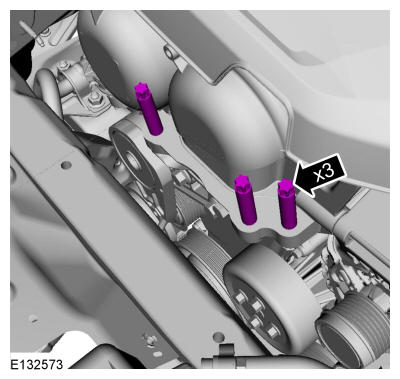

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

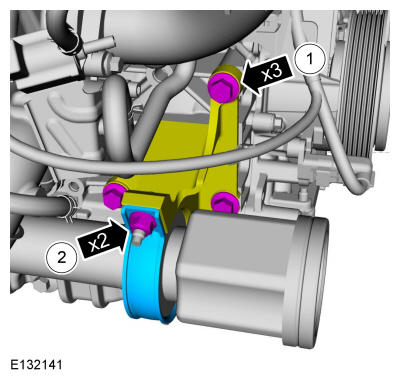

1. Position the support bracket and tighten the bolts.

   Torque: 35 lb.ft (48 Nm)

2. Install the axle bearing support and tighten the nuts.

   Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

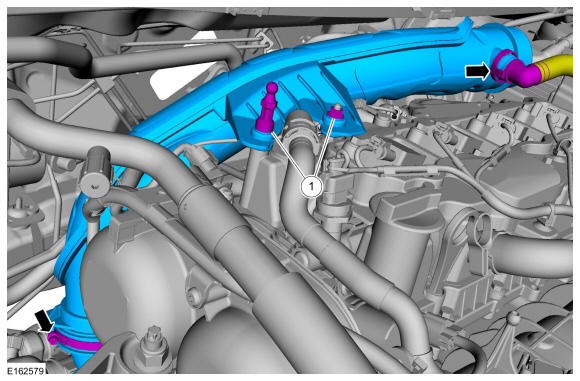

• Install the turbocharger inlet tube and tighten the clamp.

• Connect the vent hose.

Courtesy of FORD MOTOR COMPANY

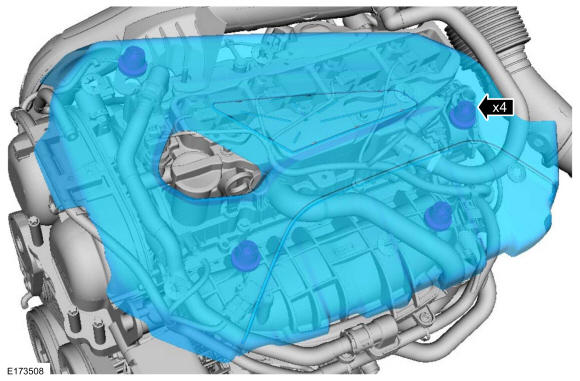

1. Install the turbocharger inlet tube retainers.
