Coolant Bypass Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

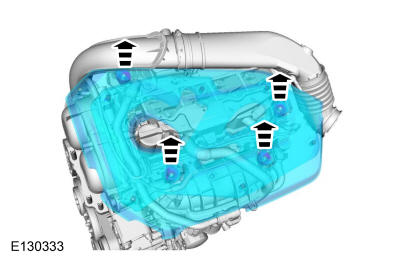

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Position the resonator assembly aside.

Courtesy of FORD MOTOR COMPANY

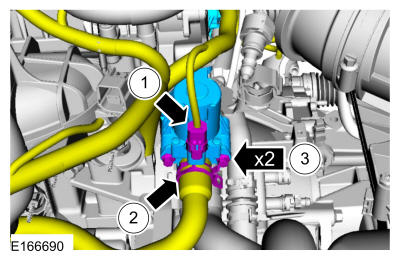

1. Disconnect the electrical connector.
2. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
3. Remove the bolts and the coolant bypass solenoid valve.
  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
