Roll Restrictor RH: Installation
WARNING: This page is about a different variant/trim than selected.

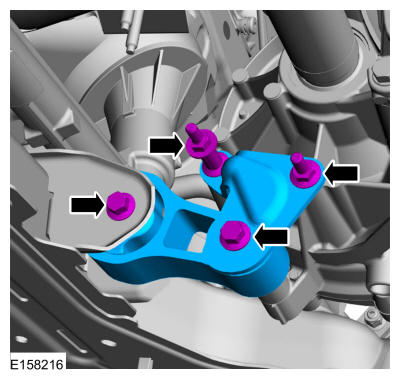

- Install the roll restrictor and the roll restrictor bolts.
Torque: 52 lb.ft (70 Nm)
 Courtesy of FORD MOTOR COMPANY
|
-
- Install the bracket and the upper nuts.
Torque: 18 lb.ft (25 Nm)
- Install the lower nuts.
Torque: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
