Reverse Gear Output Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

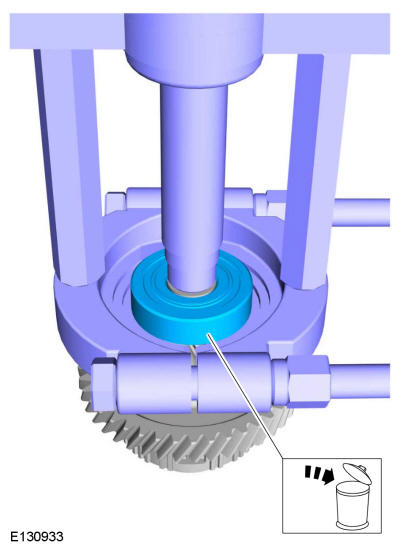

  1. Remove the bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Puller
    GFD301952Courtesy of FORD MOTOR COMPANY

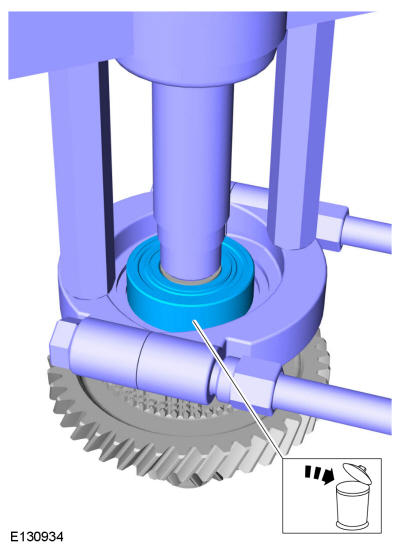

  2. Remove the bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Puller
    GFD301953Courtesy of FORD MOTOR COMPANY

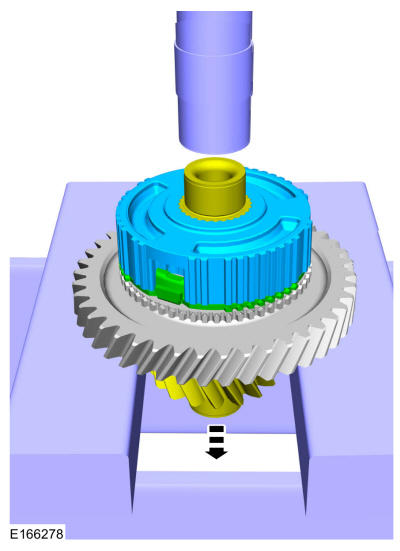

  3. Remove the reverse gear synchronizer ring and the synchronizer body. Use Special Service Tool: 205-D015 (D80L-630-4) Step Plate. Use the General Equipment: Hydraulic Press
    GFD301954Courtesy of FORD MOTOR COMPANY

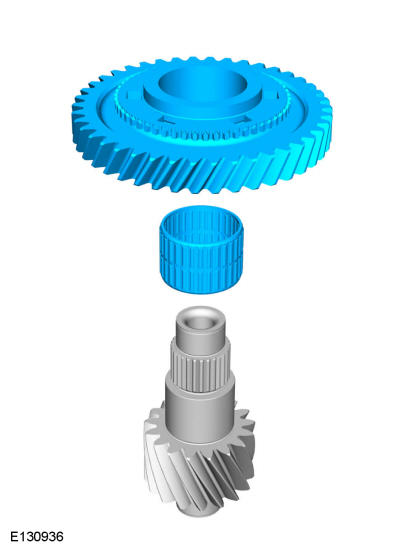

  4. Remove the reverse gear and the needle bearing.
GFD301955Courtesy of FORD MOTOR COMPANY
