Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting - Overview .

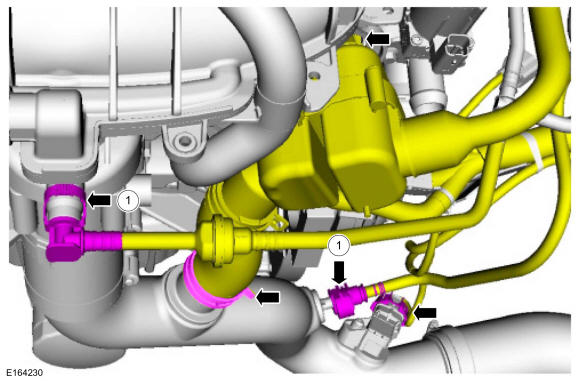

- Release the resonator assembly from the retainer, release the resonator assembly clamp and then position the resonator assembly out of the way.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the quick release couplings. Refer to: Quick Release Coupling .

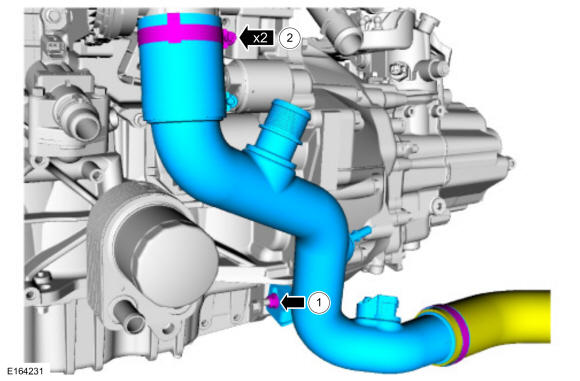

1. Remove the CAC outlet pipe retaining nut.
  Torque: 133 lb.in (15 Nm)
2. Loosen the CAC outlet pipe clamps and then remove the CAC outlet pipe.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

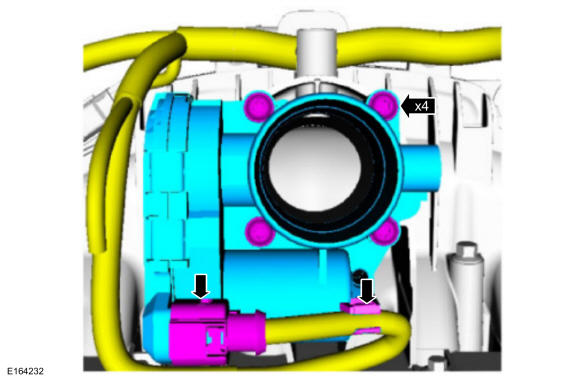

NOTE: Tighten the Throttle Body (TB) mounting bolts evenly.
- Disconnect the Throttle Body electrical connector and detach the Throttle Body wiring harness retainer from the Throttle Body.
- Remove the Throttle Body bolts and then remove the Throttle Body.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

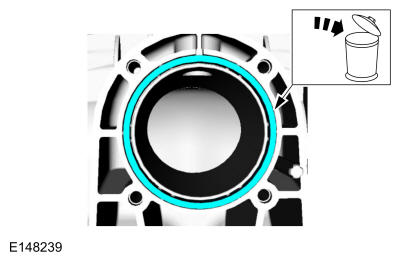

Remove and discard the Throttle Body gasket.

Courtesy of FORD MOTOR COMPANY
