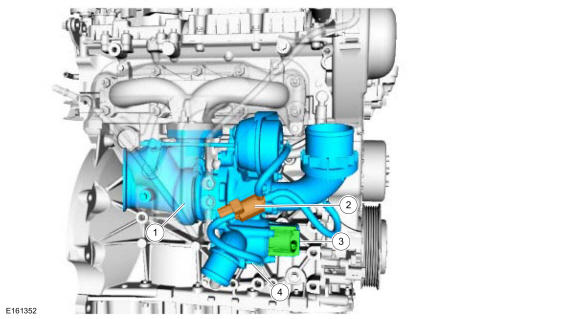

Turbocharger - Component Location
WARNING: This page is about a different variant/trim than selected.
1.6L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger |
| 2 |
Wastegate control valve solenoid |
| 3 |
Turbocharger bypass valve |
| 4 |
Pressure side of compressor |
