Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.

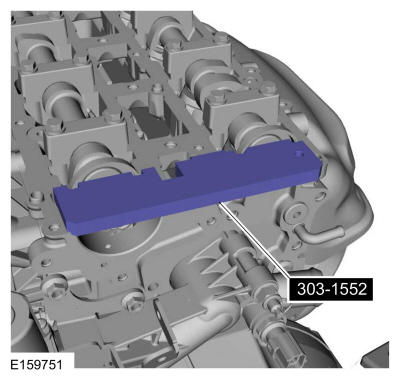

  1. NOTE: It may be necessary to use an open-ended wrench to turn the camshafts by the hexagon to align the camshafts.

    Install Special Service Tool: 303-1552 Alignment Tool, Camshaft.

    GFD300445Courtesy of FORD MOTOR COMPANY

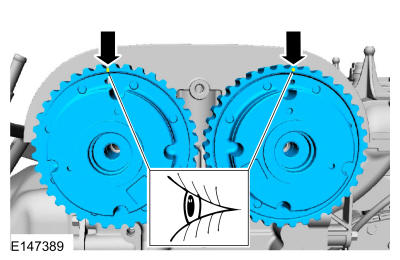

  2. Install the VCT units at the 12 o'clock position.
    GFD300446Courtesy of FORD MOTOR COMPANY

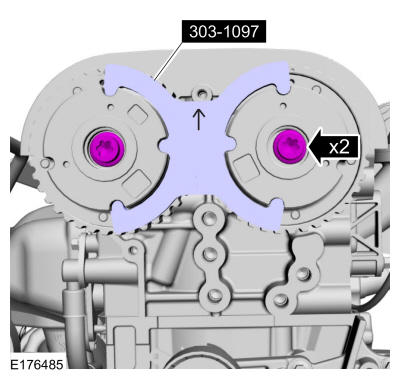

  3. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.
    NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

    Install the special tool and the new bolts. Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    Torque: 18 lb.ft (25 Nm)

    GFD300447Courtesy of FORD MOTOR COMPANY

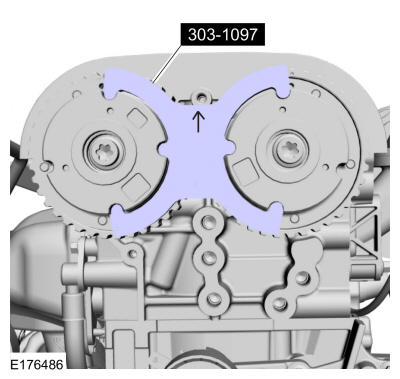

  4. Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
    GFD300448Courtesy of FORD MOTOR COMPANY
  5. Remove Special Service Tool: 303-1552 Alignment Tool, Camshaft.
    GFD300445Courtesy of FORD MOTOR COMPANY

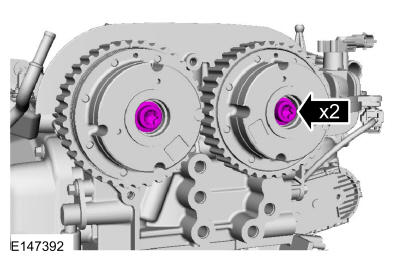

  6. NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

    Tighten the bolts.

    Torque: 75°

    GFD300449Courtesy of FORD MOTOR COMPANY
  7. NOTE: The special tool can only be installed if the valve timing is correct.

    Install Special Service Tool: 303-1552 Alignment Tool, Camshaft.

    GFD300445Courtesy of FORD MOTOR COMPANY
  8. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.

    If the special tools cannot be installed, repeat the adjustment according to the preceding steps. Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    GFD300448Courtesy of FORD MOTOR COMPANY
  9. Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
    GFD300448Courtesy of FORD MOTOR COMPANY
  10. Remove Special Service Tool: 303-1552 Alignment Tool, Camshaft.
    GFD300445Courtesy of FORD MOTOR COMPANY
  11. NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

    Install the VCT unit caps.

    Torque: 142 lb.in (16 Nm)

    GFD300443Courtesy of FORD MOTOR COMPANY
  12. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.

    Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    GFD300374Courtesy of FORD MOTOR COMPANY
  13. Install the following items:

    1. Install the timing belt. Refer to: Timing Belt .
    2. Install the valve cover. Refer to: Valve Cover .
