Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.

Valve Cover Only

  1. Remove the fuel rail. Refer to: Fuel Rail .

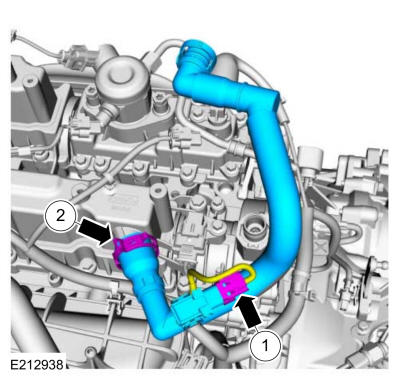

    1. Disconnect the electrical connector.
    2. Loosen the clamp and remove the hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD300420Courtesy of FORD MOTOR COMPANY

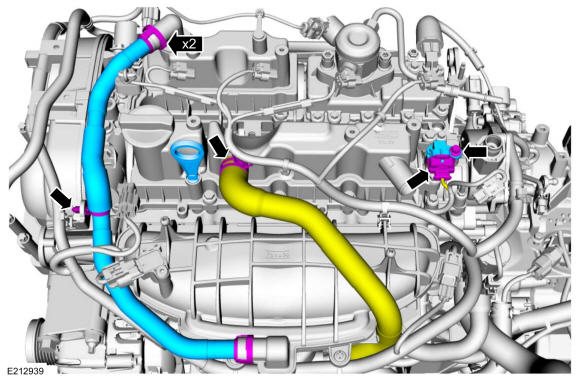

    • Disconnect the hose couplings, detach the retainer and remove the hoses. Use the General Equipment: Hose Clamp Remover/Installer

    • Remove the oil level indicator.

    • Disconnect the electrical connector, remove the bolt and the CMP sensor.

    GFD300421Courtesy of FORD MOTOR COMPANY

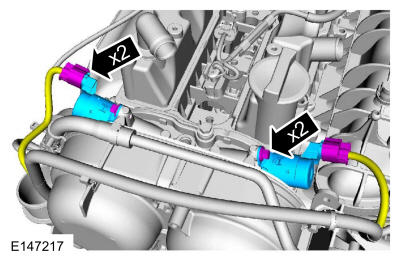

  4. NOTE: Note the position of the components before removal.

    • Disconnect the electrical connectors.

    • Remove the bolts and the VCT oil control solenoid.

    GFD300422Courtesy of FORD MOTOR COMPANY
  5. NOTE: The O-ring seals are to be reused unless damaged.

    Inspect the VCT oil control solenoid O-ring seal.

    GFD300423Courtesy of FORD MOTOR COMPANY

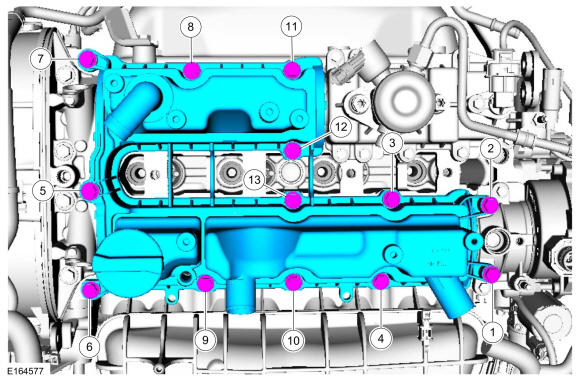

  6. NOTE: Do not set the valve cover sealing surface face down on a bench as the check valve and splitter leg is susceptible to breakage.

    Remove the bolts and the valve cover.

    Fig 1: Valve Cover Loosening Sequence
    GFD300424Courtesy of FORD MOTOR COMPANY

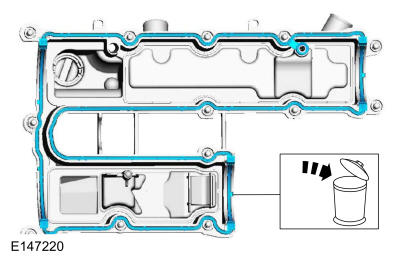

  7. Remove and discard the valve cover gasket.
    GFD300425Courtesy of FORD MOTOR COMPANY

    Fuel Pump and Brake Vacuum Pump Mounting Brackets

  8. Remove the following items:

    1. Remove the fuel pump. Refer to: Fuel Pump .
    2. Remove the brake vacuum pump. Refer to: Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma .

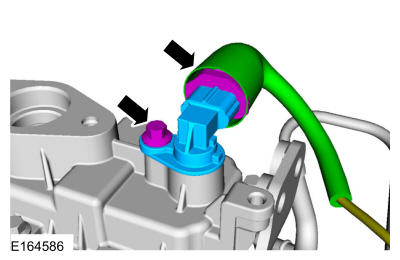

    • Slide the protective cover outward and disconnect the electrical connector.

    • Remove the bolt and the CMP sensor.

    GFD300426Courtesy of FORD MOTOR COMPANY

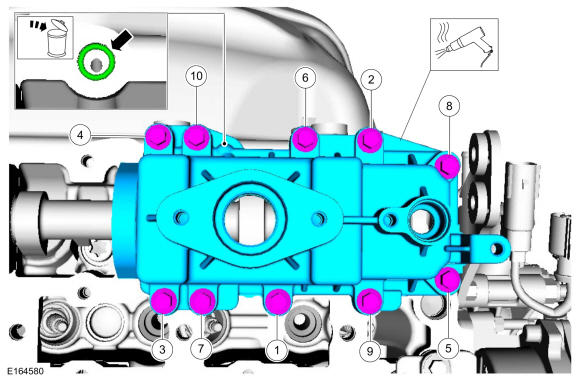

  10. NOTE: Use a heat gun to soften the flange sealant, this will aid in the removal of the fuel pump mounting bracket. Failure to follow these directions may result in damage to the fuel pump mounting bracket.

    • Remove the fuel pump bracket bolts in sequence shown. Heat and break the adhesive bond. Use the General Equipment: Hot Air Gun

    • Remove the fuel pump bracket.

    • Remove and discard the O-ring seal.

    Fig 2: Fuel Pump Mounting Bracket Loosening Sequence
    GFD300427Courtesy of FORD MOTOR COMPANY

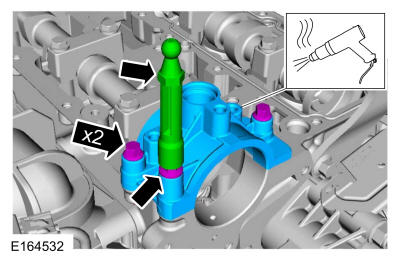

  11. NOTE: Use a heat gun to soften the flange sealant, this will aid in the removal of the brake vacuum pump mounting bracket. Failure to follow these directions may result in damage to the brake vacuum pump mounting bracket.

    • Remove the engine cover mounting stud.

    • Remove the bolts and the stud.

    • Heat and break the adhesive bond and remove the brake vacuum pump cap. Use the General Equipment: Hot Air Gun

GFD300428Courtesy of FORD MOTOR COMPANY
