Timing Belt: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Before installation, clean and inspect the sprocket for any damage. If damage is evident, replace the sprocket. If no damage, the sprocket is to be reused.

Install the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY
Install the timing belt.

Courtesy of FORD MOTOR COMPANY
WARNING: The timing belt tensioner spring is under load. Extra care must be taken at all times when handling the tensioner. Failure to follow this instruction may result in personal injury.

Remove the holding pin.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY
1. Install Special Service Tool: 303-1550 Alignment Tool, Crankshaft Vibration Damper.
2. Rotate crankshaft pulley to align the Special Tool: Use Special Service Tool: 303-1550 Alignment Tool, Crankshaft Vibration Damper.
3. Install the bolt finger tight at this stage.
4. Using a new bolt, finger tight at this stage.
Courtesy of FORD MOTOR COMPANY
Tighten the crankshaft pulley bolt.
Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 90° Stage 3: Wait 2s Stage 4: 15°

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1550 Alignment Tool, Crankshaft Vibration Damper.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-748 Locking Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-393-02 Adapter for 303-393, 303-393A Locking Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft in a clockwise direction.

Rotate the crankshaft pulley about 1 3/4 turns.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-748 Locking Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft in a clockwise direction.

Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the crankshaft locking tool. The engine is now at TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.

NOTE: It may necessary to rotate the camshafts slightly to install the special tool.

If the special tool cannot be installed, repeat the adjustment according to the preceding steps. Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
NOTE: There are different length of bolts noted in removal.

Install the engine mount bracket and the bolts.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

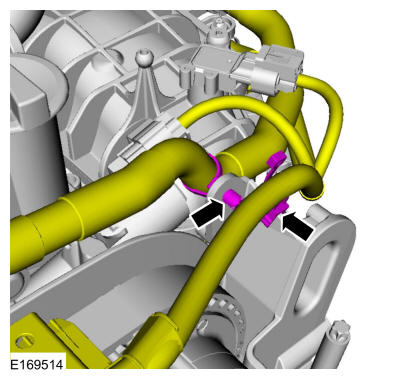

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

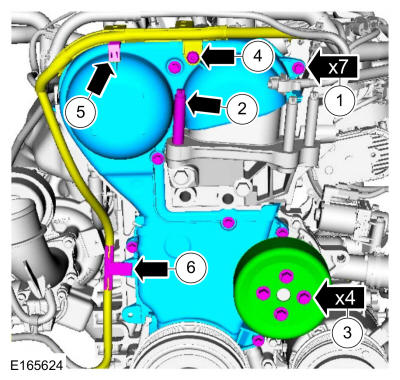

1. Install the engine front cover and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Install the engine mount stud finger-tight.
3. Install the coolant pulley and the bolts finger-tight.
4. Install the wiring harness mounting clamp and the retainer.
  Torque: 71 lb.in (8 Nm)
5. Attach the wiring harness retainer.
6. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

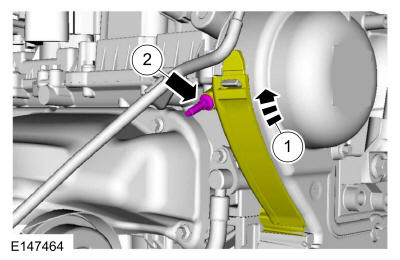

1. Close the cover and attach the retainer.
2. Install the engine front cover stud bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the accessory drive tensioner, belt and the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the engine mount stud bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the engine mount and the nuts.
  Torque: 59 lb.ft (80 Nm)
2. Install the bolts.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the floor jack and the wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-748 Locking Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY

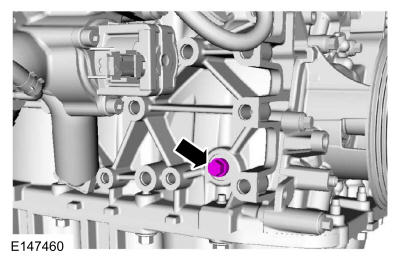

Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

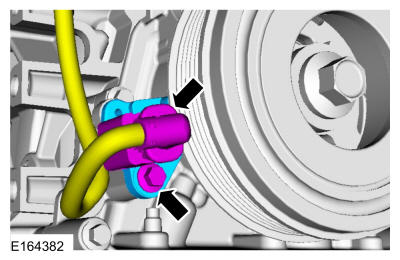

Install the CKP sensor and the bolt, connect the electrical connector.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

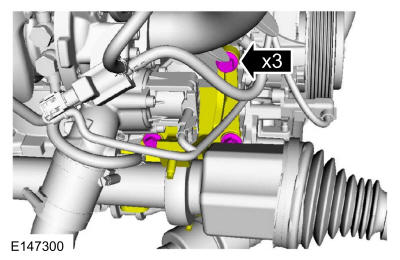

Position the bracket and install the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

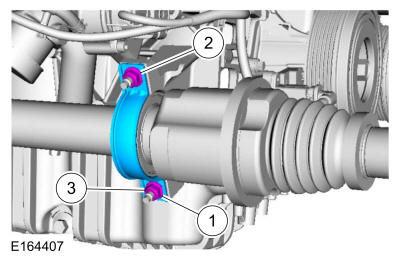

Install the halfshaft bearing retaining strap and the nuts.
Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the generator. Refer to: Generator - 1.6L EcoBoost (132kW/180PS) - Sigma .
2. Install the starter motor. Refer to: Starter Motor .
Install the shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH front wheel and tire. Refer to: Wheel and Tire .
Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the TC inlet pipe and the fasteners. Connect the crankcase vent tube.
  Torque: 44 lb.in (5 Nm)
2. Tighten the clamp.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

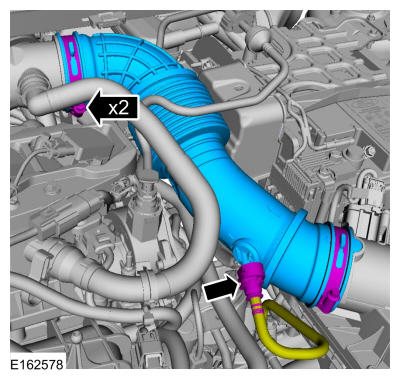

Install the air cleaner outlet pipe and tighten the clamps. Connect the EVAP tube to the air cleaner outlet pipe.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Install the degas bottle. Refer to: Degas Bottle .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
