Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

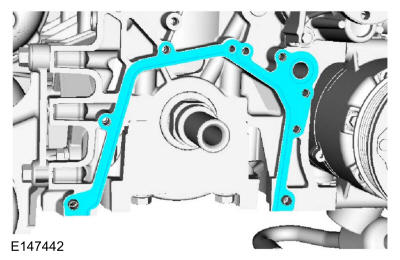

Install the new oil pump gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the locating dowels remain installed.

Inspect the oil pump locating dowels for damage and correct installation.

Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Only tighten the bolts finger tight at this stage.

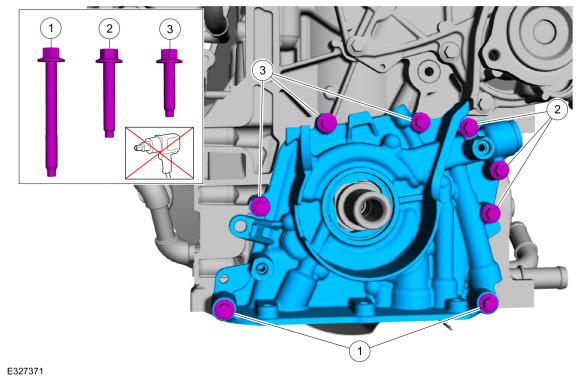

Install the oil pump and follow the steps below. Hand start the bolts.
1. Install the two M6 x 55 mm bolts finger tight.
2. Install the three M6 x 35 mm bolts finger tight.
3. Install the three M6 x 25 mm bolts finger tight.
Courtesy of FORD MOTOR COMPANY

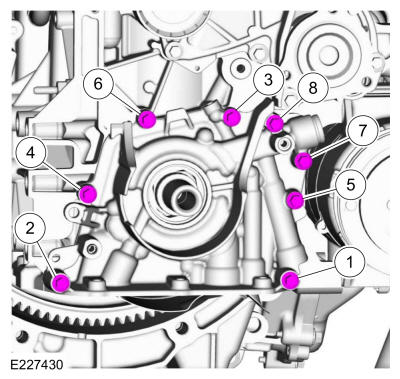

Tighten the oil pump bolts in sequence shown in 2 stages.
Torque: Stage 1: Tighten bolts 1, 2, 3 and 6: 18 lb.in (2 Nm) Stage 2: Tighten bolts 1 through 8: 97 lb.in (11 Nm)

Fig 1: Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: The O-ring seal is to be reused unless damaged.

Inspect the O-ring seal, if necessary replace.

Courtesy of FORD MOTOR COMPANY
Install the oil pump screen and pickup tube and bolts.
Torque: 84 lb.in (9.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .
Support the engine. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
1. Remove the nuts.
2. Remove the bolts and the engine mount.
Courtesy of FORD MOTOR COMPANY
Remove the engine mount stud.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts for installation.

Remove the bolts and the engine mount bracket.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
