Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

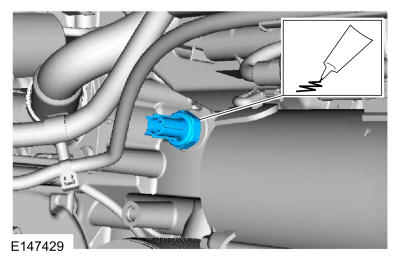

Install a new EOP switch.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the EOP switch electrical connector.

Courtesy of FORD MOTOR COMPANY
Lubricate the new engine oil filter O-ring seal with clean engine oil and install.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque: 128 lb.in (14.5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the CAC outlet tube and the nut.
  Torque: 133 lb.in (15 Nm)
2. Tighten the hose clamp and connect the electrical connector.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the TP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
- Position the CAC hose and tighten the clamp.
  Torque: 44 lb.in (5 Nm)
- Install the resonator assembly and connect the resonator assembly hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
