Oil Pan: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the oil level indicator.
-

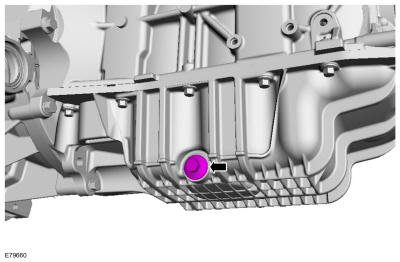

- Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
Torque: 21 lb.ft (28 Nm)

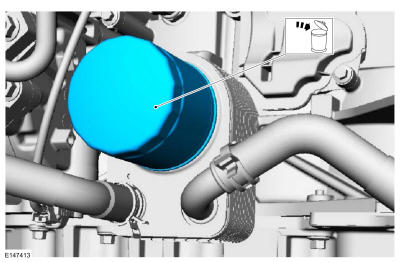

- Remove and discard the engine oil filter. Use the General Equipment: Strap Wrench
-

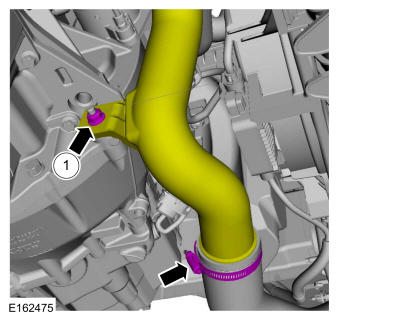

- Remove the nut.
- Loosen the clamp, position aside the CAC tube.

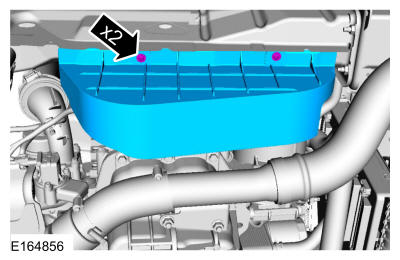

- Remove the retainers and the shield.

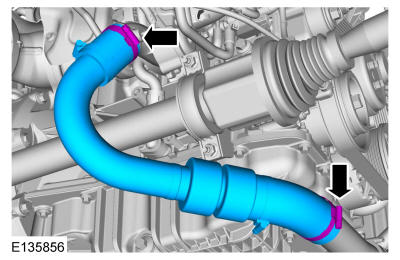

- Loosen the clamps and remove the CAC tube.

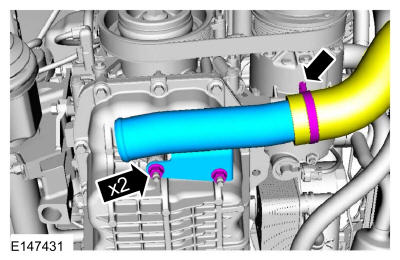

- Loosen the clamp, remove the nuts and the CAC tube.

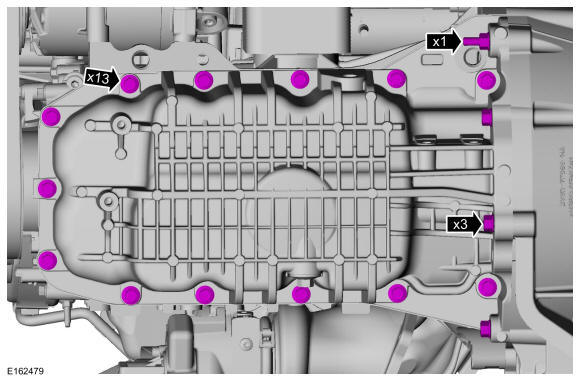

- Remove the oil pan bolts.

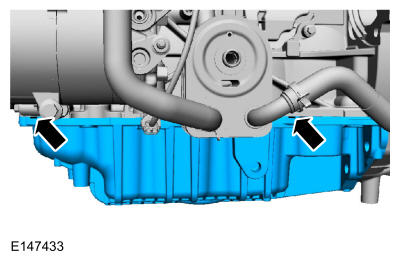

- Using the pry pads, remove the oil pan.
