Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment. Use the General Equipment: Strap Wrench
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 128 lb.in (14.5 Nm)

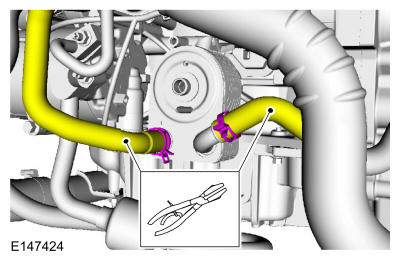

- Loosen the hose clamps and disconnect the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
-
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure.

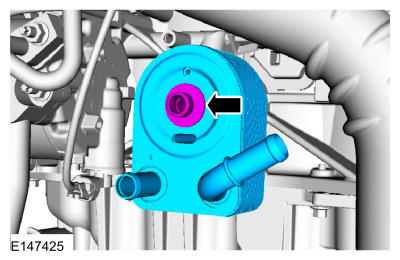

To diagnose mechanical concerns. Remove the bolt and the oil cooler. Refer to: Engine .
Torque: 41 lb.ft (55 Nm)
- Inspect the oil cooler.
