Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
  3. Remove the generator. Refer to: Generator - 1.6L EcoBoost (132kW/180PS) - Sigma .
    • Disconnect the PCV hose from the valve cover. Use the General Equipment: Hose Clamp Remover/Installer

    • Disconnect the EVAP canister purge valve quick release connector.

    • Detach the wiring harness retainers and disconnect the electrical connectors.

    GFD300340Courtesy of FORD MOTOR COMPANY
    • Disconnect the resonator assembly hose. Loosen the clamps and remove the resonator assembly. Use the General Equipment: Hose Clamp Remover/Installer

    • Loosen the clamps and position aside the CAC hose.

    GFD300341Courtesy of FORD MOTOR COMPANY
  6. Disconnect the EVAP tube from the CAC outlet tube.
    GFD300342Courtesy of FORD MOTOR COMPANY
    • Disconnect the electrical connector.

    • Loosen the clamp, remove the nut and the CAC outlet tube.

    GFD300343Courtesy of FORD MOTOR COMPANY

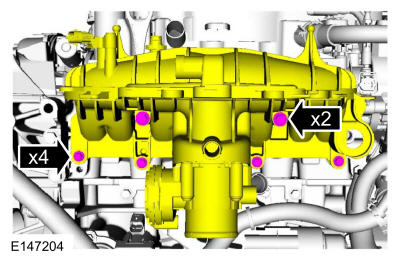

  8. NOTE: Note the different lengths of the bolts for installation.

    Remove the intake manifold bolts.

    GFD300344Courtesy of FORD MOTOR COMPANY
  9. Disconnect the throttle body electrical connector.
    GFD300345Courtesy of FORD MOTOR COMPANY

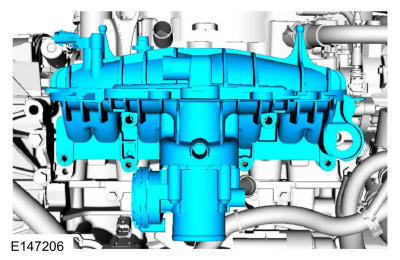

  10. Remove the intake manifold.
GFD300346Courtesy of FORD MOTOR COMPANY
