Engine Mount: Installation
WARNING: This page is about a different variant/trim than selected.

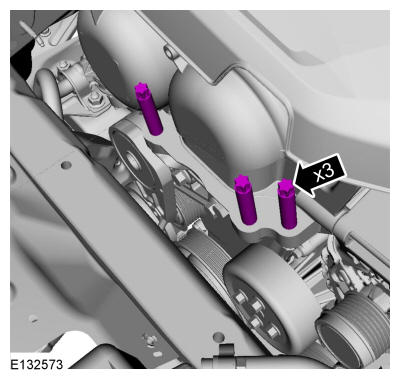

- Tighten the engine mount studs.
Torque: 89 lb.in (10 Nm)
-

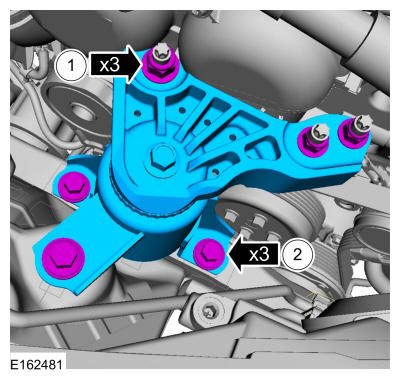

- Install the engine mount and the nuts.
Torque: 59 lb.ft (80 Nm)
- Install the bolts.
Torque: 35 lb.ft (48 Nm)
- Install the engine mount and the nuts.

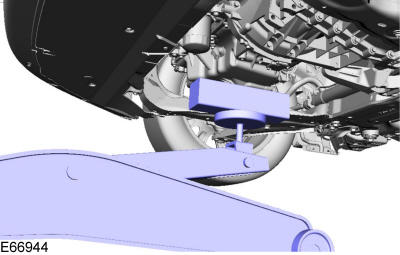

- Remove the trolley jack and the wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
- Install the degas bottle. Refer to: Degas Bottle .
