Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.

Refer to: Jacking and Lifting - Overview .
Refer to: Fuel System Pressure Release .
Remove the following items:
1. Refer to: Turbocharger .
2. Refer to: Camshafts .
3. Refer to: Intake Manifold .

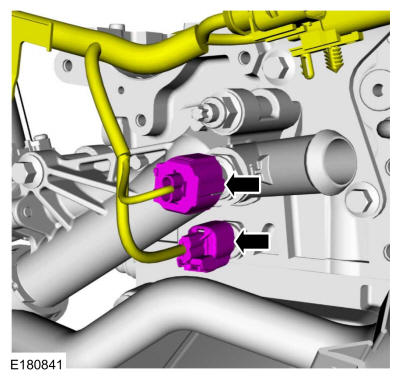

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Hose Clamp Remover/Installer

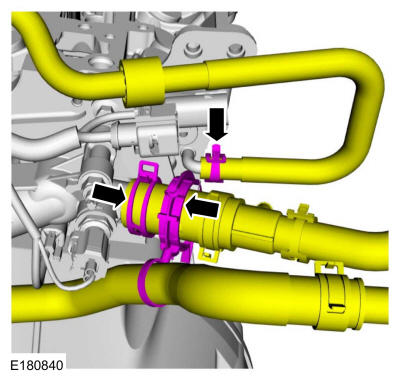

Courtesy of FORD MOTOR COMPANY

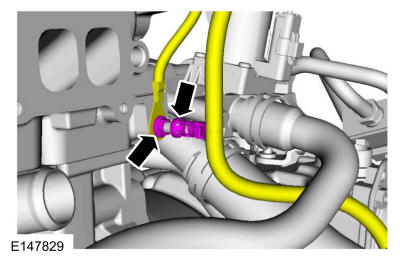

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Hose Clamp Remover/Installer

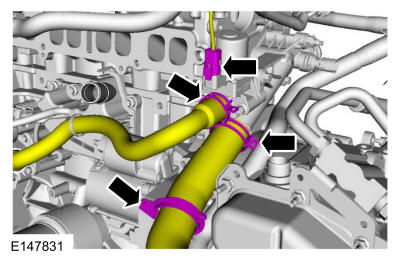

Courtesy of FORD MOTOR COMPANY

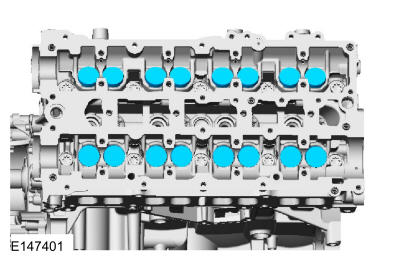

NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.

NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 0.1437 in (3.65 mm).

Courtesy of FORD MOTOR COMPANY
Install new components as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the cylinder head is at ambient air temperature before removing the cylinder head bolts.

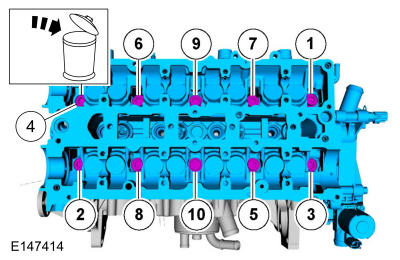

Fig 1: Cylinder Head Loosening Sequence
Courtesy of FORD MOTOR COMPANY

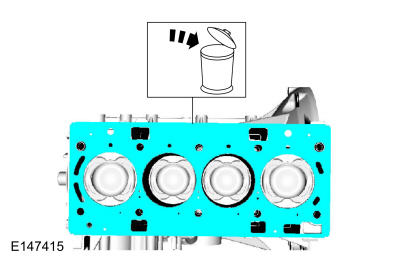

Courtesy of FORD MOTOR COMPANY
Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
