Crankshaft Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the following items:

    1. Remove the flywheel. Refer to: Flywheel .
    2. Remove the oil pan. Refer to: Oil Pan .

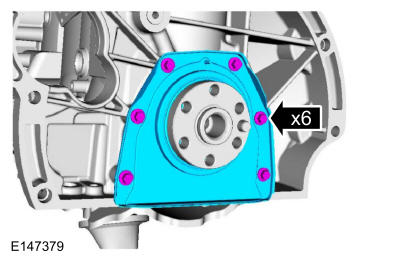

  2. Remove the bolts and the crankshaft rear seal.
    GFD300297Courtesy of FORD MOTOR COMPANY
