Crankshaft Front Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the timing belt. Refer to: Timing Belt .

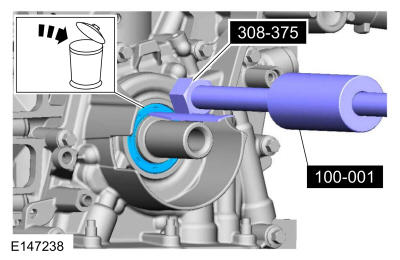

- Using the special tools, remove and discard the crankshaft front seal. Install Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 308-375 Remover, Input Shaft Seal.
