Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.

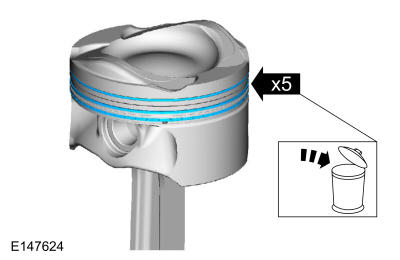

  1. Remove and discard the piston rings.
    GFD300618Courtesy of FORD MOTOR COMPANY

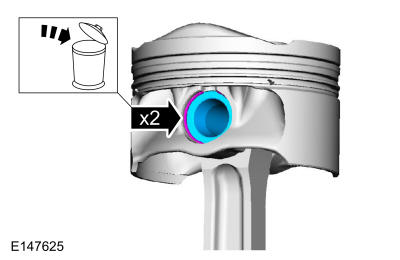

    • Remove and discard the piston pin retainers.

    • Remove the piston pin.

    GFD300619Courtesy of FORD MOTOR COMPANY
  3. Remove the piston from the connecting rod.
    GFD300620Courtesy of FORD MOTOR COMPANY

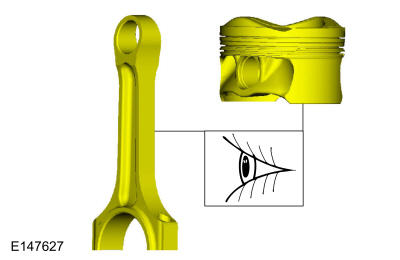

  4. Inspect the piston. Refer to: Piston Inspection .
GFD300621Courtesy of FORD MOTOR COMPANY
