Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

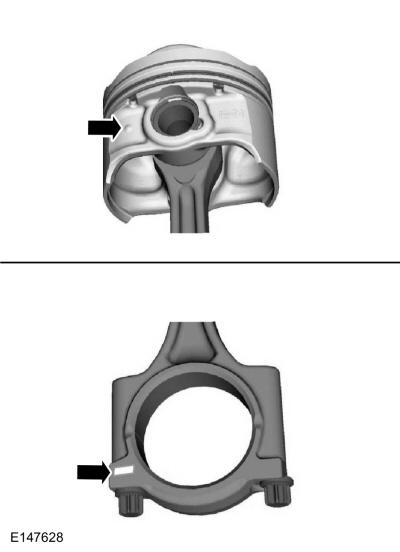

Indicates front of engine.

Courtesy of FORD MOTOR COMPANY
Install the piston to the connecting rod.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the piston pin.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
Install the new piston pin retainers.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the new piston rings.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

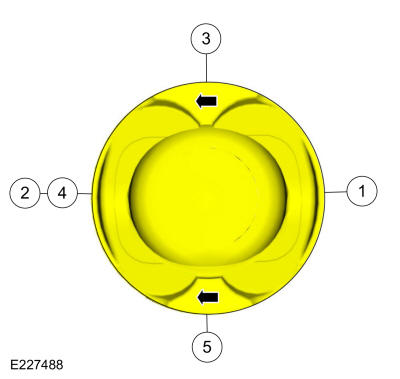

NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.

NOTE: Arrows faces the front of the engine.

NOTE: Align the piston rings on the piston.
1. Upper compression ring gap location.
2. Lower compression ring gap location.
3. Upper oil control segment ring gap location.
4. Expander ring gap location.
5. Lower oil control segment ring gap location.
Courtesy of FORD MOTOR COMPANY
