Turn Signal/Stop/Hazard Lamps

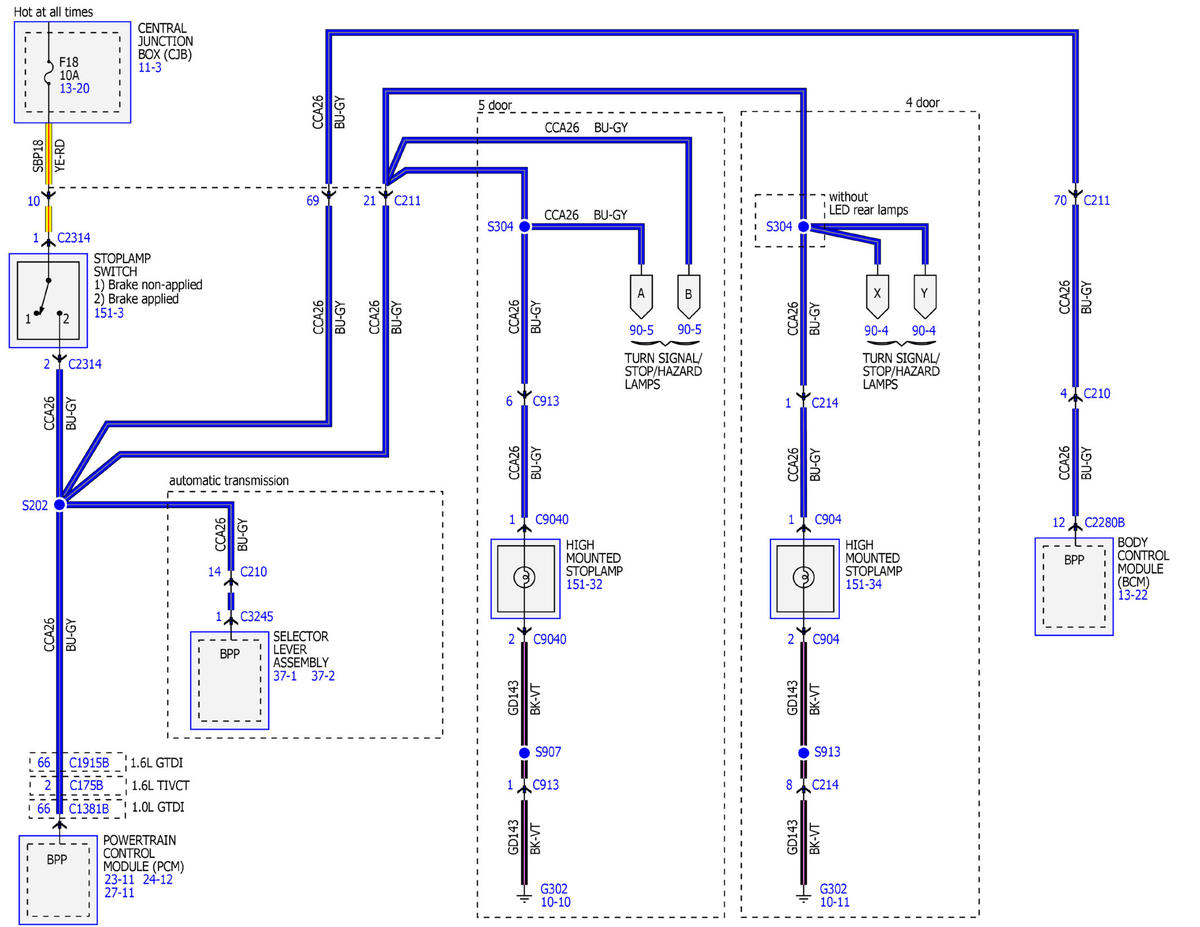

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 of 5)
GFDWR17887Courtesy of FORD MOTOR COMPANY

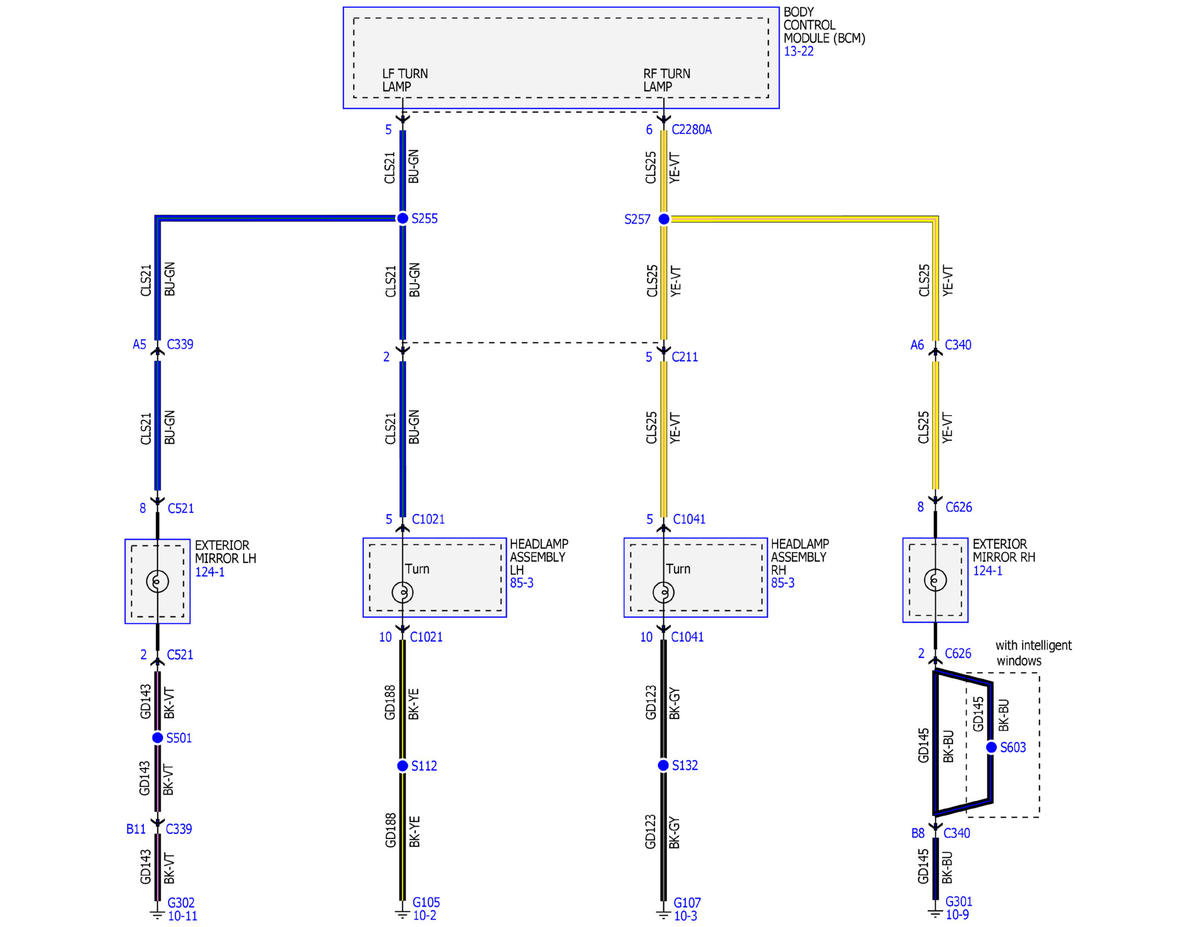

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 of 5)
GFDWR17888Courtesy of FORD MOTOR COMPANY

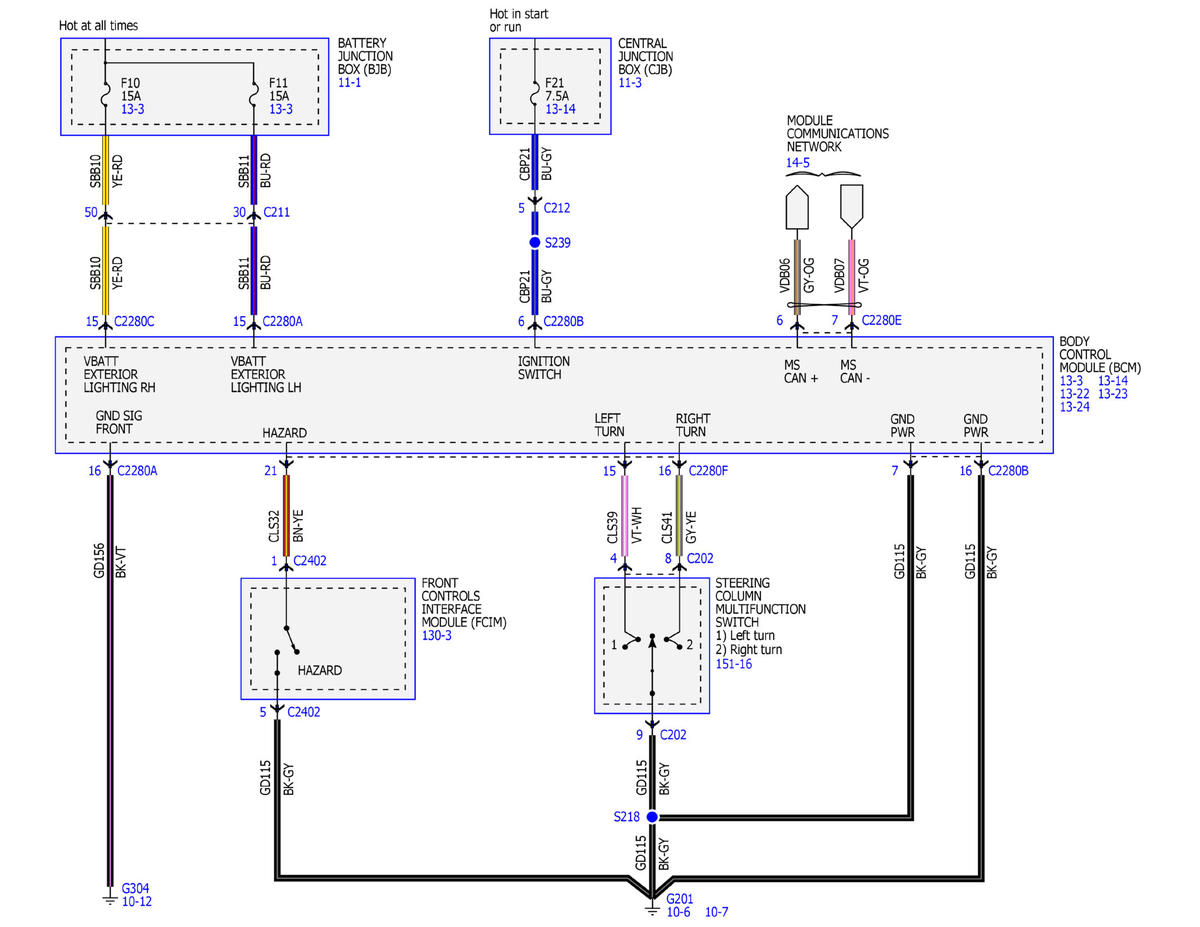

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 of 5)
GFDWR17889Courtesy of FORD MOTOR COMPANY

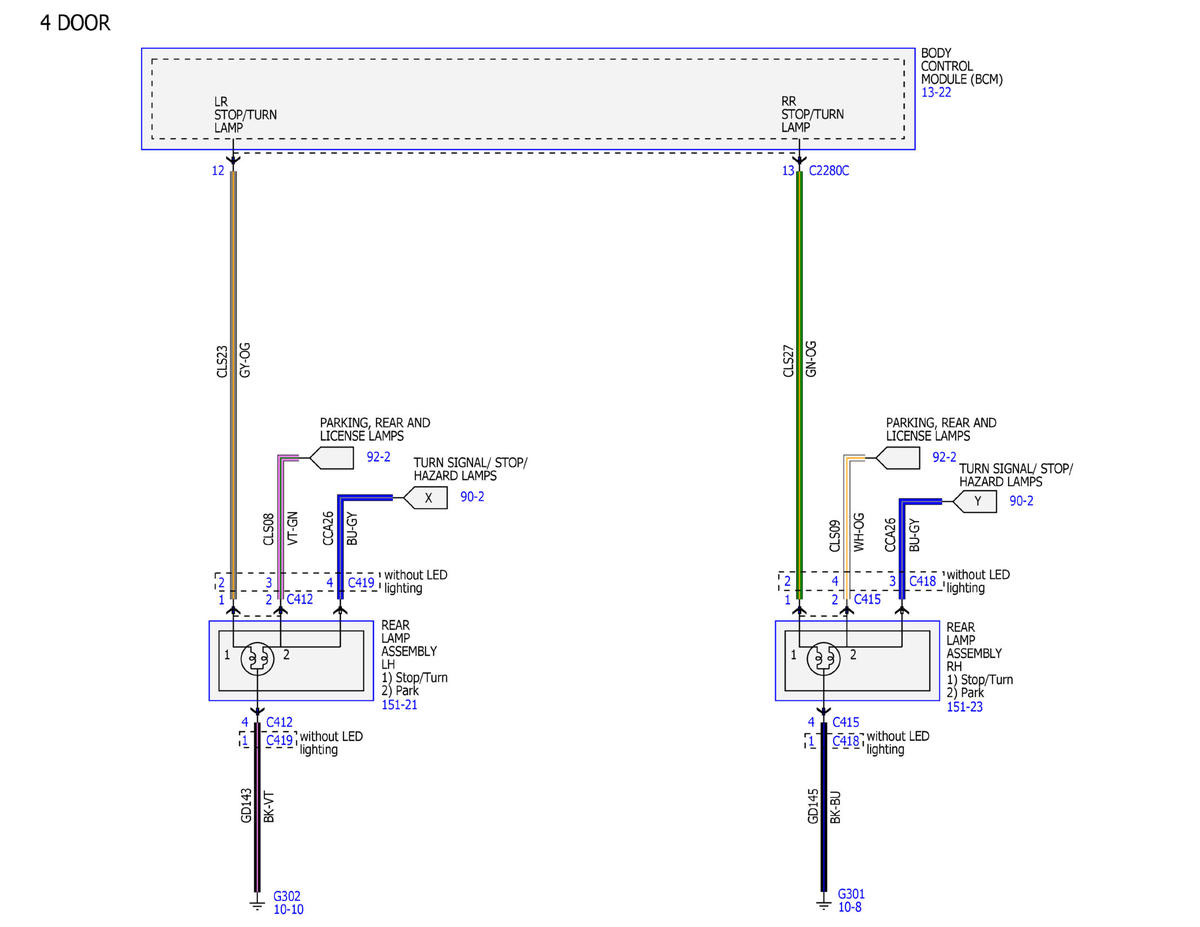

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 of 5)
GFDWR17890Courtesy of FORD MOTOR COMPANY

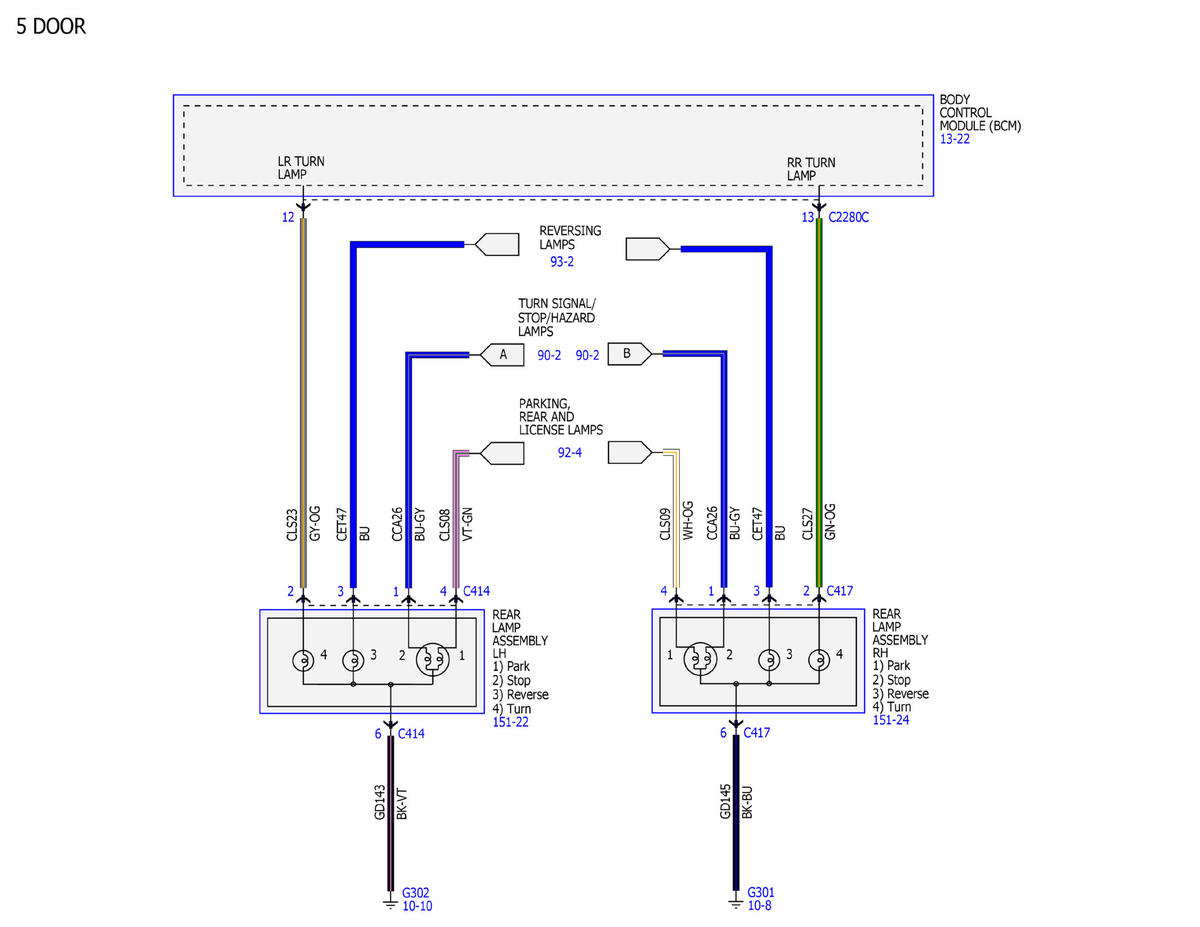

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 of 5)
GFDWR17891Courtesy of FORD MOTOR COMPANY
