Starting System

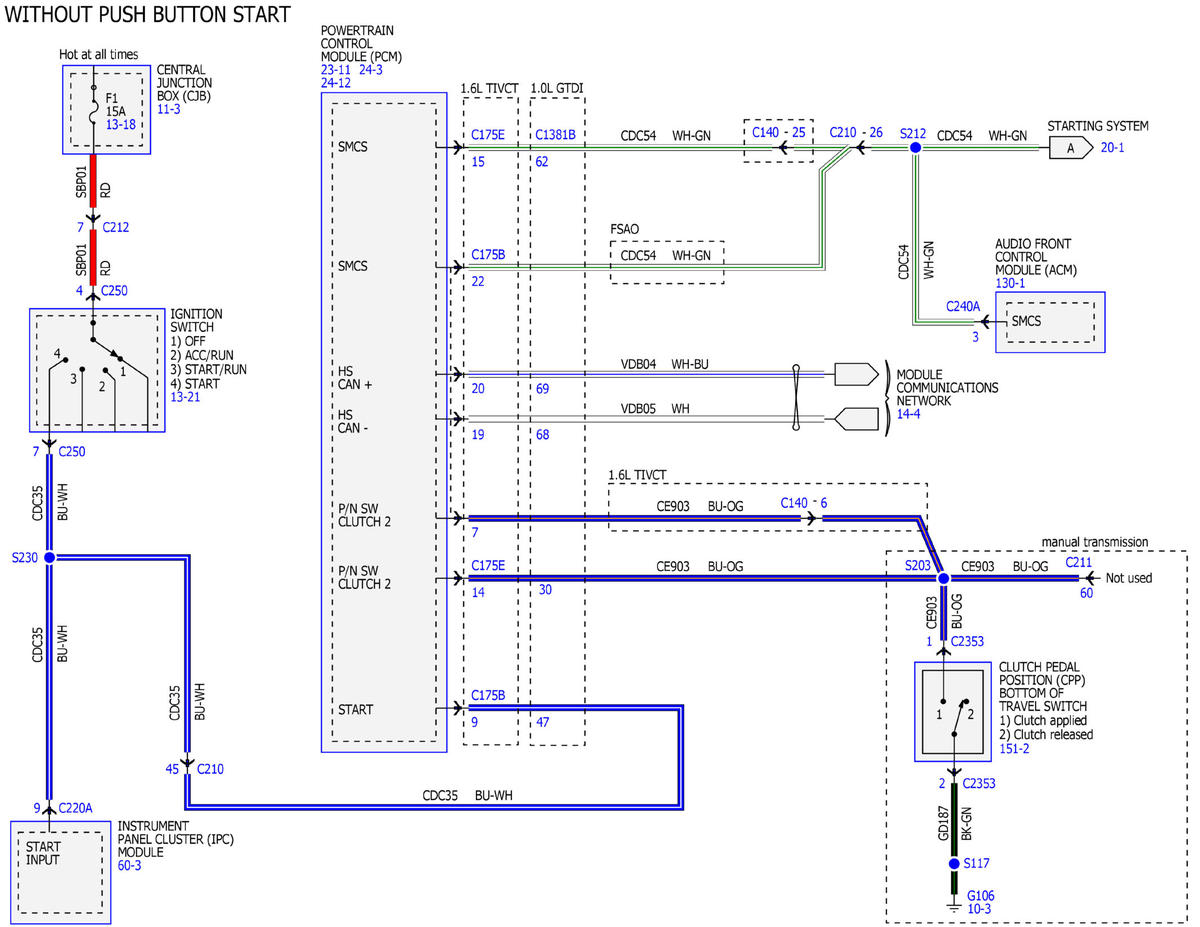

Fig 1: Starting System Wiring Diagram (1 of 5)
GFDWR17872Courtesy of FORD MOTOR COMPANY

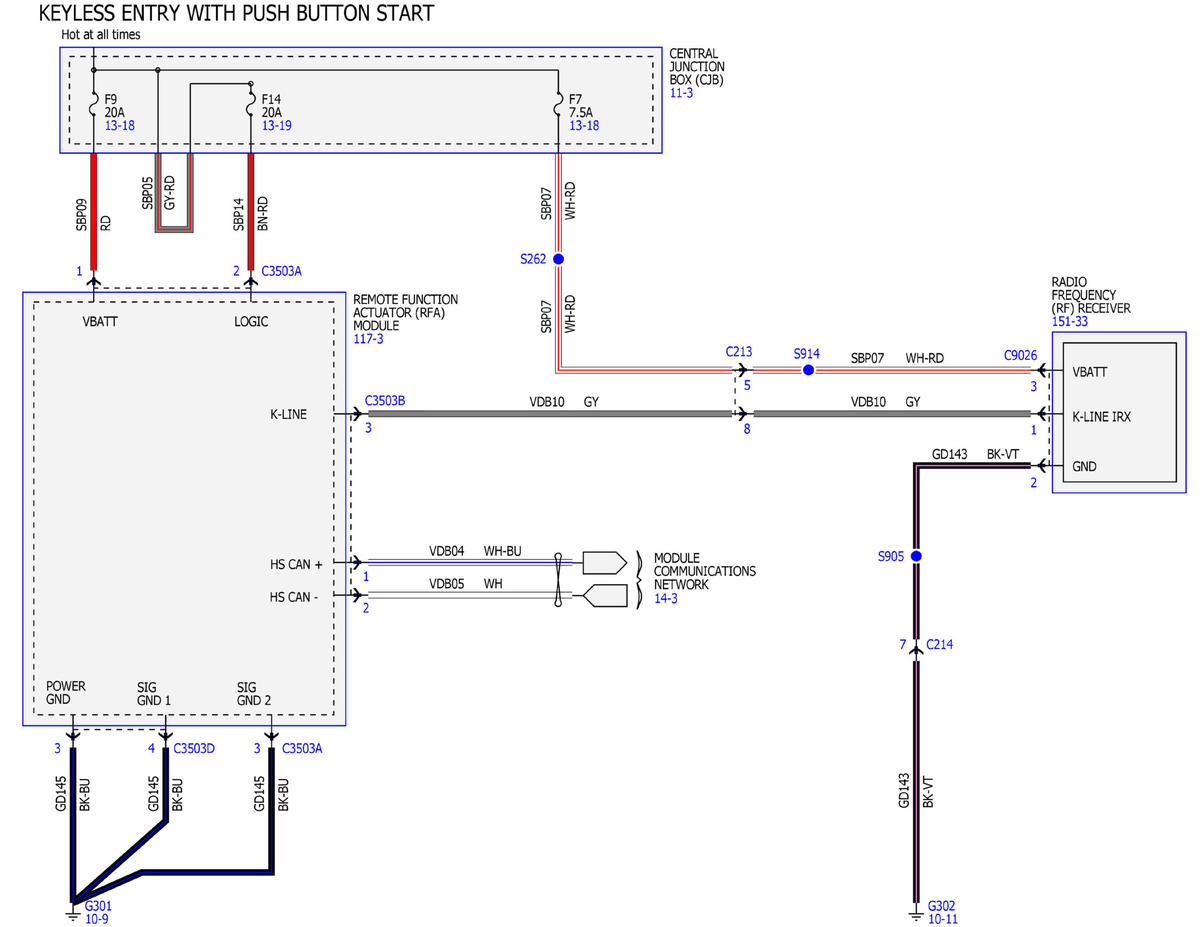

Fig 2: Starting System Wiring Diagram (2 of 5)
GFDWR17873Courtesy of FORD MOTOR COMPANY

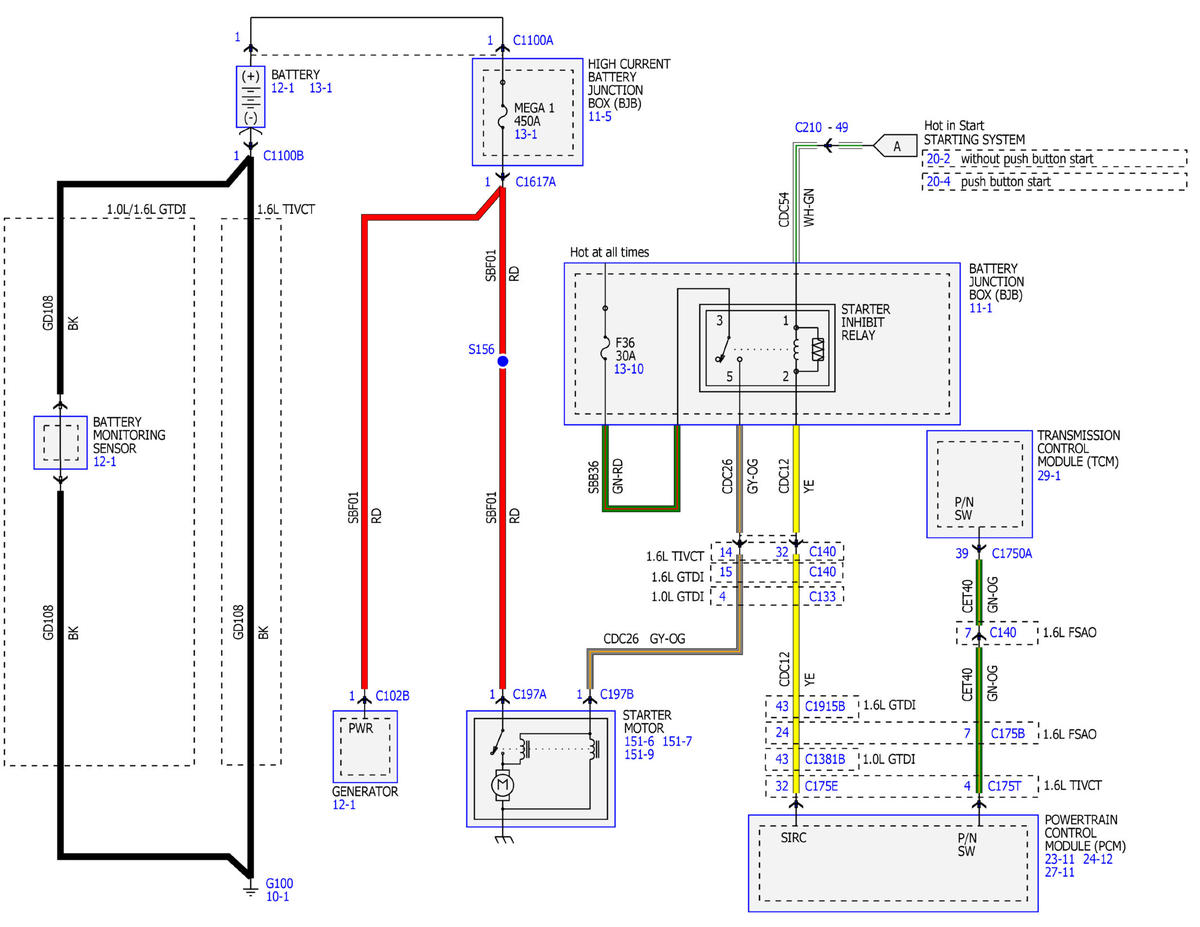

Fig 3: Starting System Wiring Diagram (3 of 5)
GFDWR17874Courtesy of FORD MOTOR COMPANY

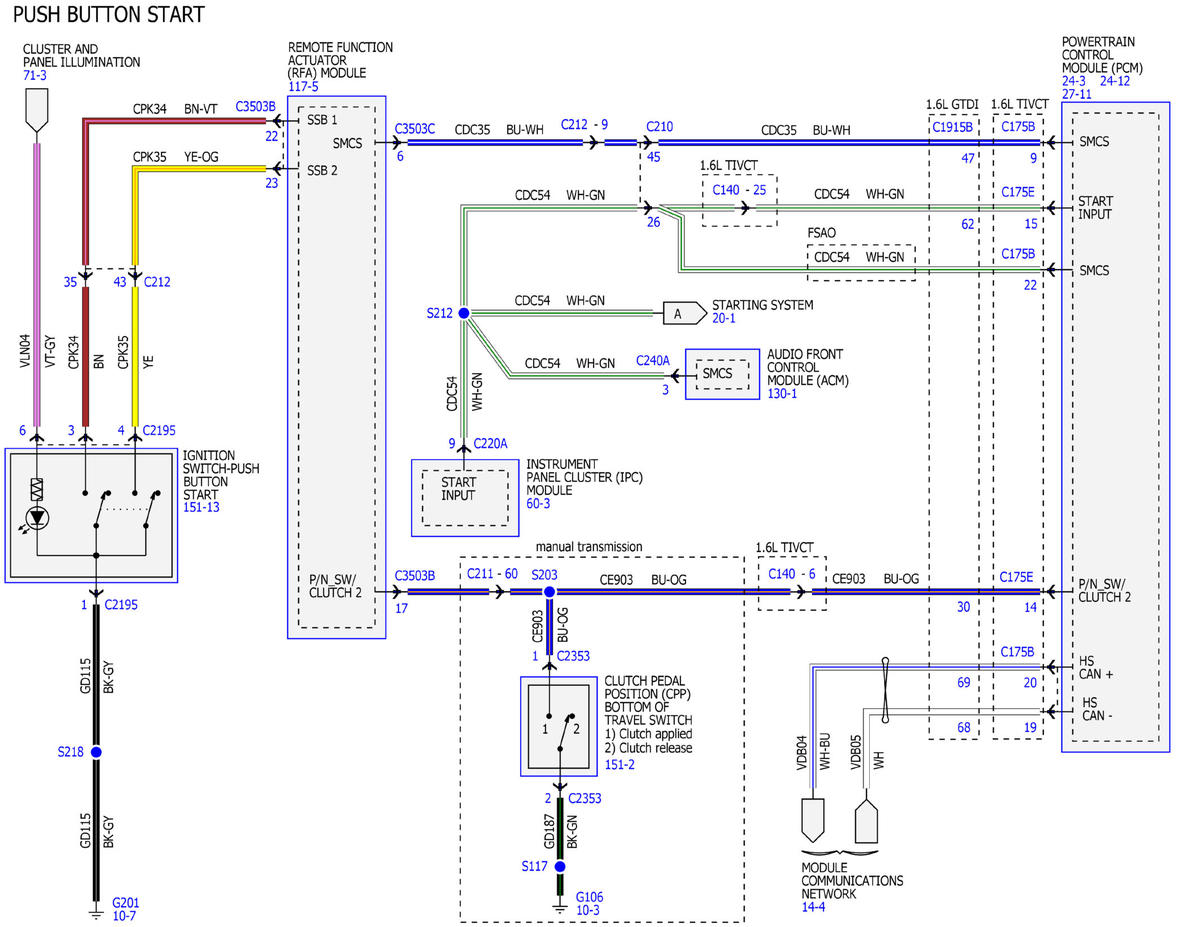

Fig 4: Starting System Wiring Diagram (4 of 5)
GFDWR17875Courtesy of FORD MOTOR COMPANY

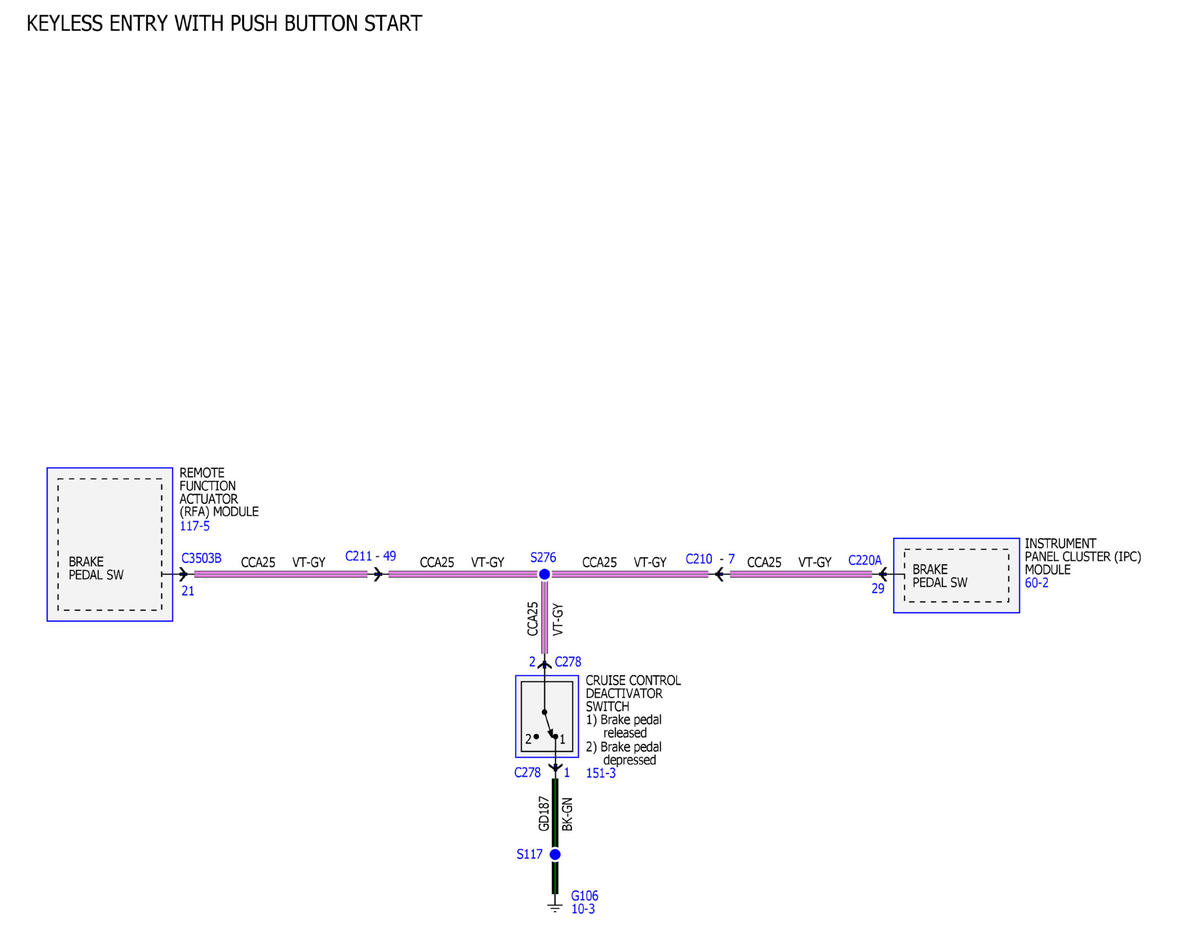

Fig 5: Starting System Wiring Diagram (5 of 5)
GFDWR17876Courtesy of FORD MOTOR COMPANY
