Power Distribution

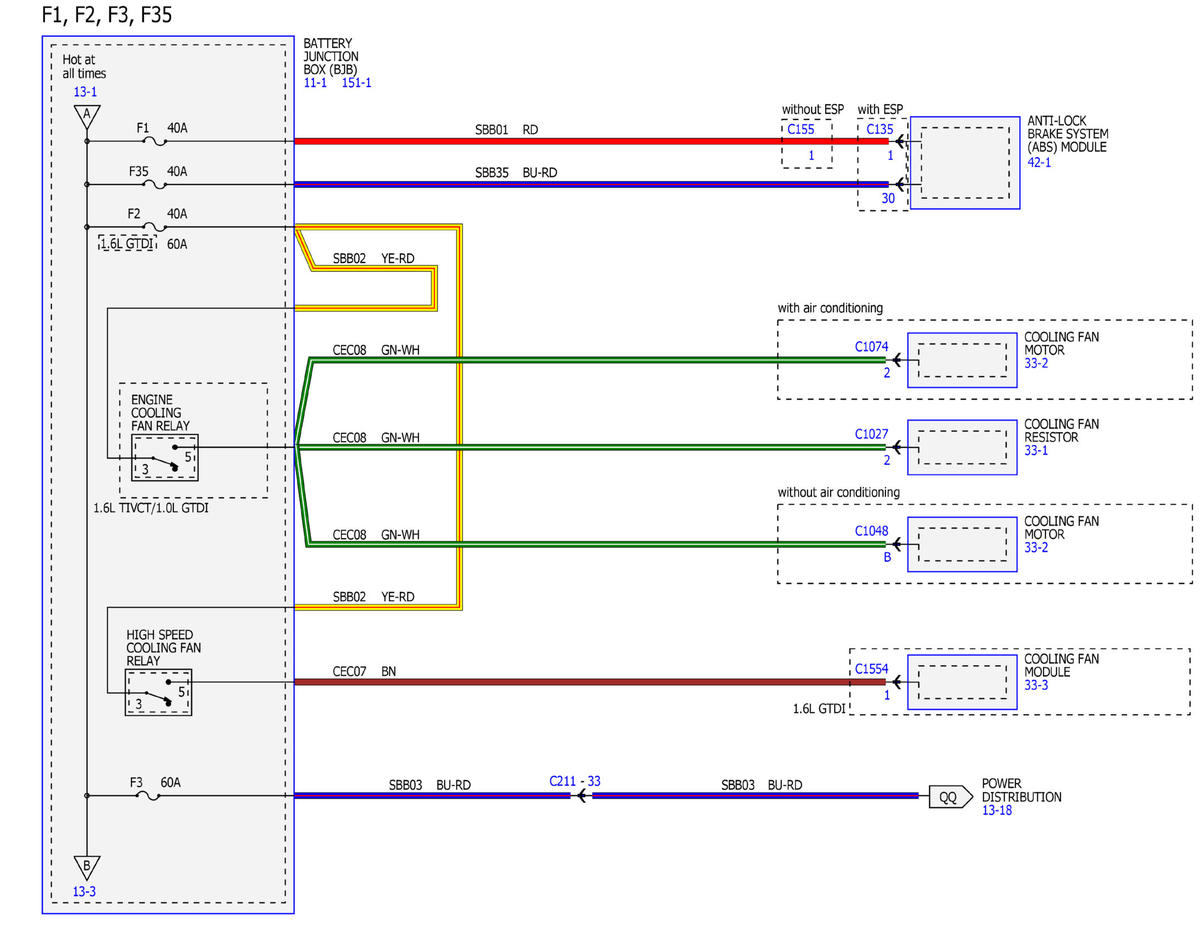

Fig 1: Power Distribution Wiring Diagram (1 of 24)

GFDWR17828

Courtesy of FORD MOTOR COMPANY

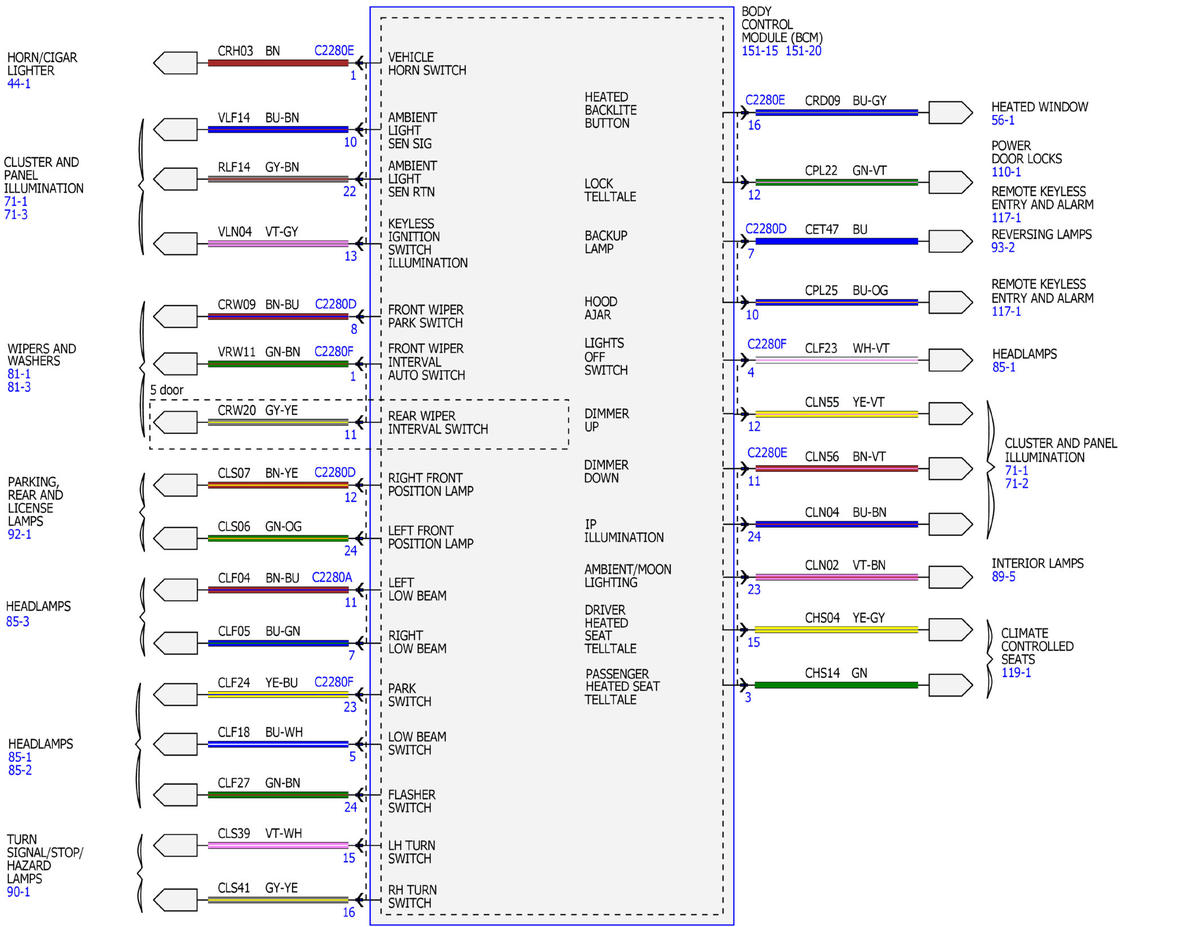

Fig 2: Power Distribution Wiring Diagram (2 of 24)

GFDWR17829

Courtesy of FORD MOTOR COMPANY

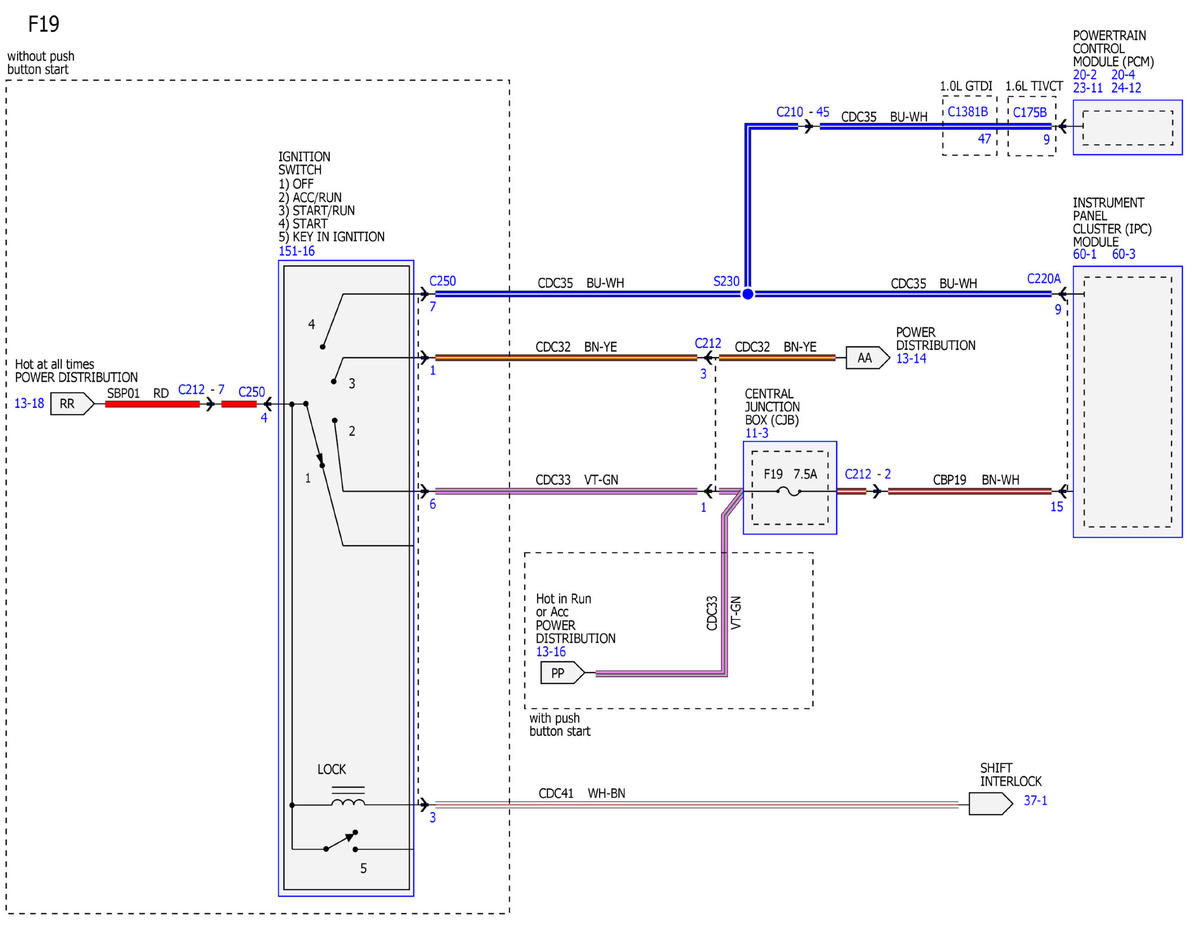

Fig 3: Power Distribution Wiring Diagram (3 of 24)

GFDWR17830

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution Wiring Diagram (4 of 24)

GFDWR17831

Courtesy of FORD MOTOR COMPANY

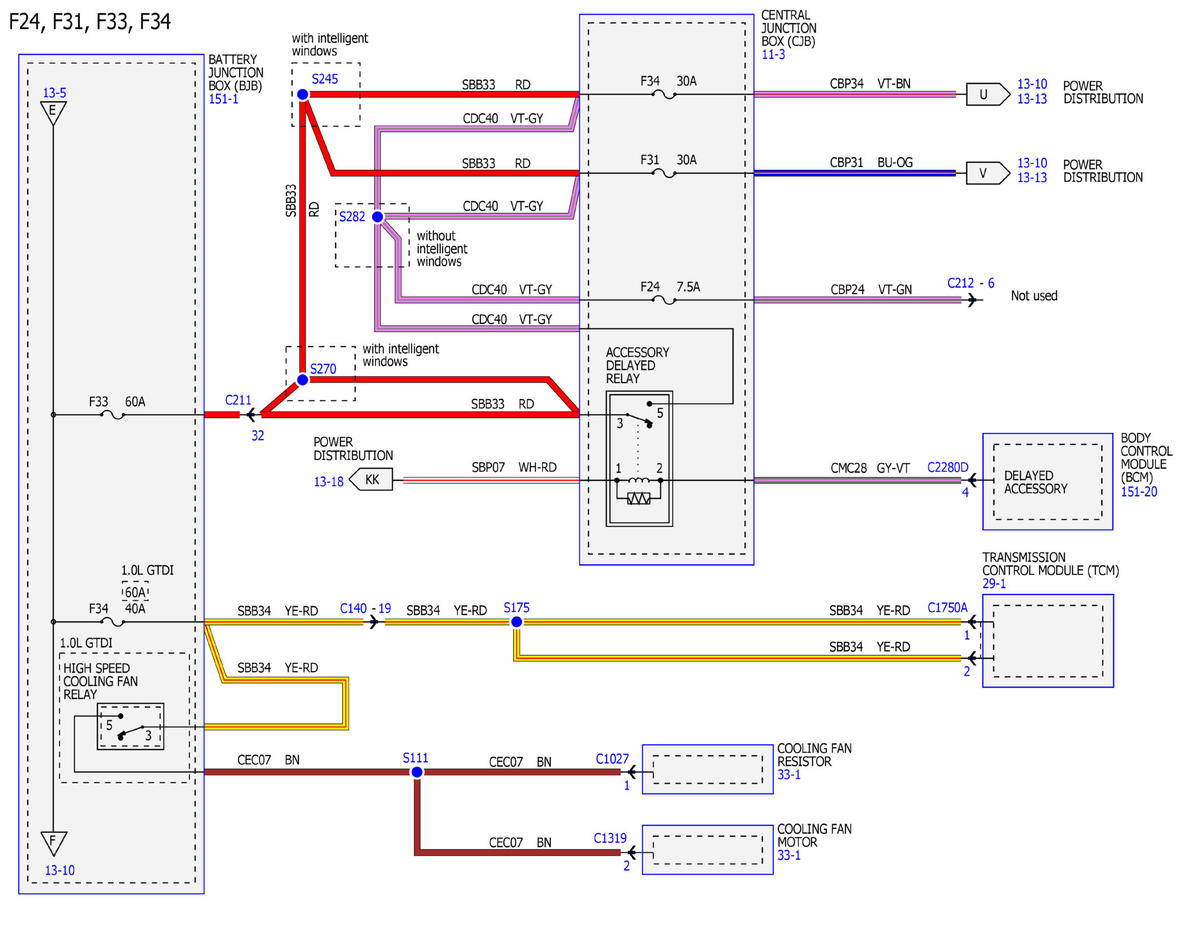

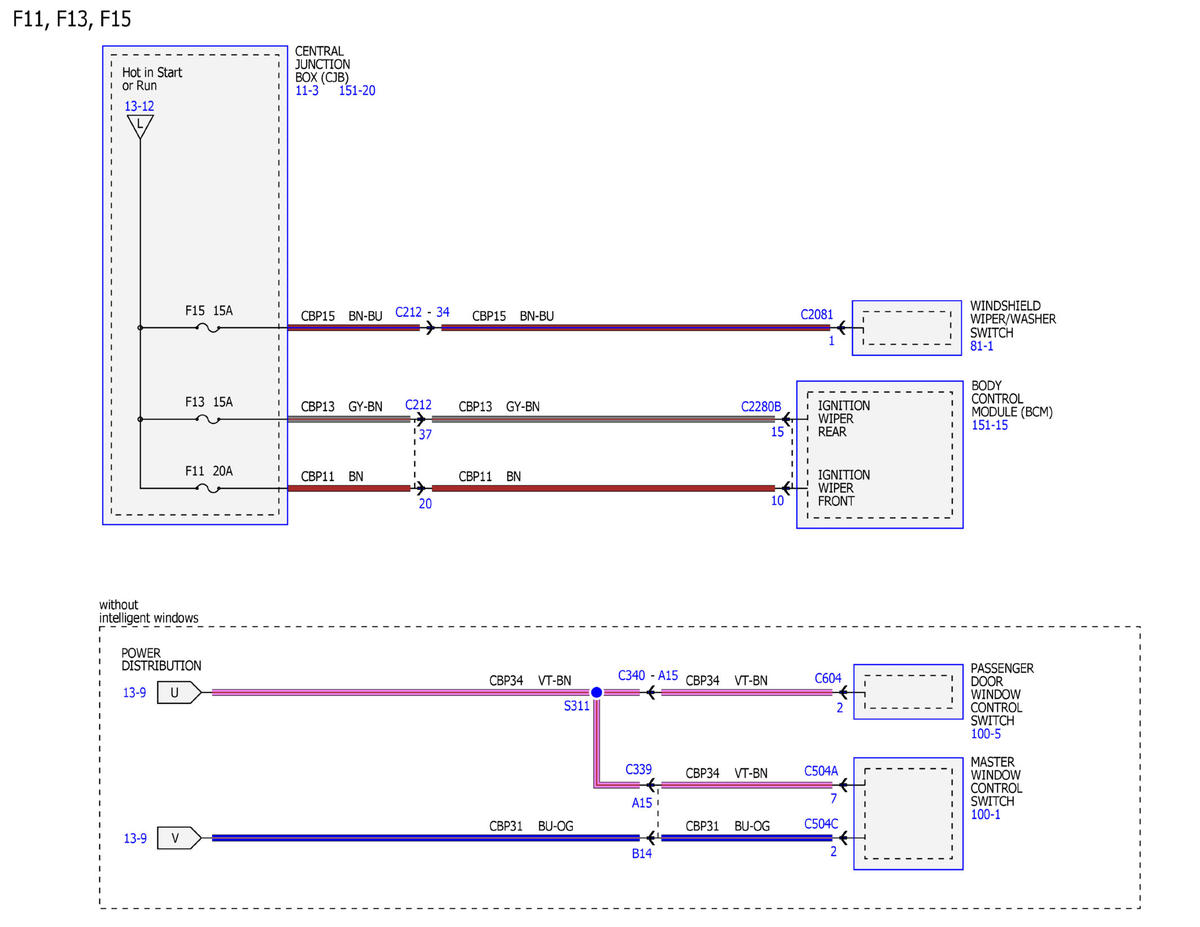

Fig 5: Power Distribution Wiring Diagram (5 of 24)

GFDWR17832

Courtesy of FORD MOTOR COMPANY

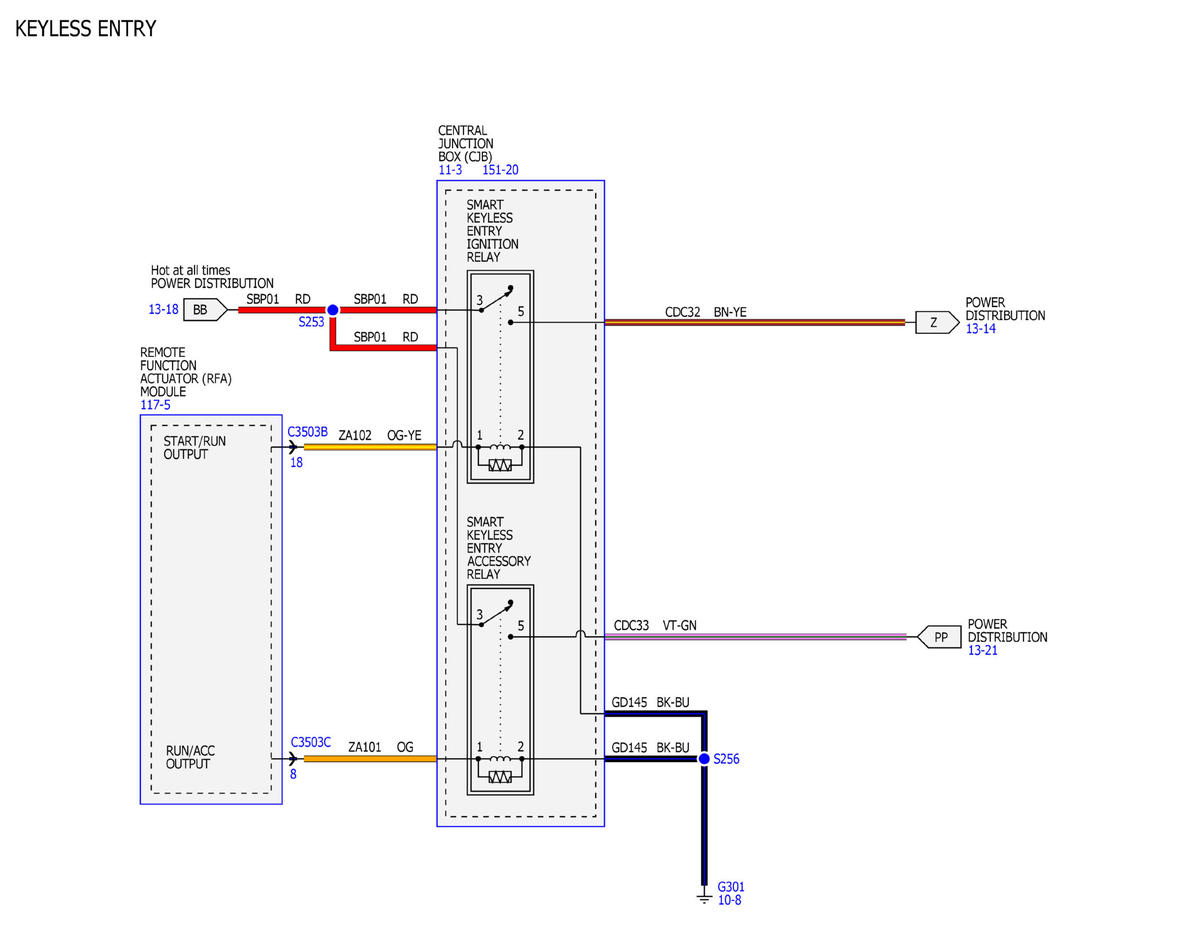

Fig 6: Power Distribution Wiring Diagram (6 of 24)

GFDWR17833

Courtesy of FORD MOTOR COMPANY

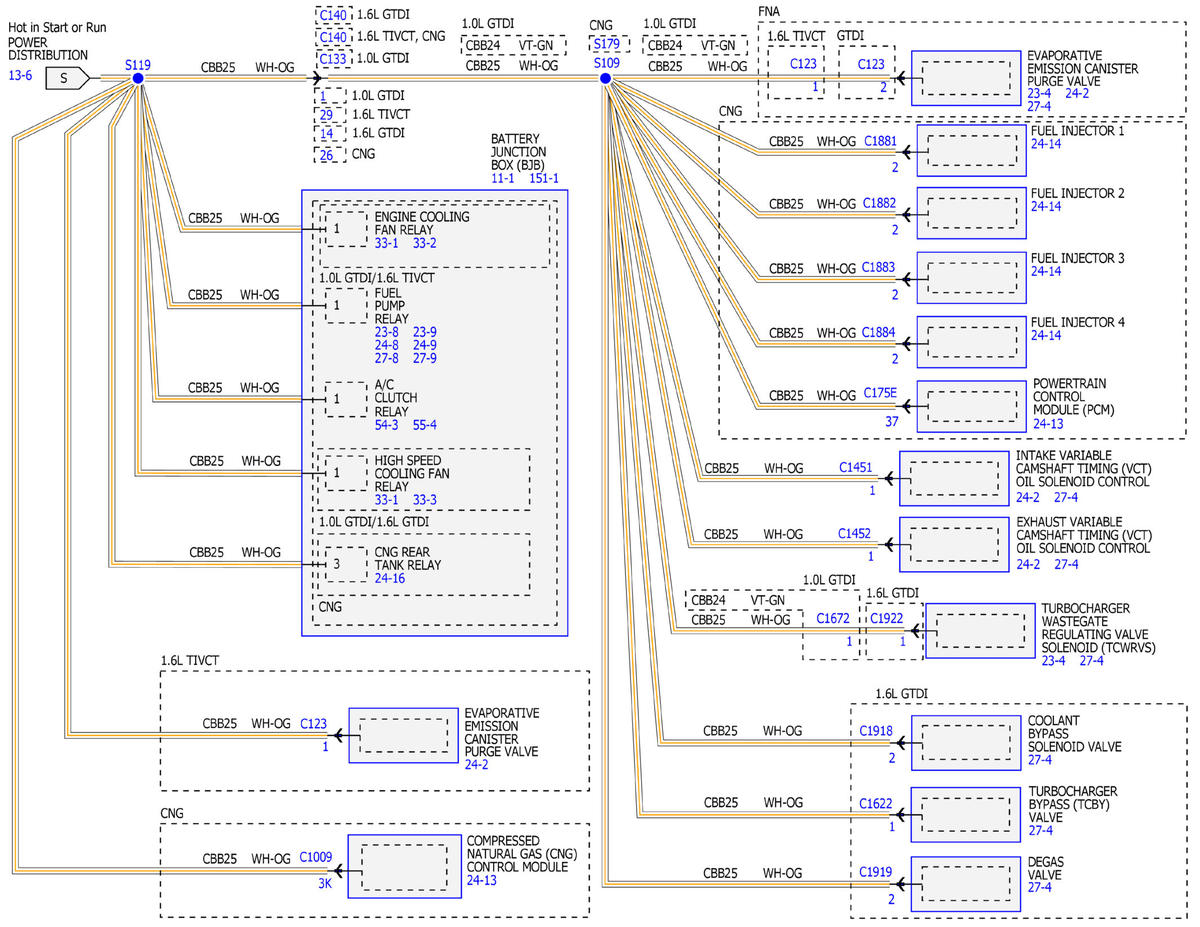

Fig 7: Power Distribution Wiring Diagram (7 of 24)

GFDWR17834

Courtesy of FORD MOTOR COMPANY

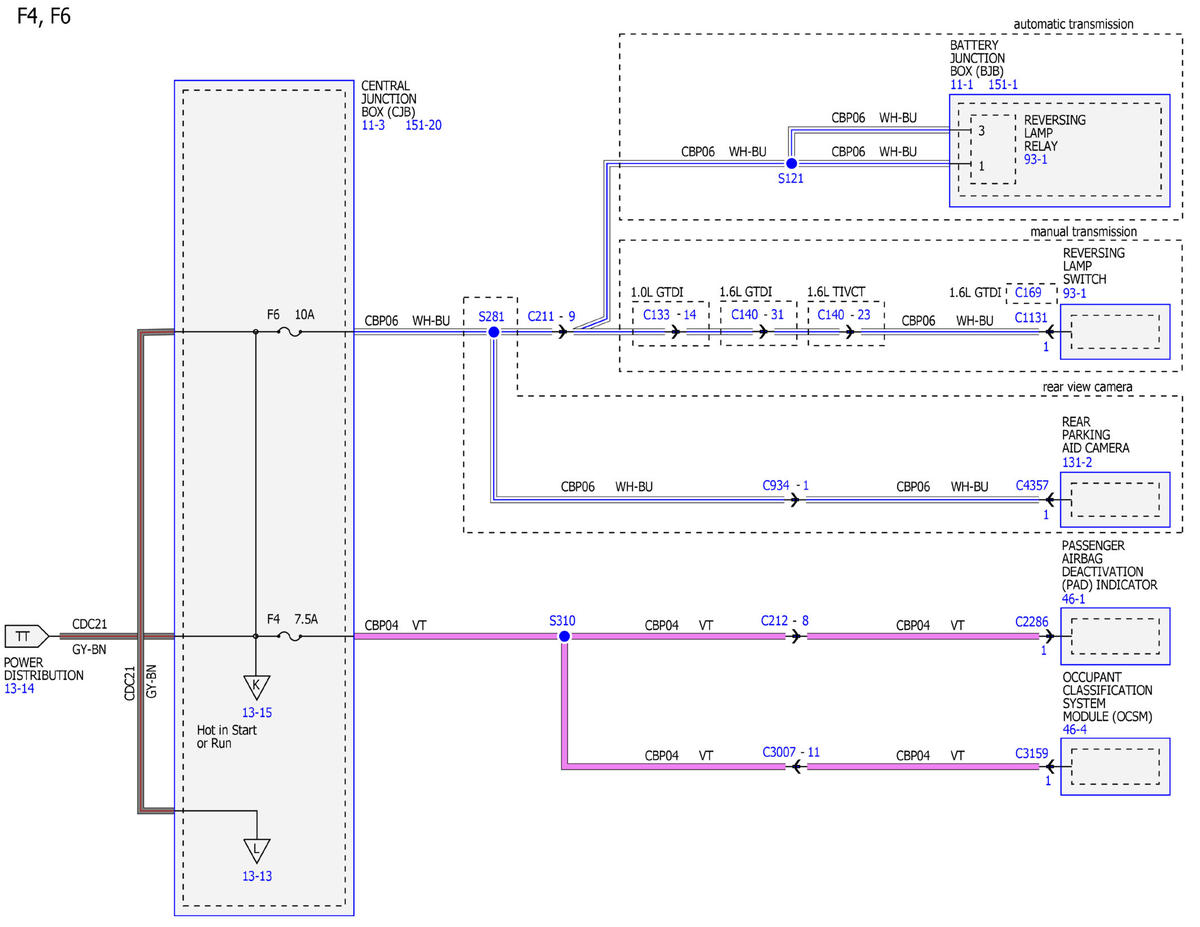

Fig 8: Power Distribution Wiring Diagram (8 of 24)

GFDWR17835

Courtesy of FORD MOTOR COMPANY

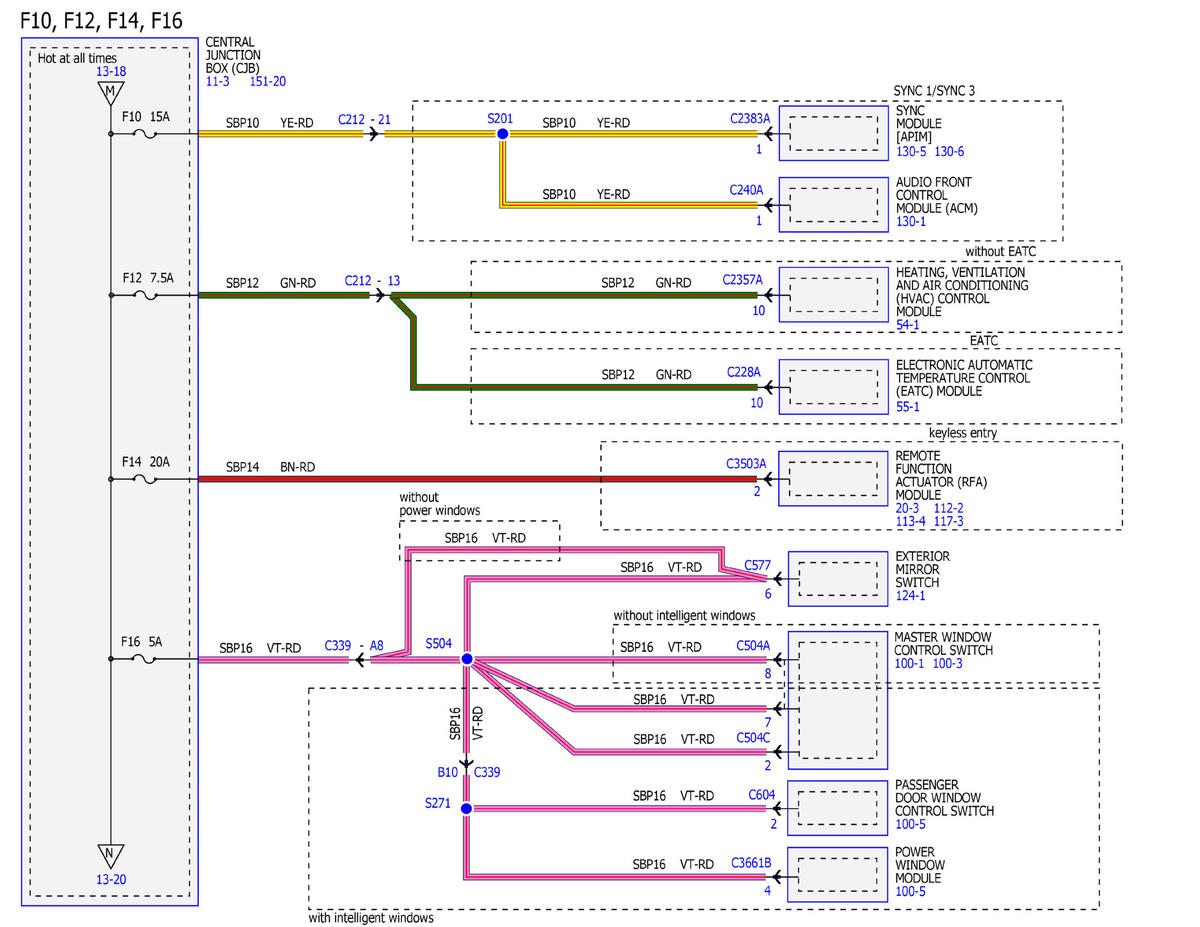

Fig 9: Power Distribution Wiring Diagram (9 of 24)

GFDWR17836

Courtesy of FORD MOTOR COMPANY

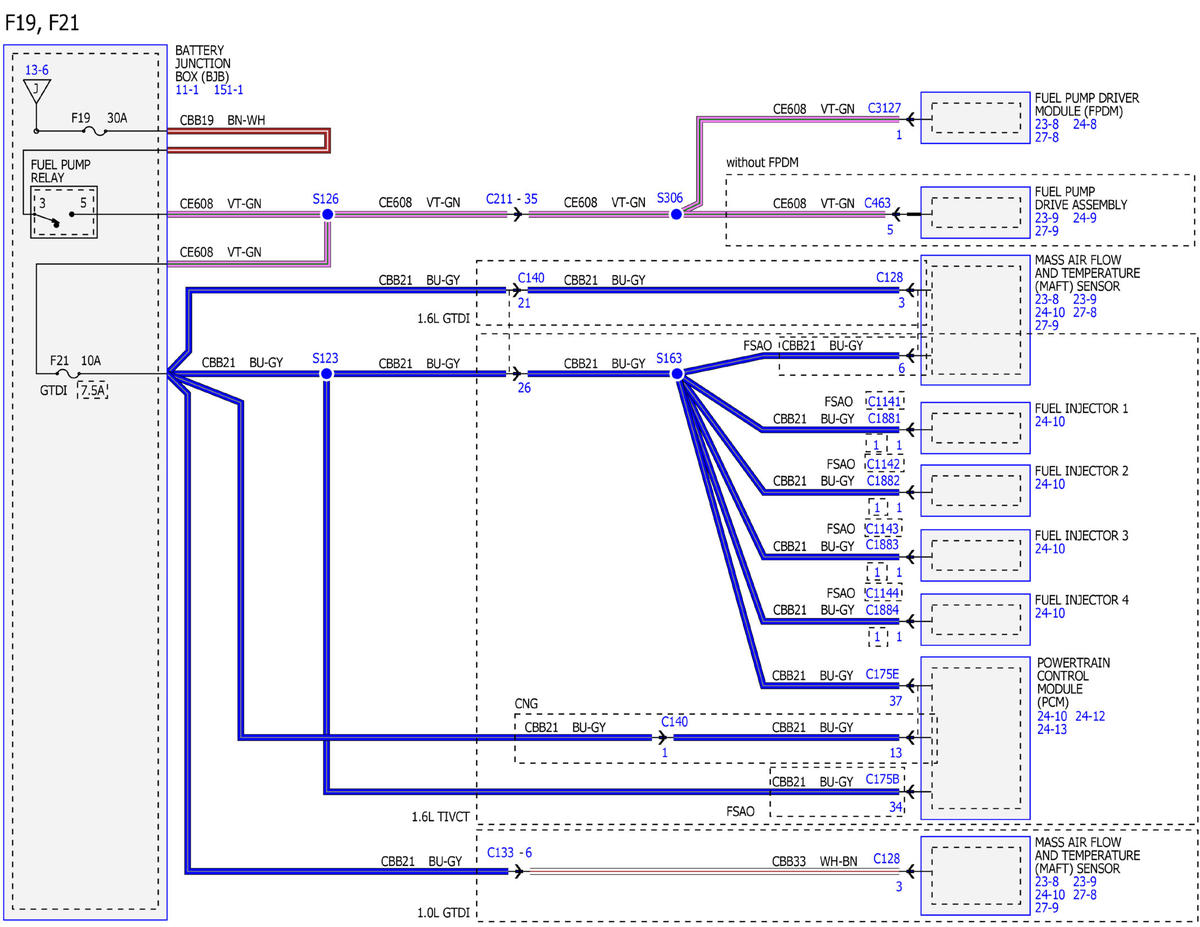

Fig 10: Power Distribution Wiring Diagram (10 of 24)

GFDWR17837

Courtesy of FORD MOTOR COMPANY

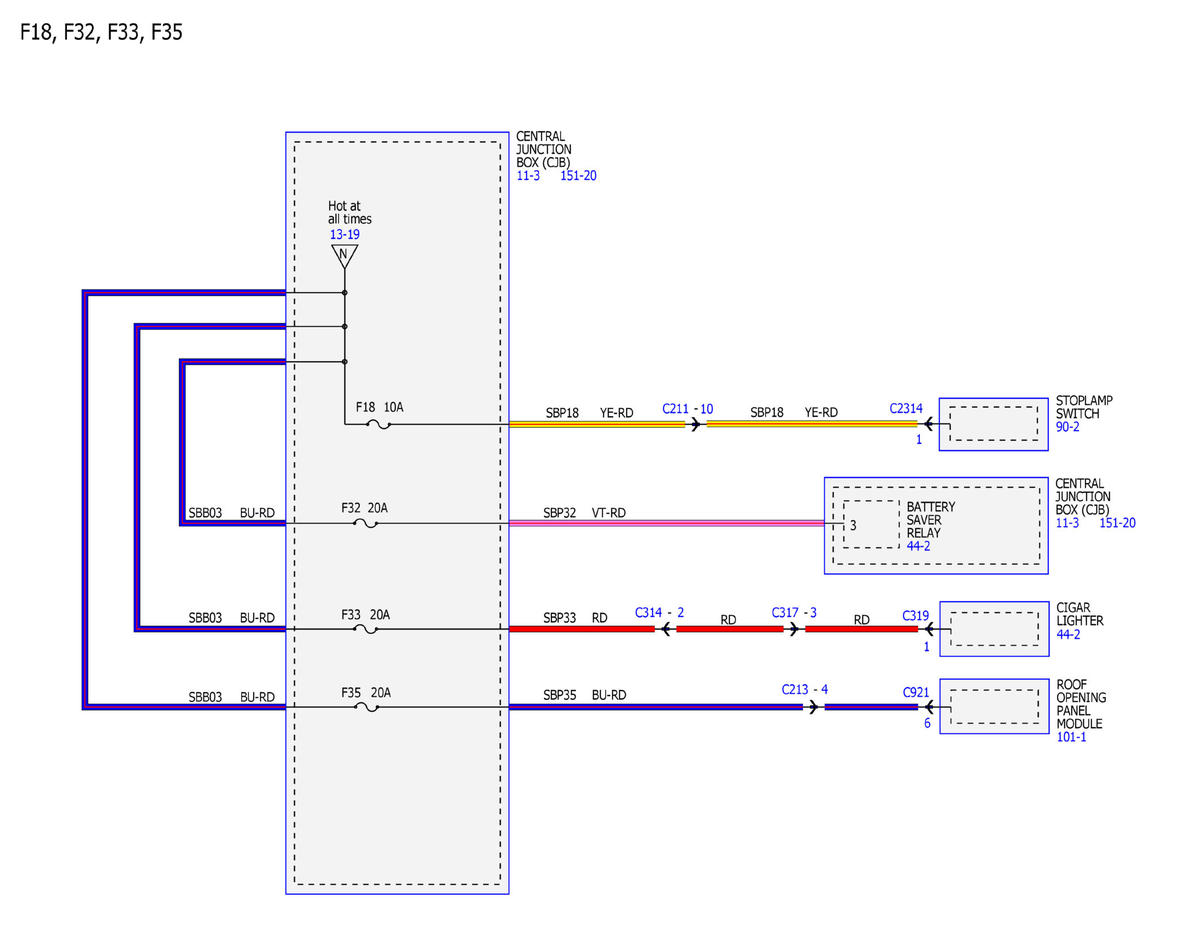

Fig 11: Power Distribution Wiring Diagram (11 of 24)

GFDWR17838

Courtesy of FORD MOTOR COMPANY

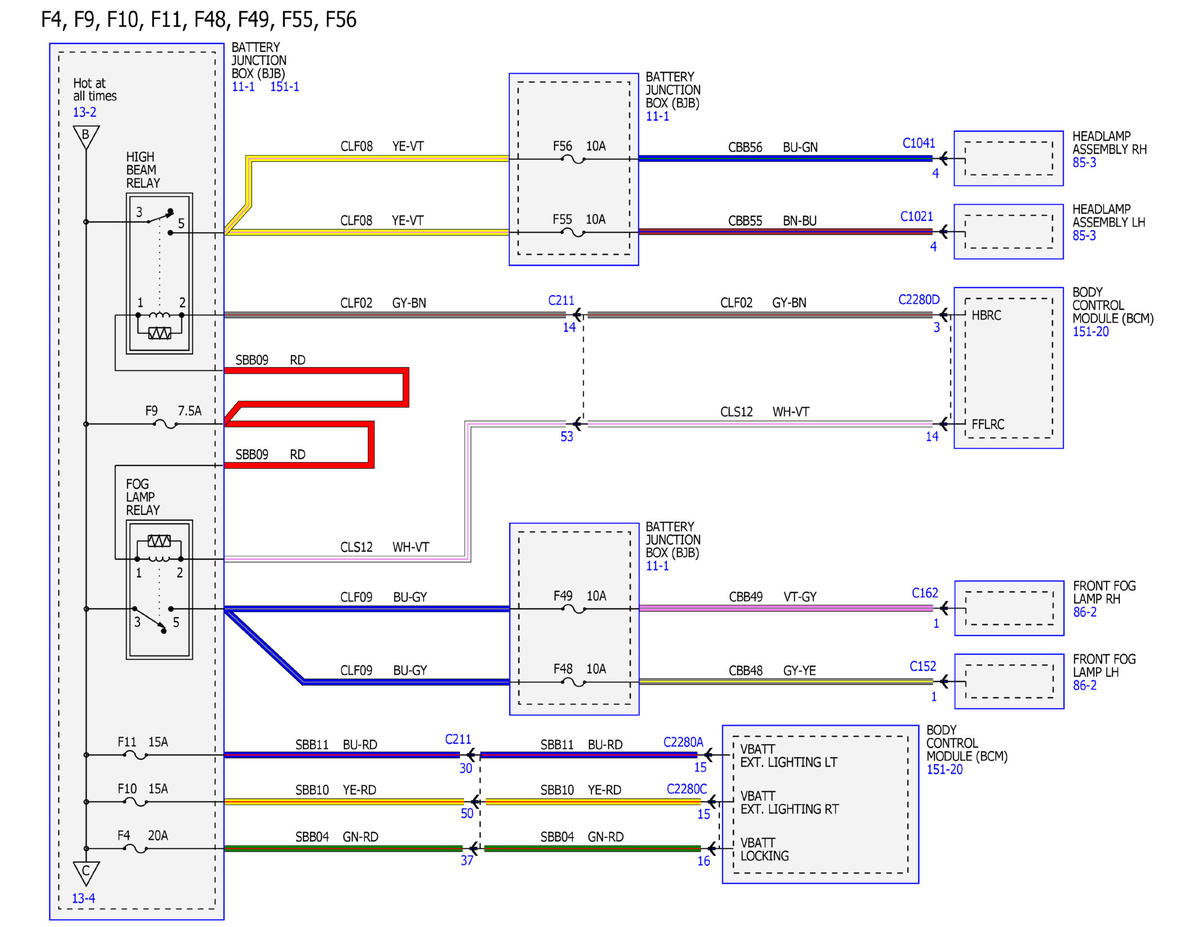

Fig 12: Power Distribution Wiring Diagram (12 of 24)

GFDWR17839

Courtesy of FORD MOTOR COMPANY

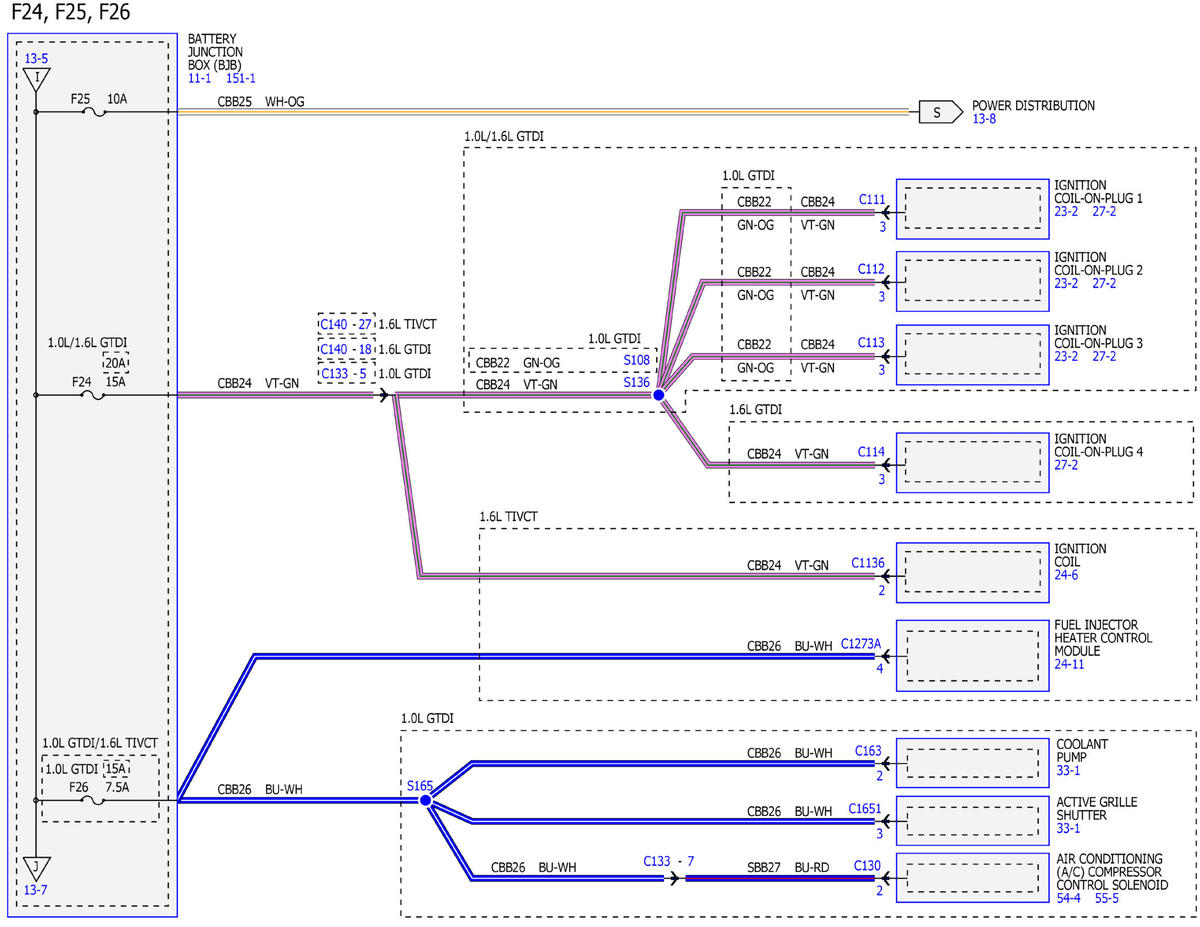

Fig 13: Power Distribution Wiring Diagram (13 of 24)

GFDWR17840

Courtesy of FORD MOTOR COMPANY

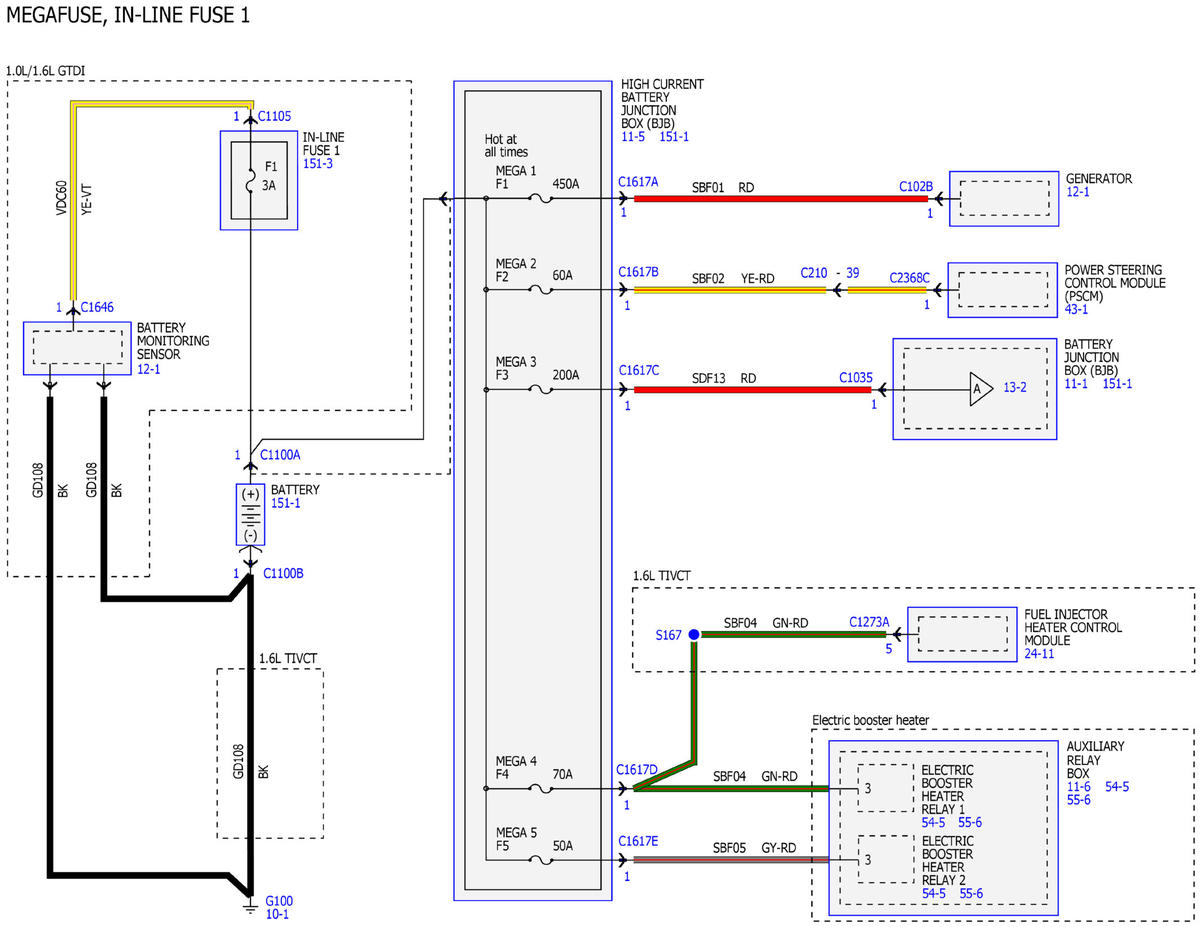

Fig 14: Power Distribution Wiring Diagram (14 of 24)

GFDWR17841

Courtesy of FORD MOTOR COMPANY

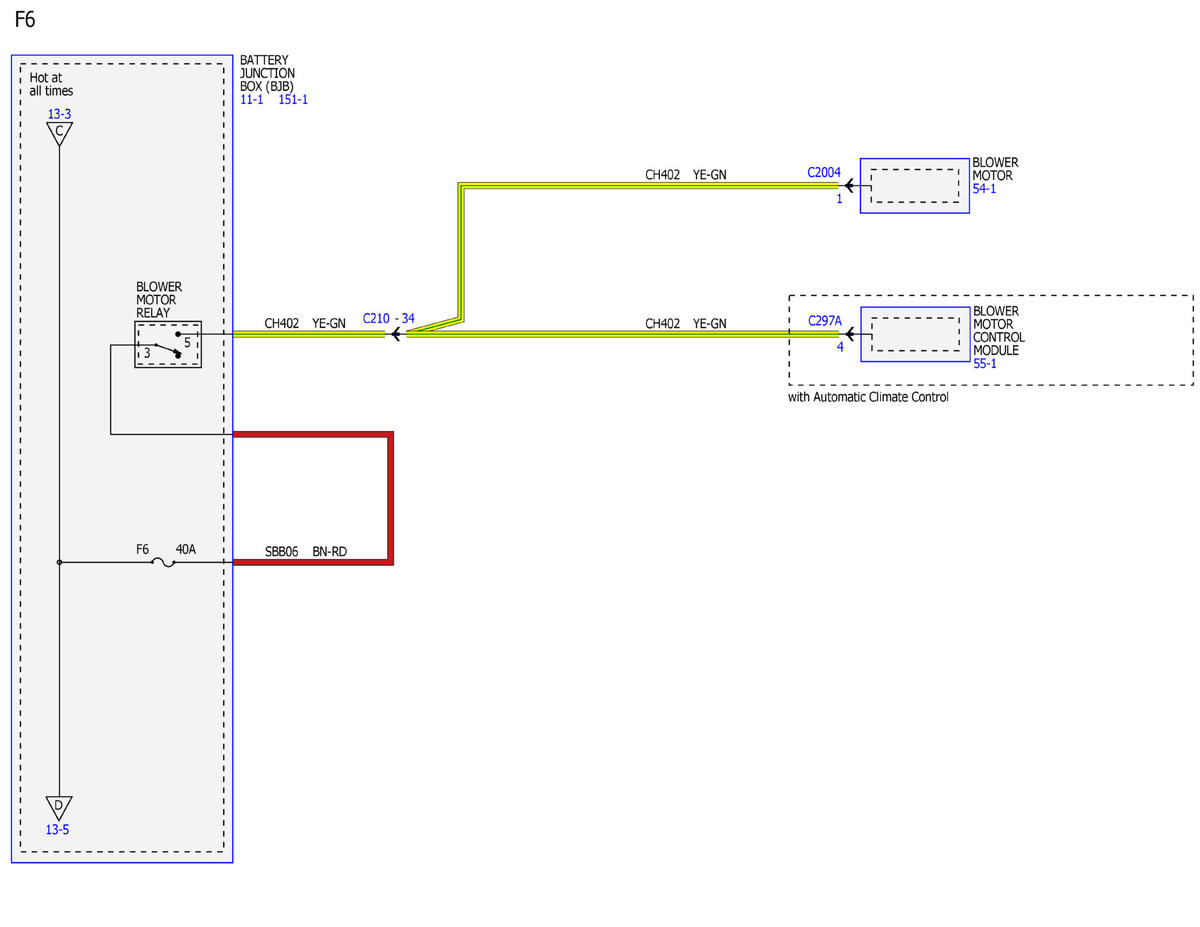

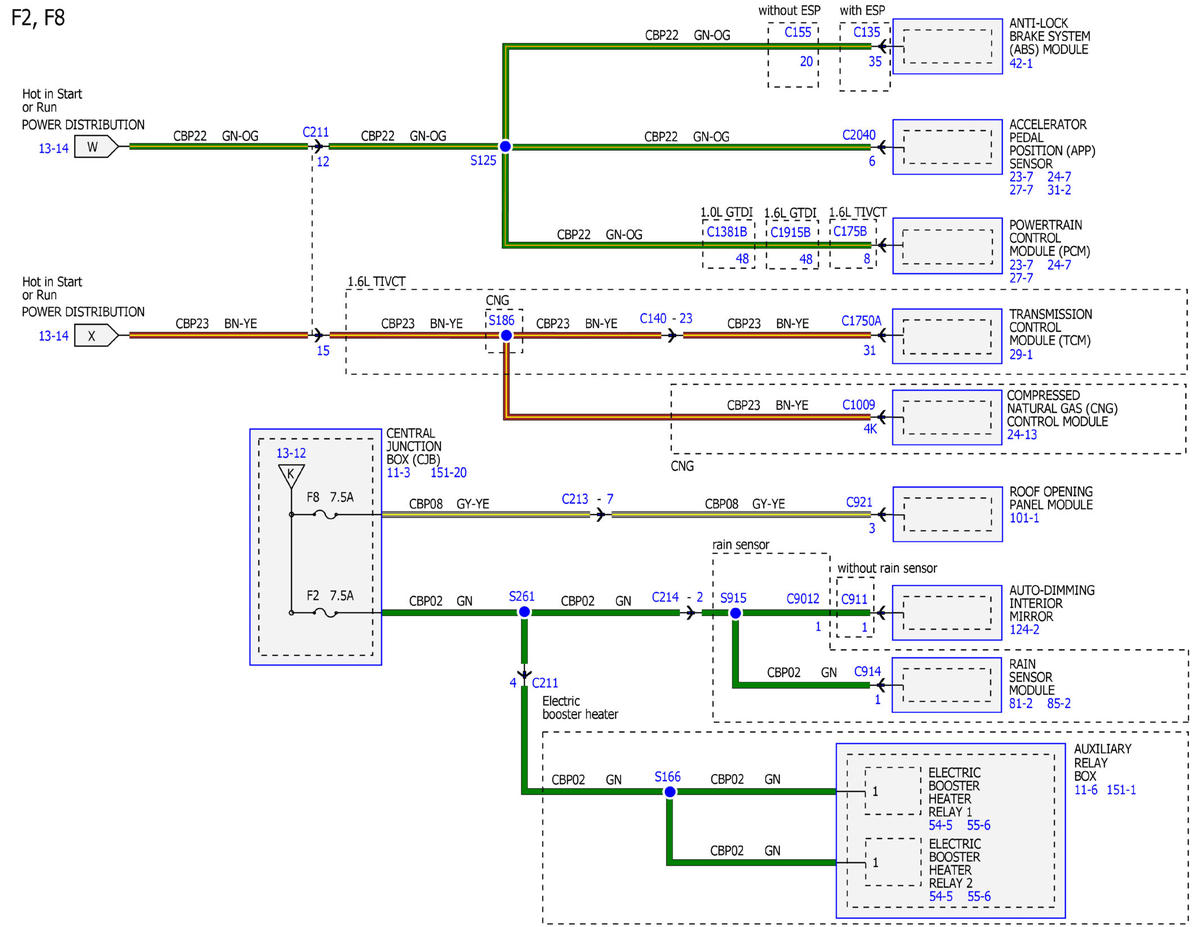

Fig 15: Power Distribution Wiring Diagram (15 of 24)

GFDWR17842

Courtesy of FORD MOTOR COMPANY

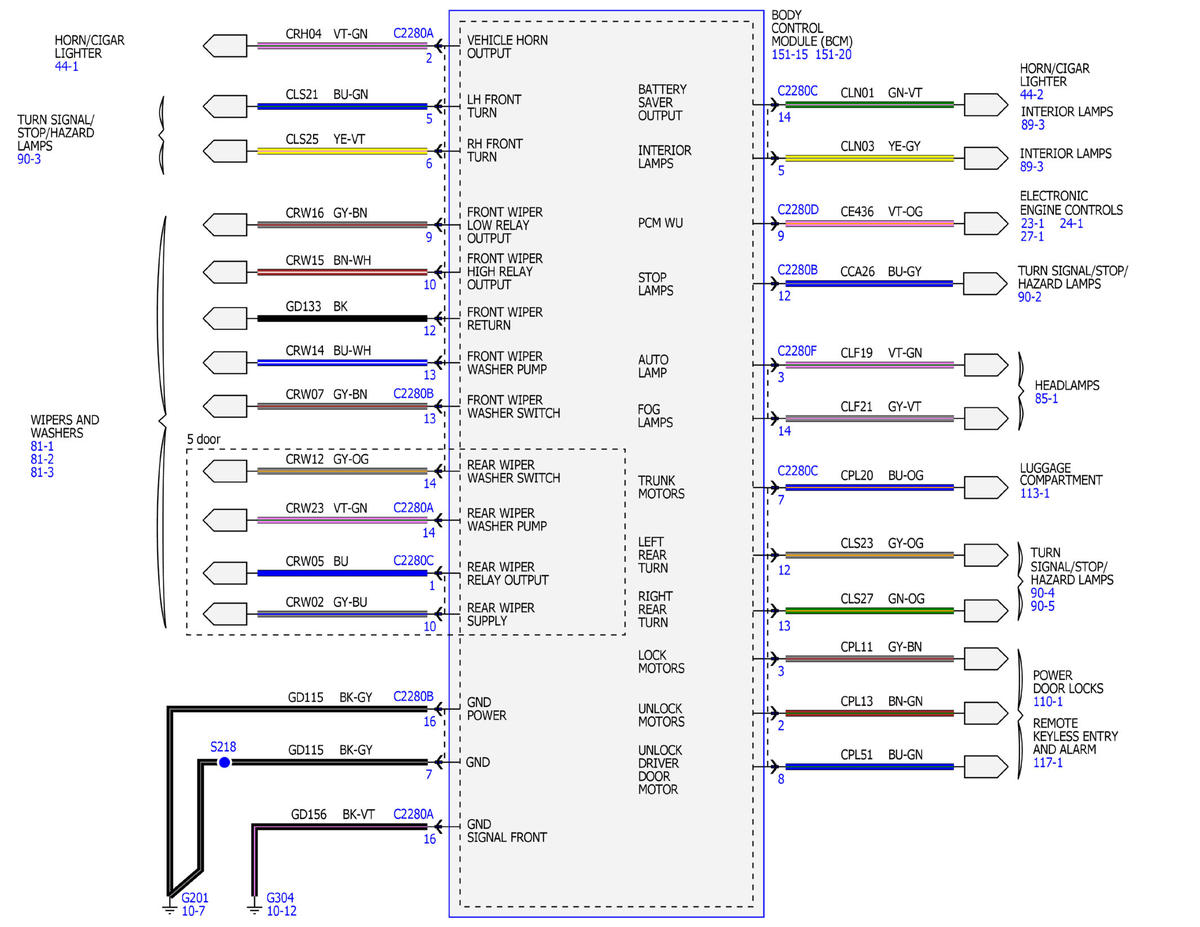

Fig 16: Power Distribution Wiring Diagram (16 of 24)

GFDWR17843

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 of 24)

GFDWR17844

Courtesy of FORD MOTOR COMPANY

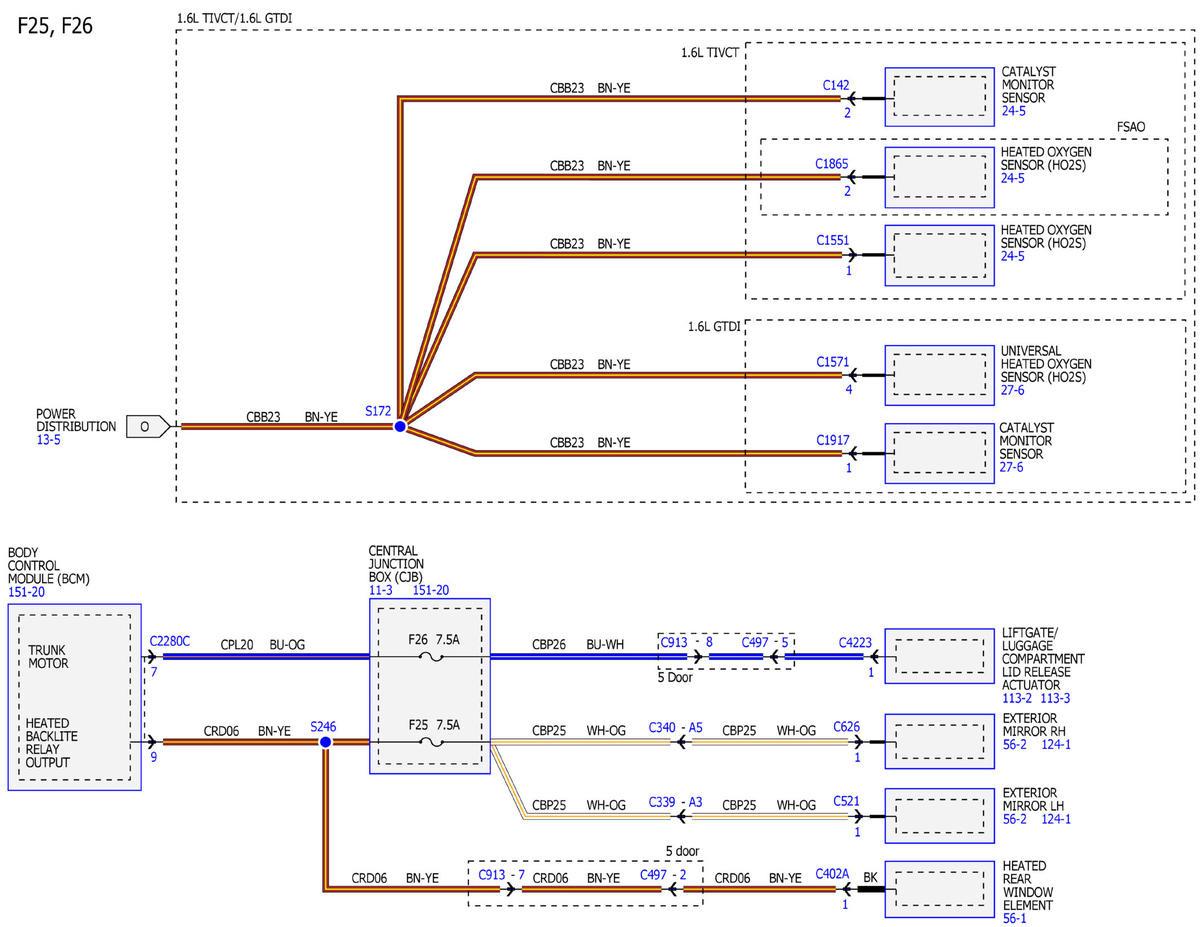

Fig 18: Power Distribution Wiring Diagram (18 of 24)

GFDWR17845

Courtesy of FORD MOTOR COMPANY

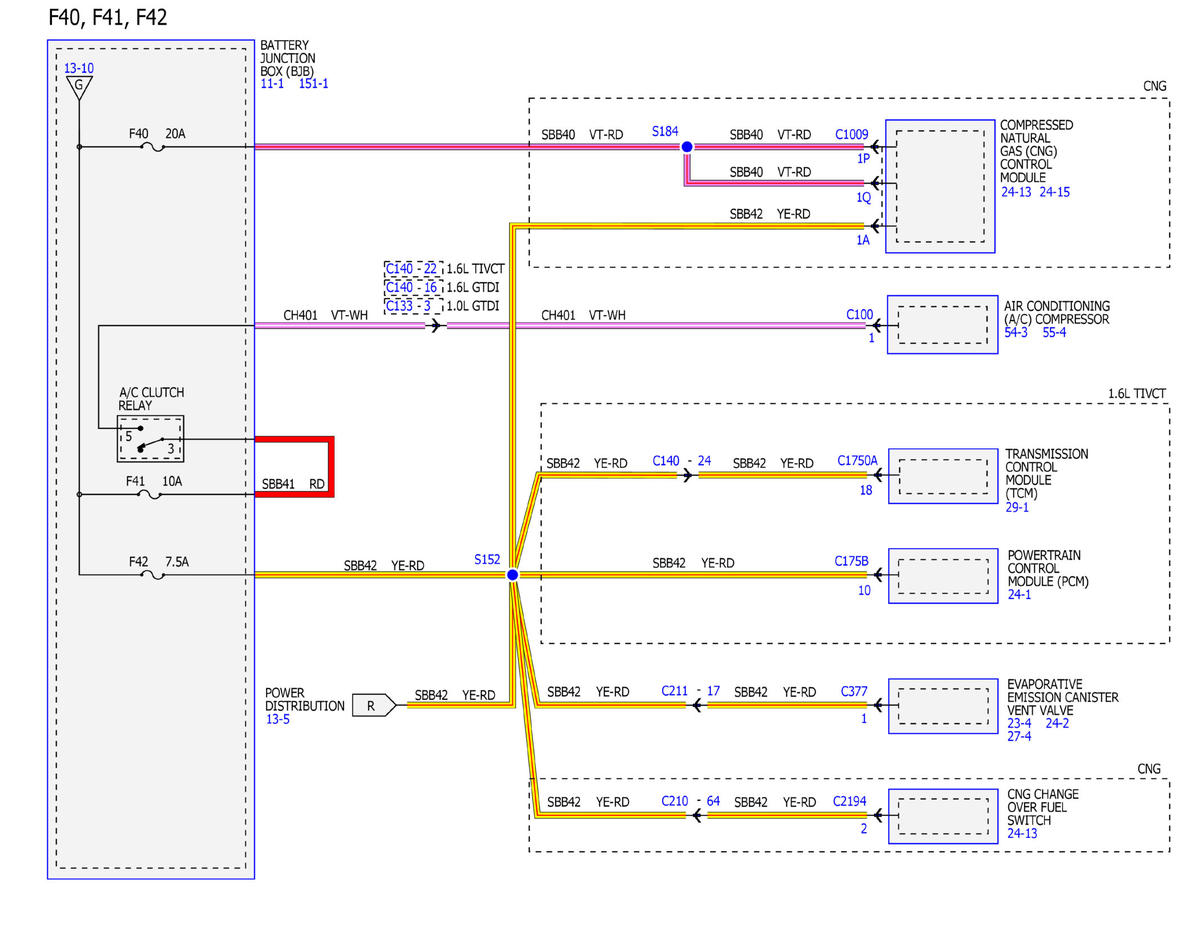

Fig 19: Power Distribution Wiring Diagram (19 of 24)

GFDWR17846

Courtesy of FORD MOTOR COMPANY

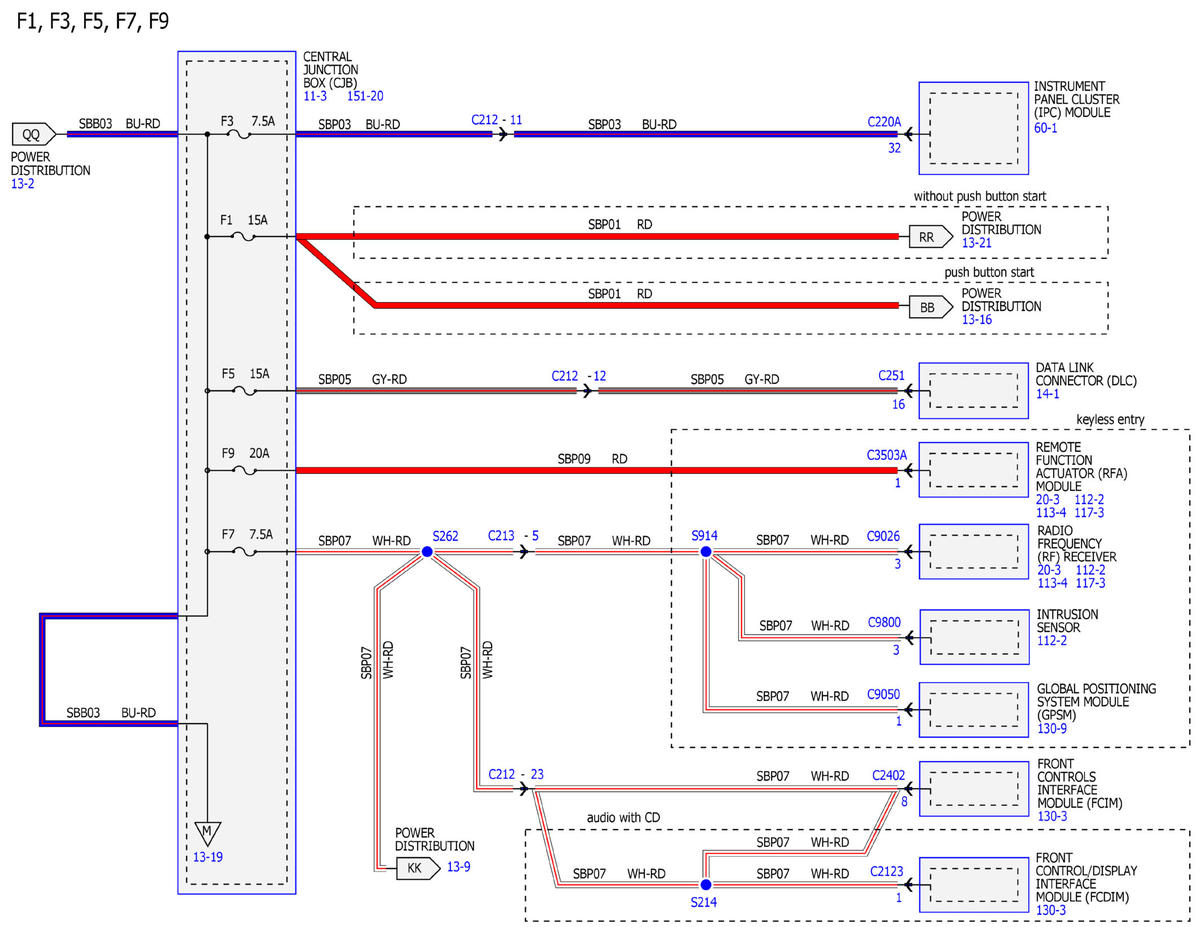

Fig 20: Power Distribution Wiring Diagram (20 of 24)

GFDWR17847

Courtesy of FORD MOTOR COMPANY

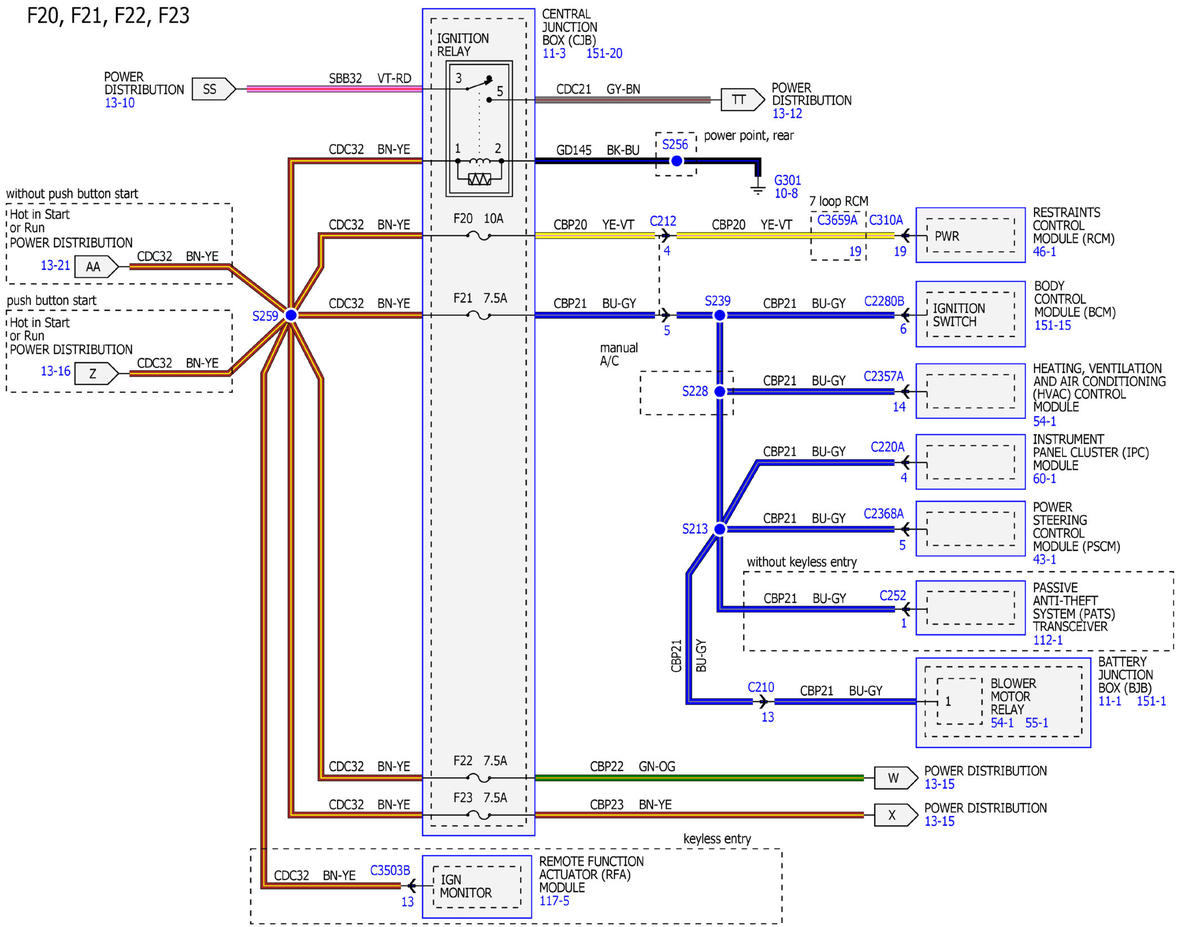

Fig 21: Power Distribution Wiring Diagram (21 of 24)

GFDWR17848

Courtesy of FORD MOTOR COMPANY

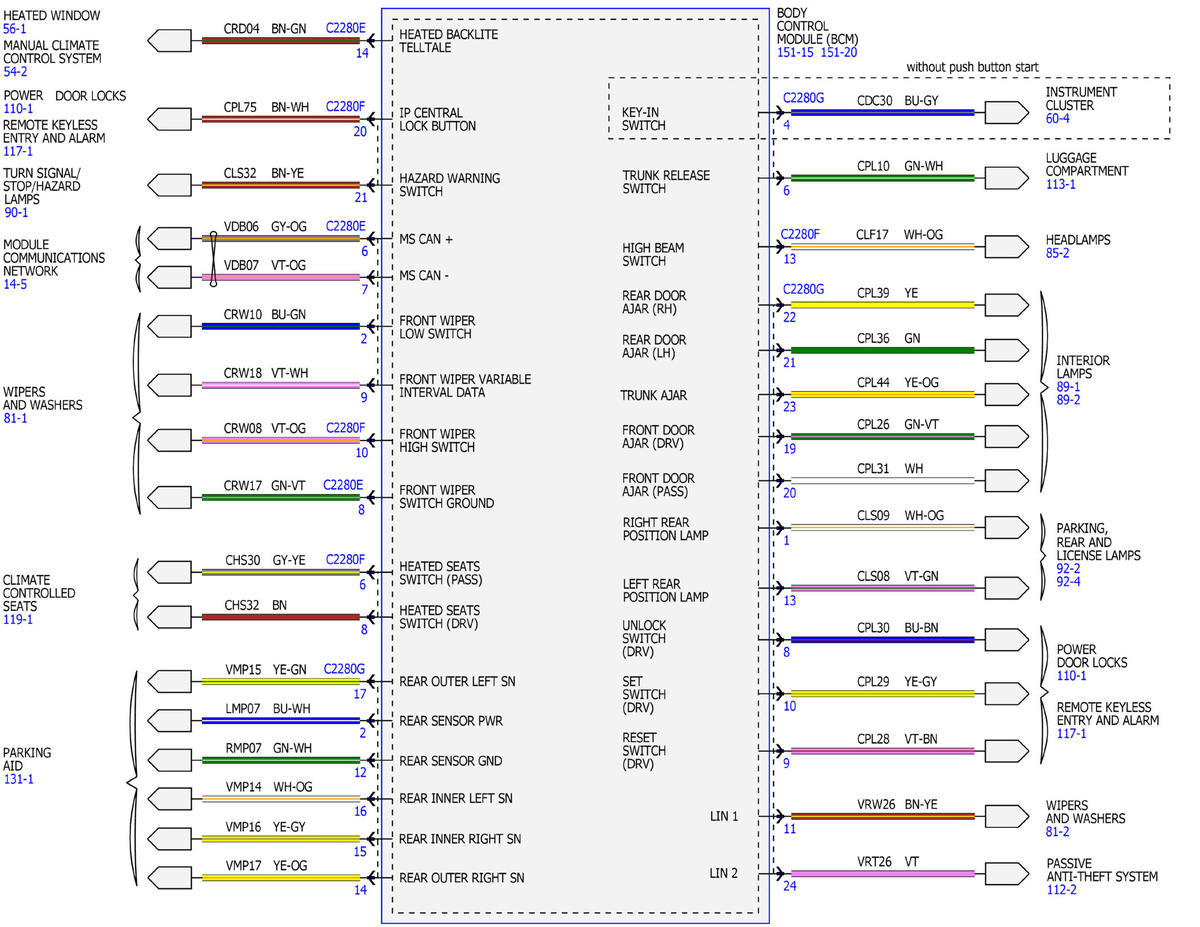

Fig 22: Power Distribution Wiring Diagram (22 of 24)

GFDWR17849

Courtesy of FORD MOTOR COMPANY

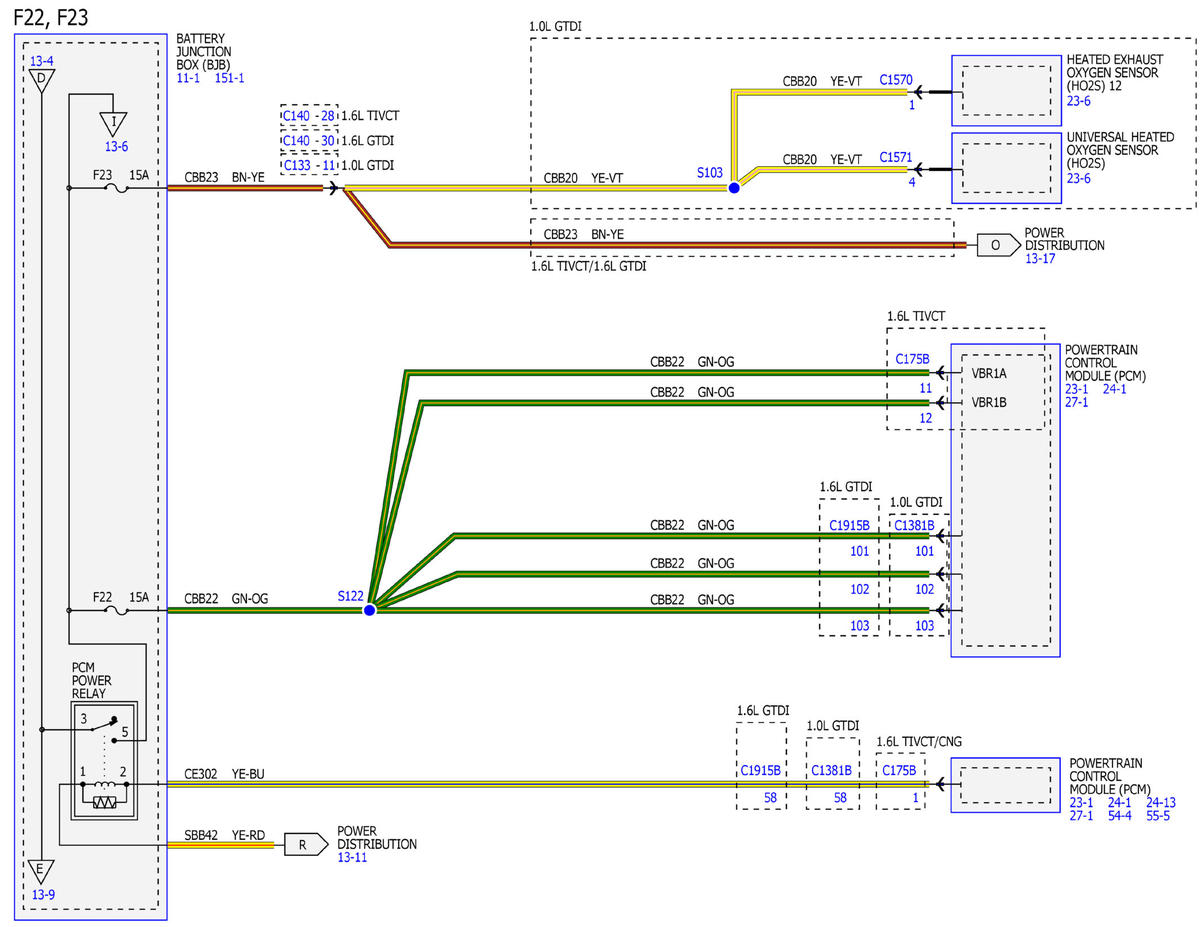

Fig 23: Power Distribution Wiring Diagram (23 of 24)

GFDWR17850

Courtesy of FORD MOTOR COMPANY

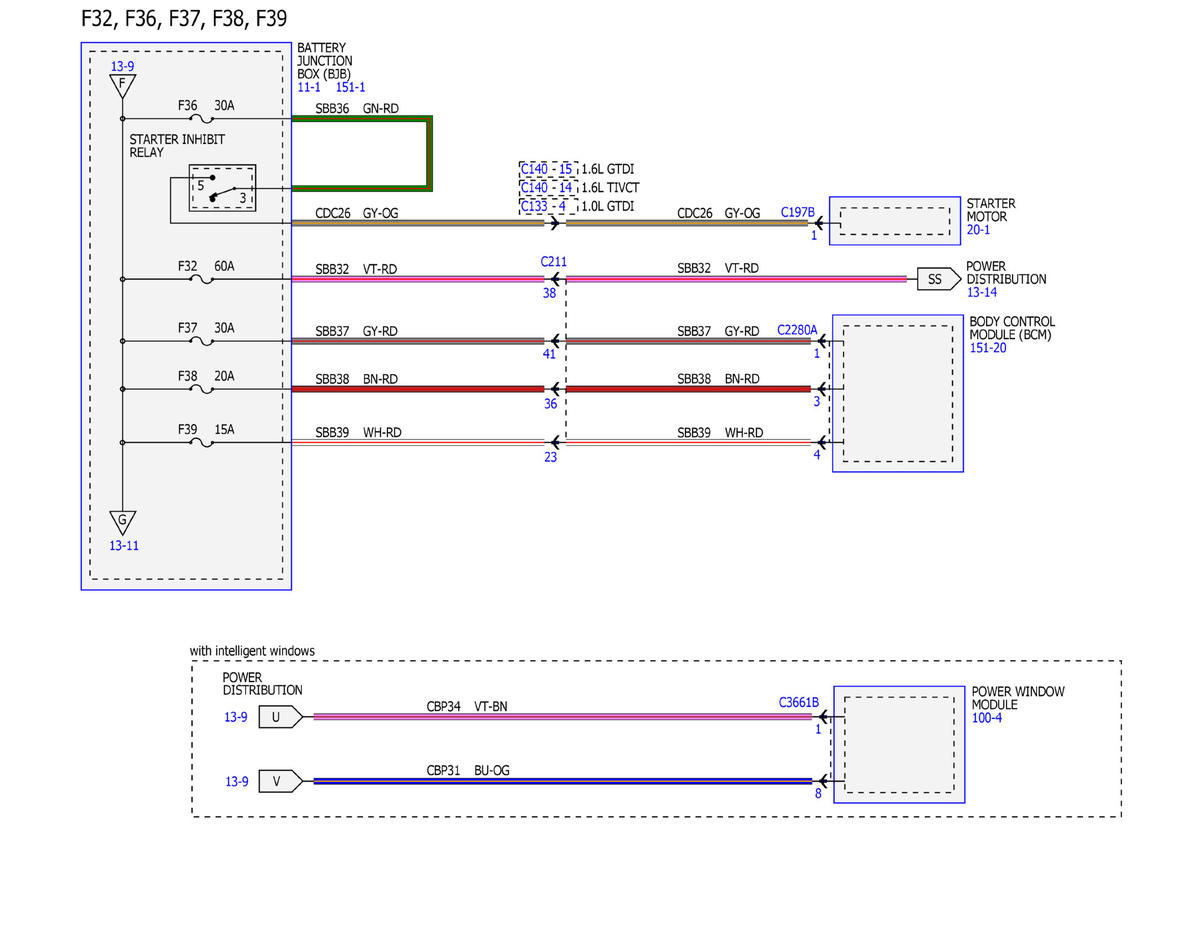

Fig 24: Power Distribution Wiring Diagram (24 of 24)

GFDWR17851

Courtesy of FORD MOTOR COMPANY
