Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
- Disconnect and position aside the crankcase ventilation tube.
- Loosen the clamps and remove the air cleaner outlet pipe.
Courtesy of FORD MOTOR COMPANY

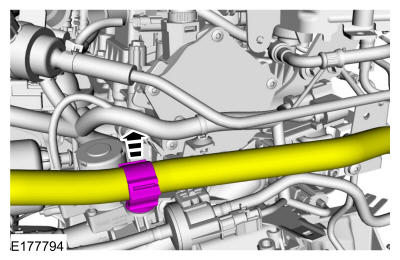

Detach the retainer and position the tube aside.

Courtesy of FORD MOTOR COMPANY

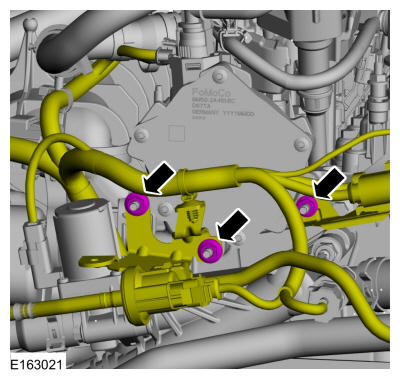

Remove the nuts and position aside the evaporative emission purge valve and mounting bracket.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

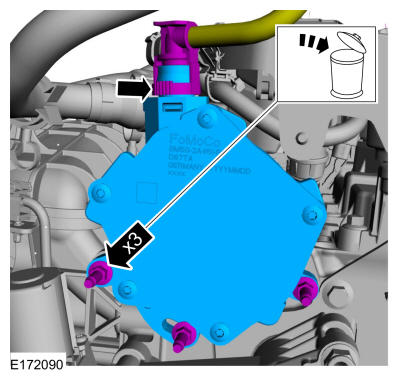

- Release the coupling and disconnect the vacuum tube.
- Remove the bolts and vacuum pump. Discard the bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

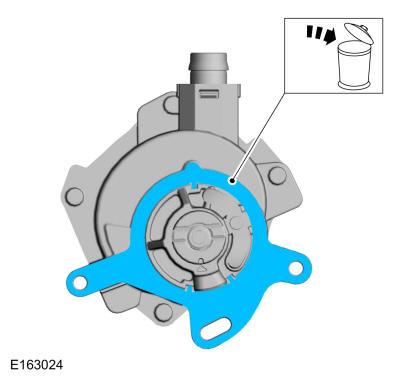

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

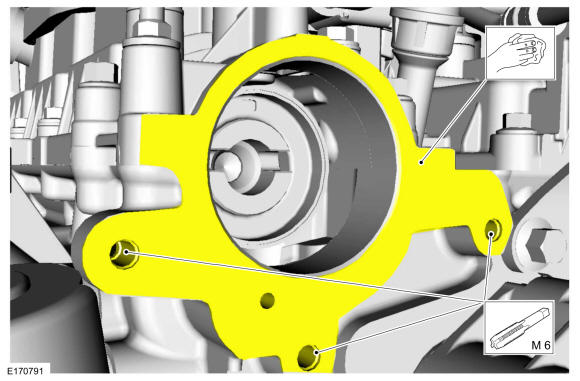

NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.

Clean the mating surfaces and tap the bolt holes.
