Fuel Charging And Controls - Turbocharger - 3.5L ECOBOOST (257KW/350PS)
>>
Description And Operation
>>
Turbocharger - Component Location

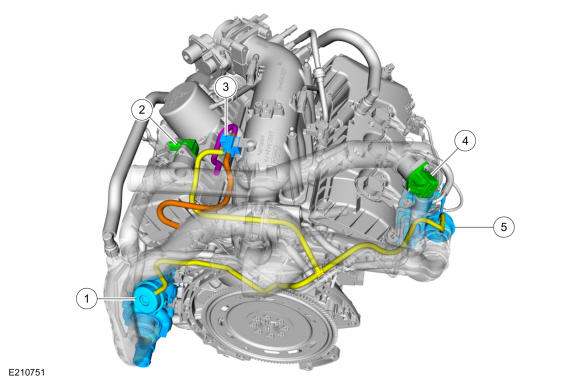

Turbocharger - Component Location
3.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Turbocharger - left
2
Turbocharger bypass valve - left
3
Wastegate control valve solenoid
4
Turbocharger bypass valve - right
5
Turbocharger - right
