Brake Pedal Control Switch: Removal

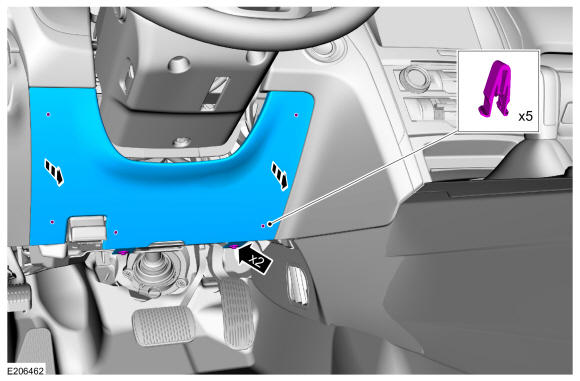

  1. Remove the screws, detach the clips and remove the instrument panel lower steering column cover.
    GFD330343Courtesy of FORD MOTOR COMPANY

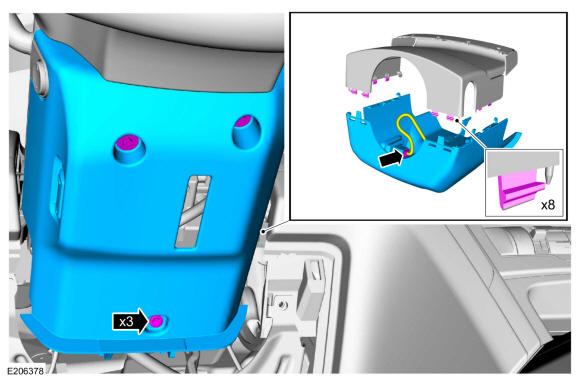

  2. Remove the screws, detach the upper steering column shroud, disconnect the electrical connector and remove the lower steering column shroud.
    GFD330368Courtesy of FORD MOTOR COMPANY

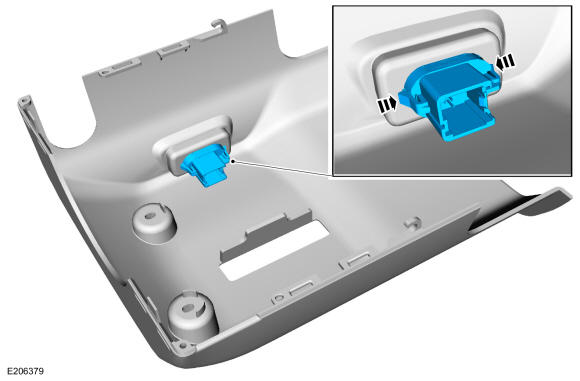

  3. Press inward on the tabs and remove the brake pedal control switch.
GFD330369Courtesy of FORD MOTOR COMPANY
