Brake Master Cylinder: Removal

NOTE: Removal steps in this procedure may contain installation details.

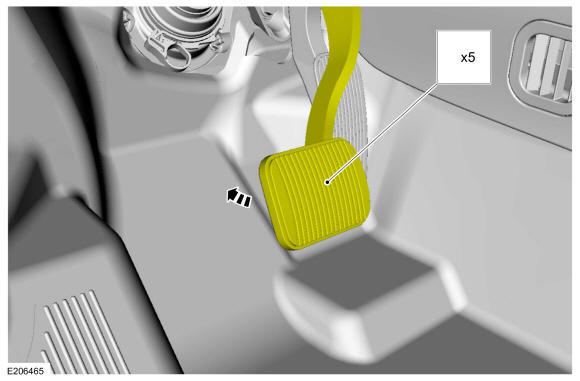

With the engine off, press the brake pedal 5 times to deplete the brake booster vacuum.

Courtesy of FORD MOTOR COMPANY
Remove the battery. Refer to: Battery .
Remove the air cleaner outlet pipe. For 2.3L, Refer to: Air Cleaner Outlet Pipe . For 3.5L GTDI, Refer to: Air Cleaner Outlet Pipe . For 3.5L/3.7L TiVCT, Refer to: Air Cleaner Outlet Pipe .

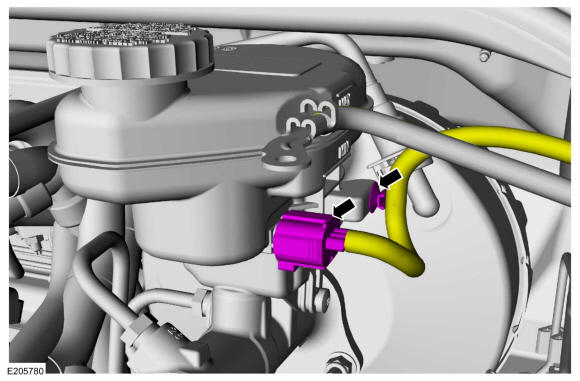

Disconnect the brake fluid level sensor and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Make sure all openings are sealed.

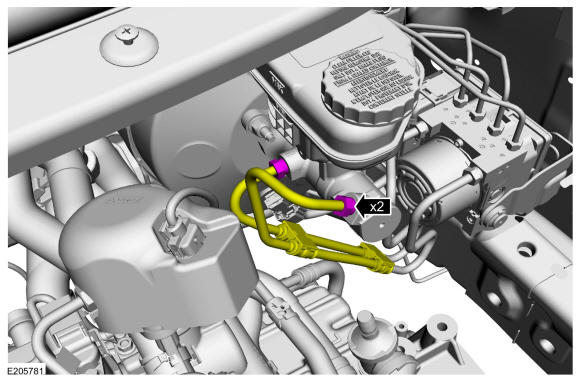

Disconnect the brake tubes.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the master cylinder-to-brake booster seal is removed with the master cylinder.

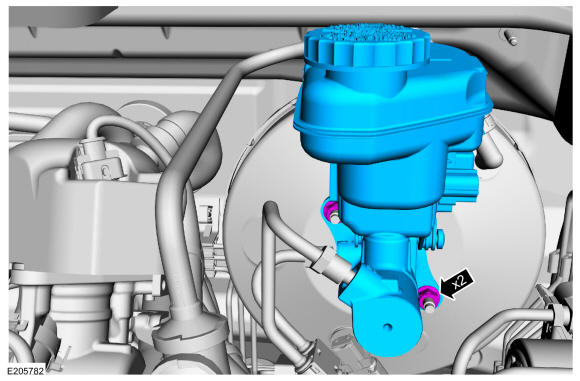

Remove the nuts and the brake master cylinder.

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
