Instrument Cluster

Fig 1: Instrument Cluster Wiring Diagram (1 Of 6)
GFDWR13853Courtesy of FORD MOTOR COMPANY

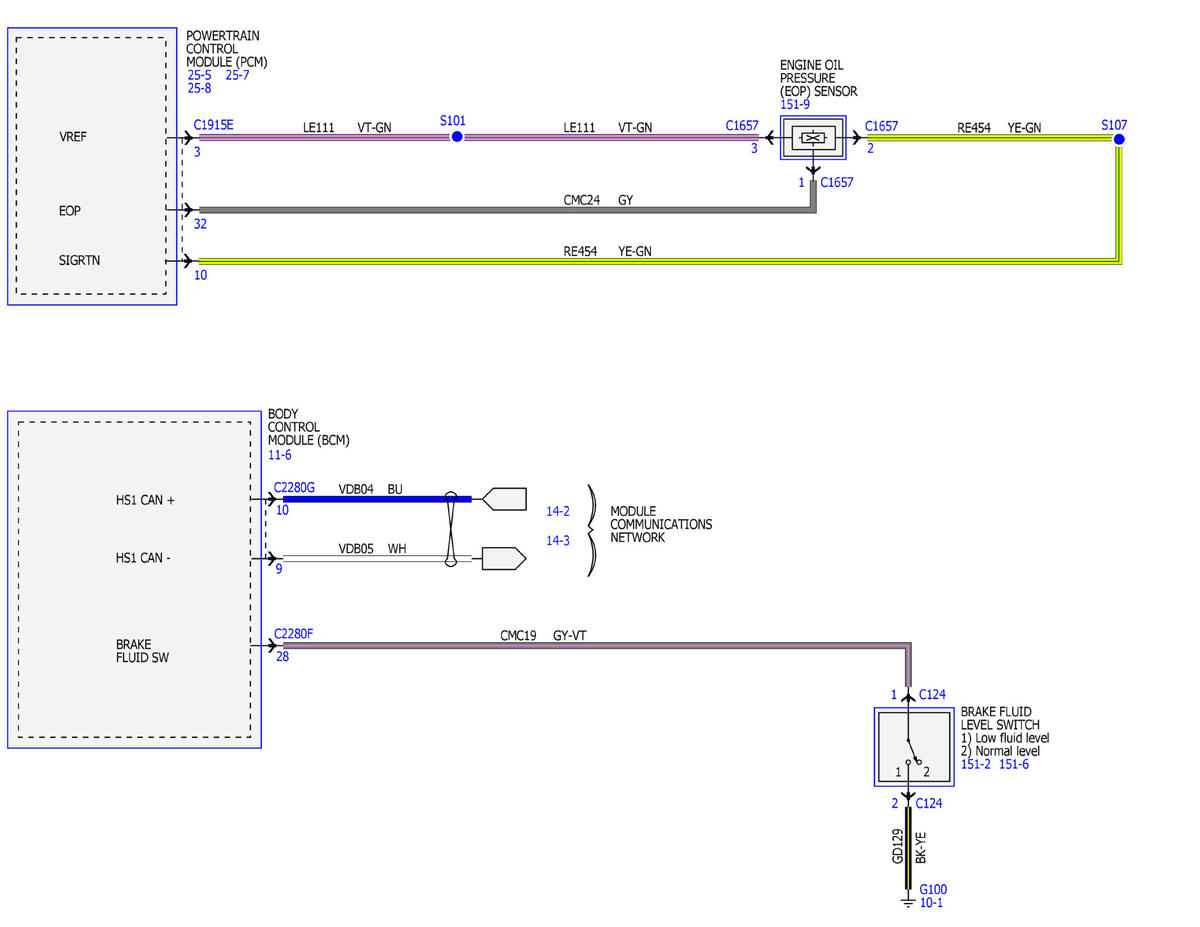

Fig 2: Instrument Cluster Wiring Diagram (2 Of 6)
GFDWR13854Courtesy of FORD MOTOR COMPANY
Fig 3: Instrument Cluster Wiring Diagram (3 Of 6)
GFDWR13855Courtesy of FORD MOTOR COMPANY
Fig 4: Instrument Cluster Wiring Diagram (4 Of 6)
GFDWR13856Courtesy of FORD MOTOR COMPANY
Fig 5: Instrument Cluster Wiring Diagram (5 Of 6)
GFDWR13857Courtesy of FORD MOTOR COMPANY

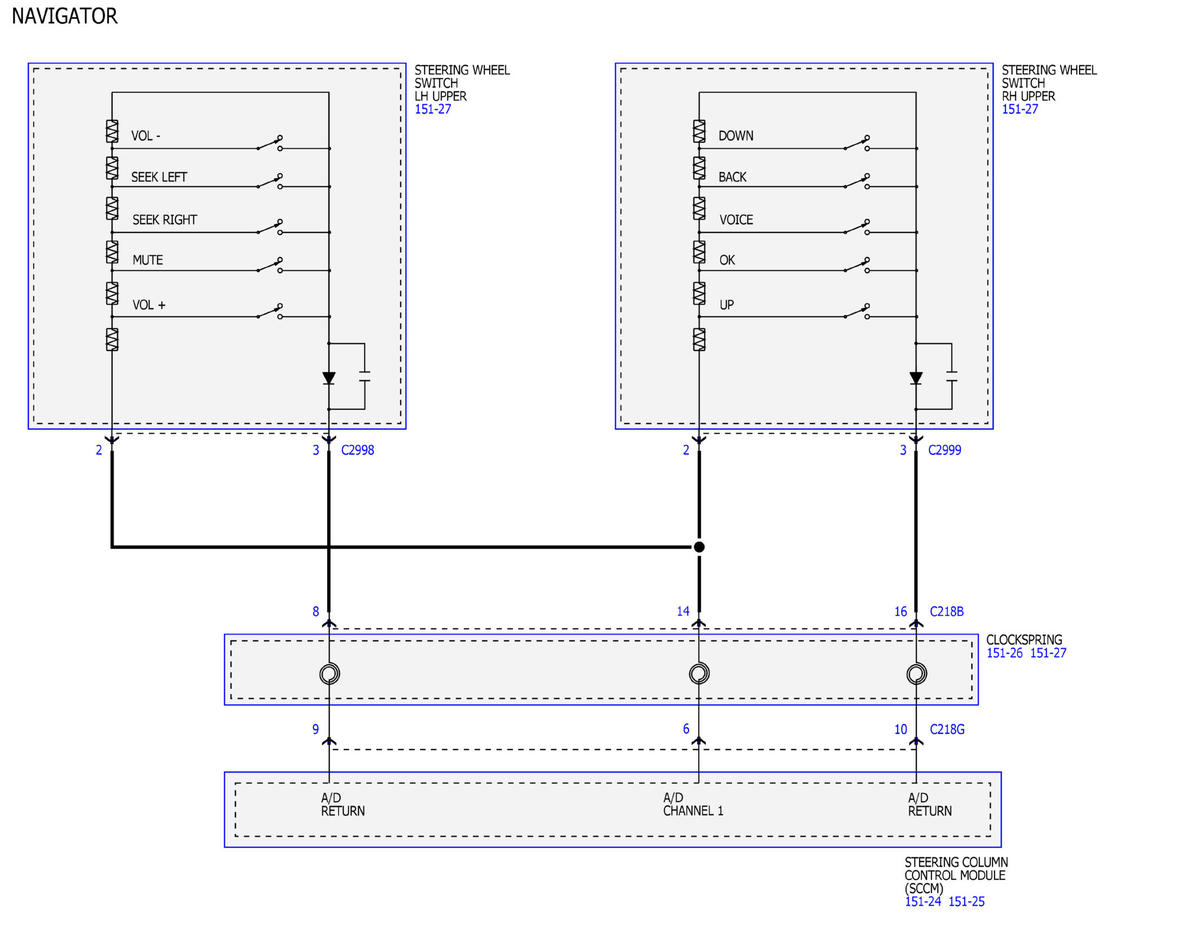

Fig 6: Instrument Cluster Wiring Diagram (6 Of 6)
GFDWR13858Courtesy of FORD MOTOR COMPANY
