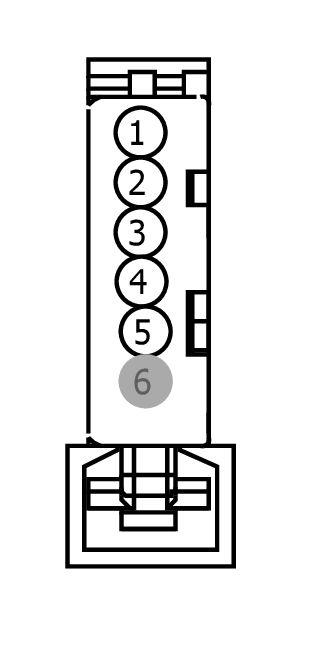

Connector End View (C3466) - ACTIVE PARK ASSIST SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3466	ACTIVE PARK ASSIST SWITCH	14B079			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	9U5T-14474-LA
2	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)	9U5T-14474-LA
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-LA
4	CMP18 (GN-BN)	22	SWITCH - PARKING AID	9U5T-14474-LA
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1553

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ZA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Switch - Hazard Warning
• Switch - Lane Keeping System
• Switch - Start/Stop
